B12 BM

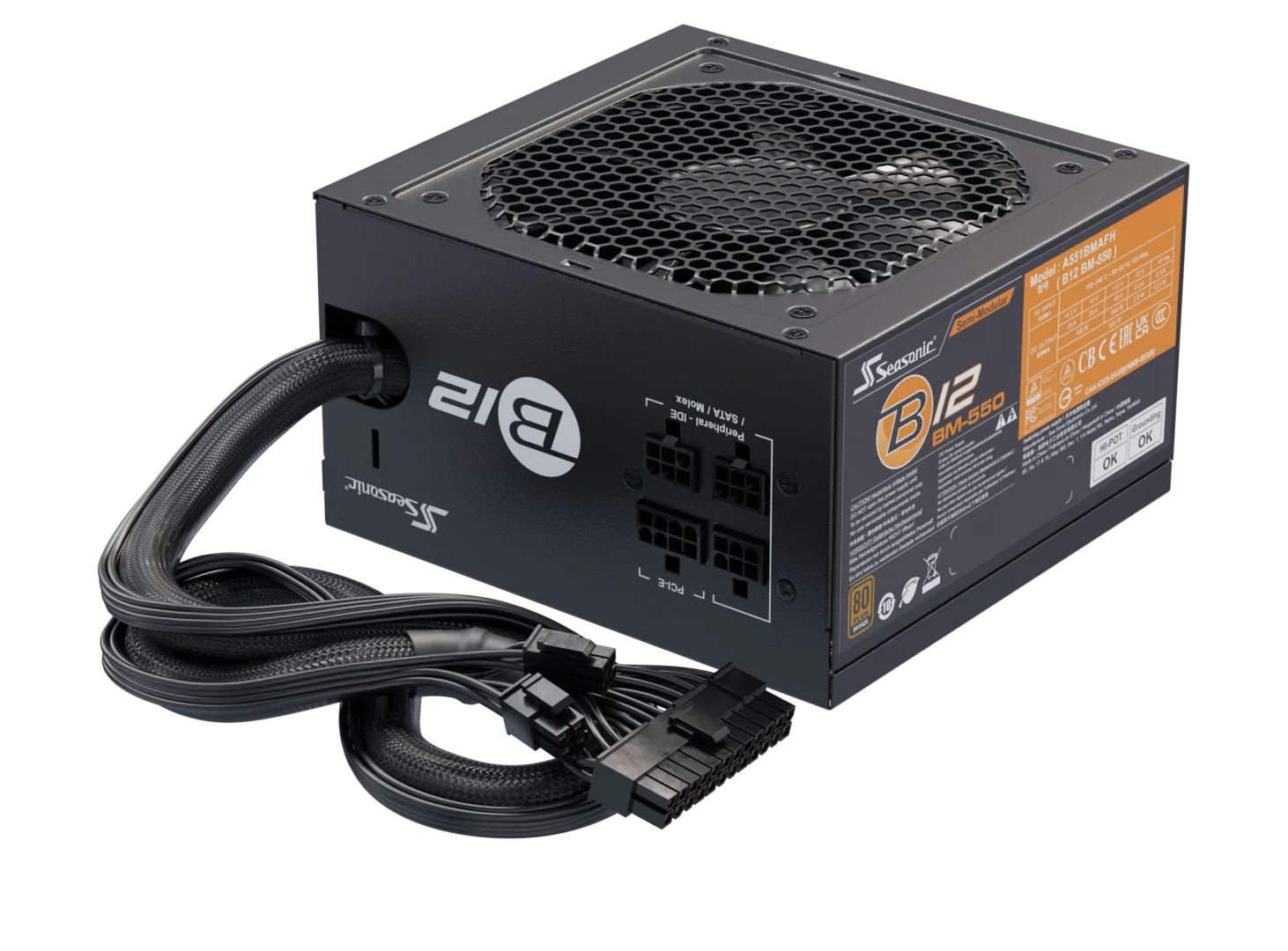

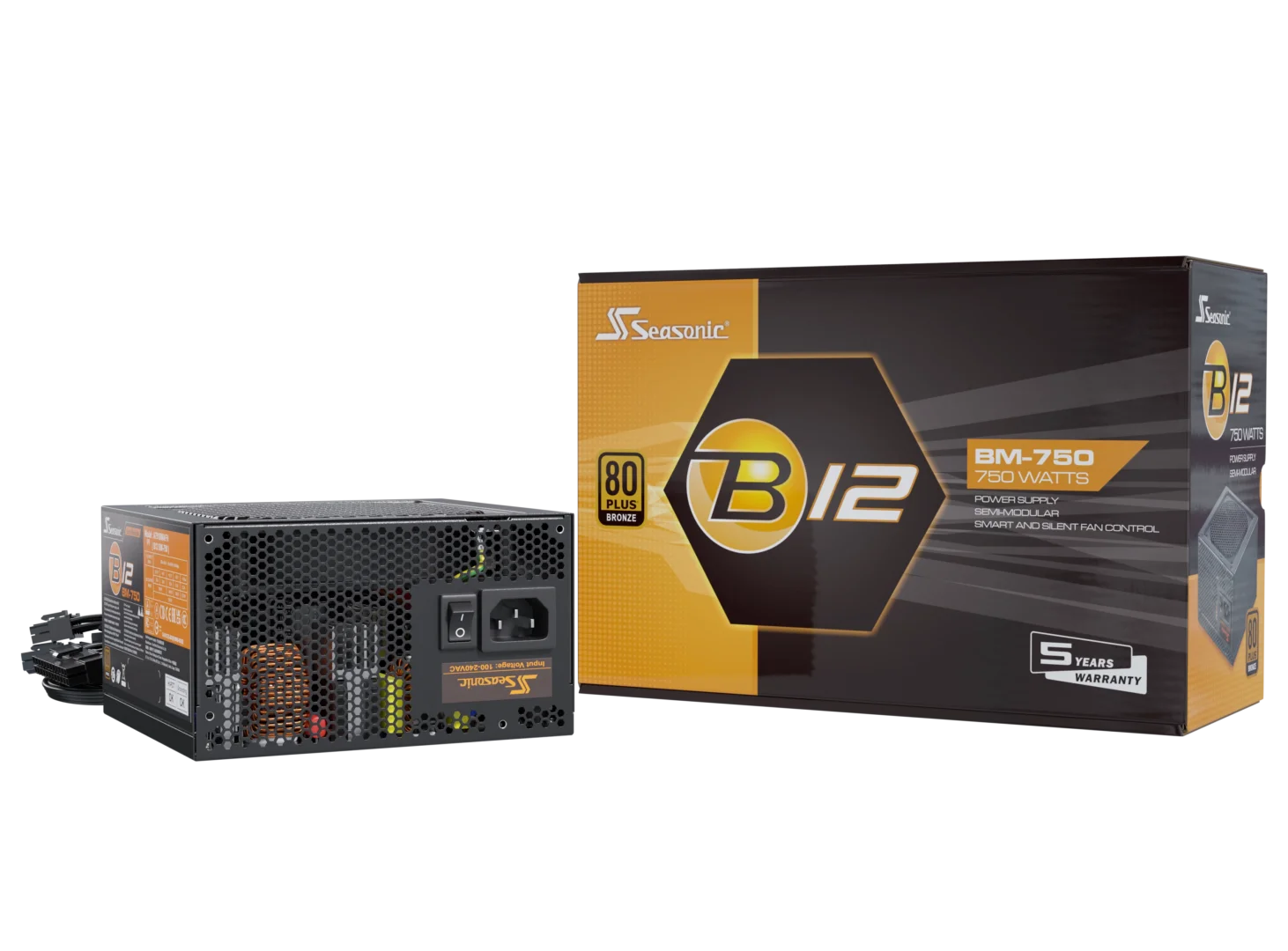

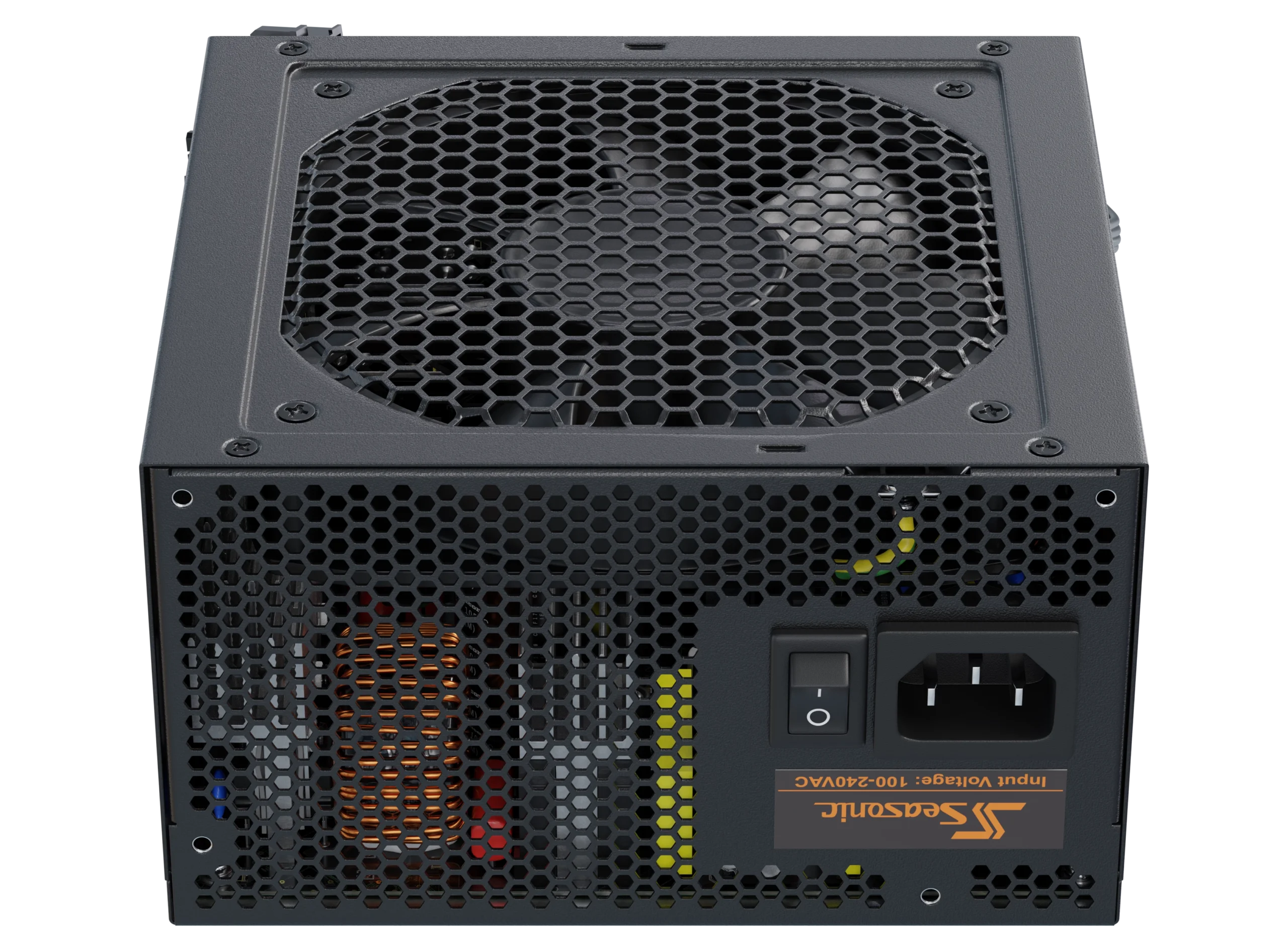

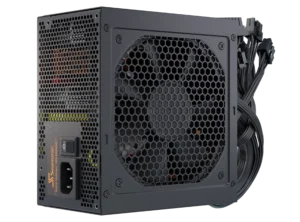

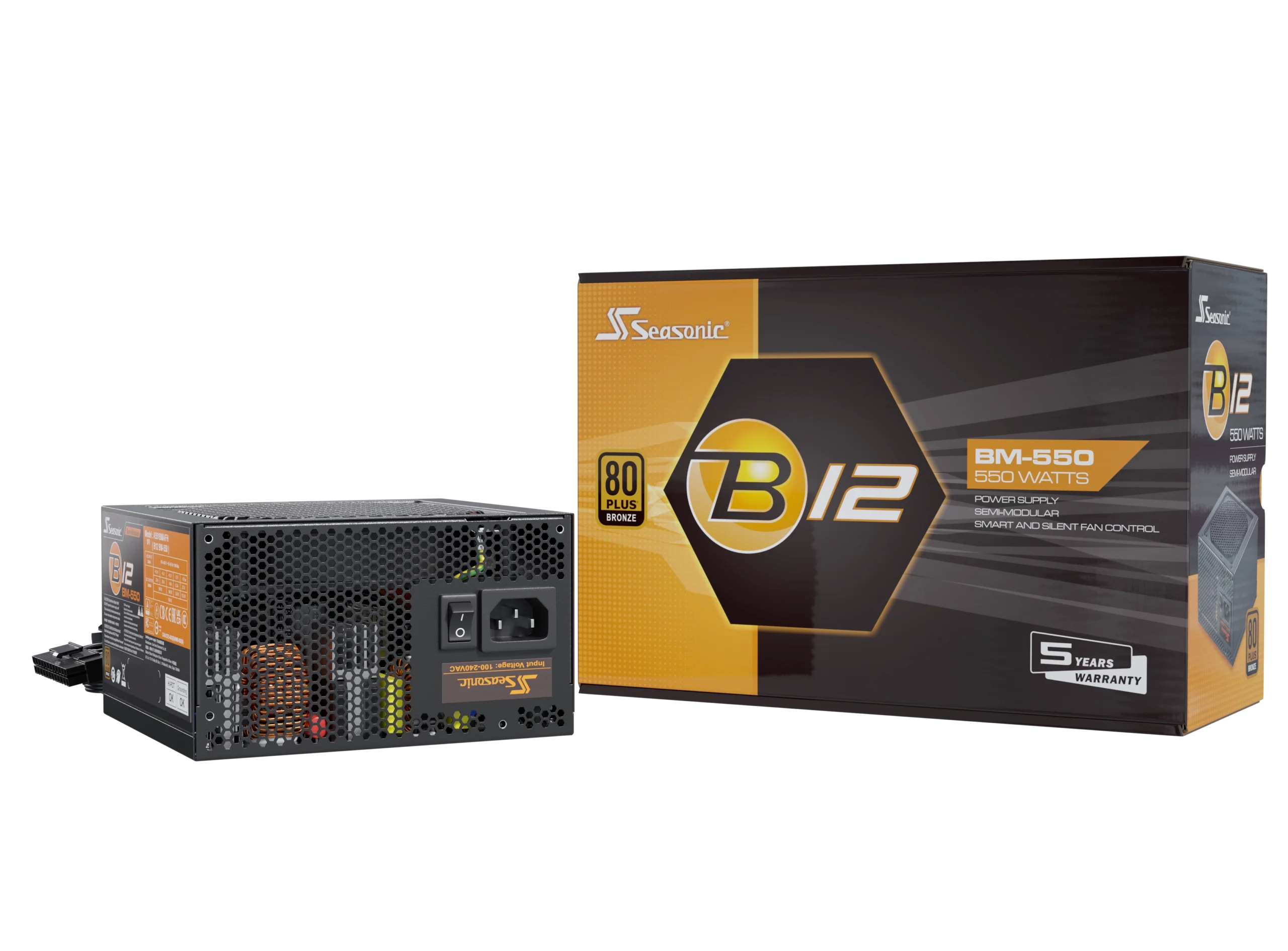

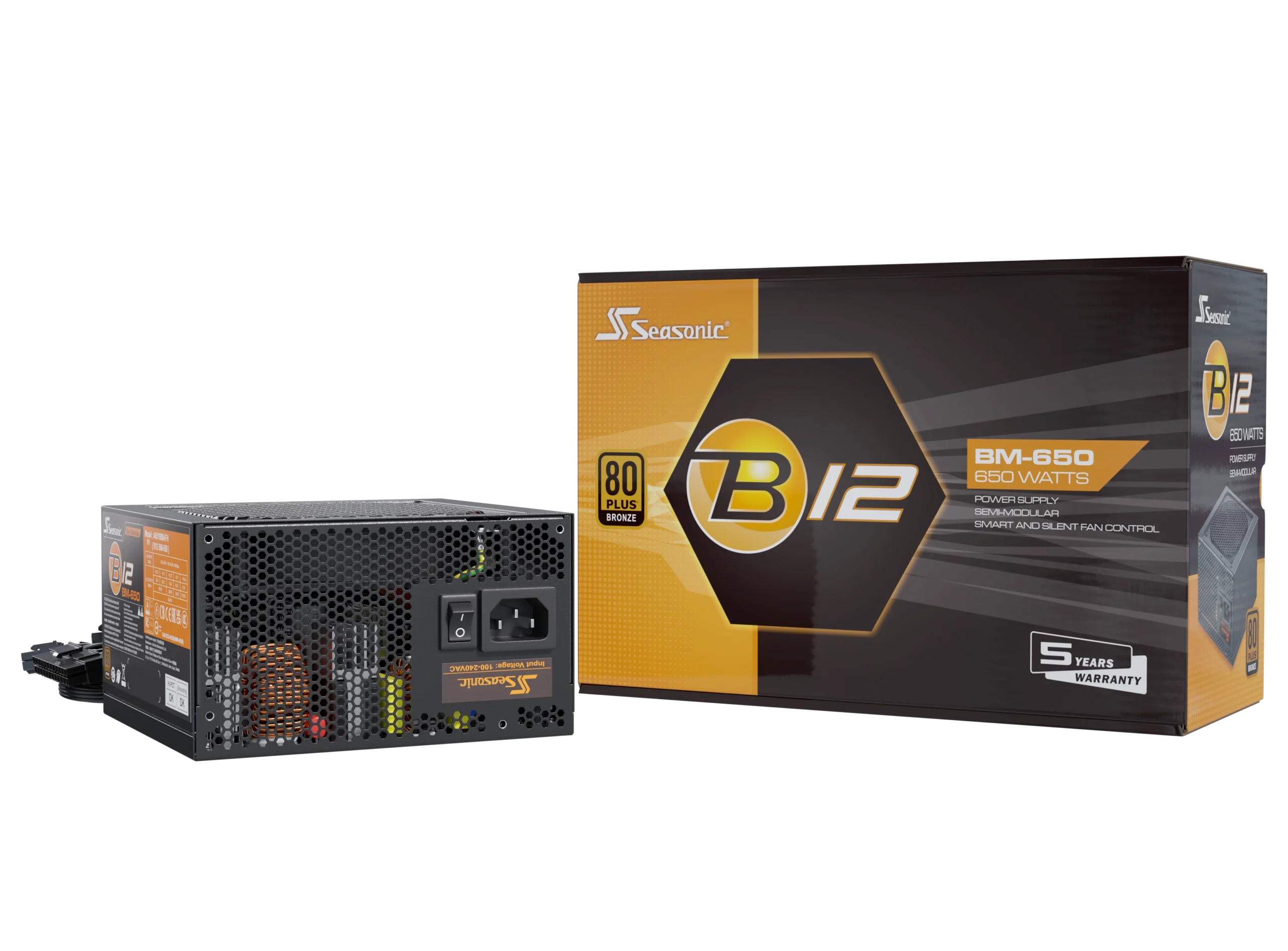

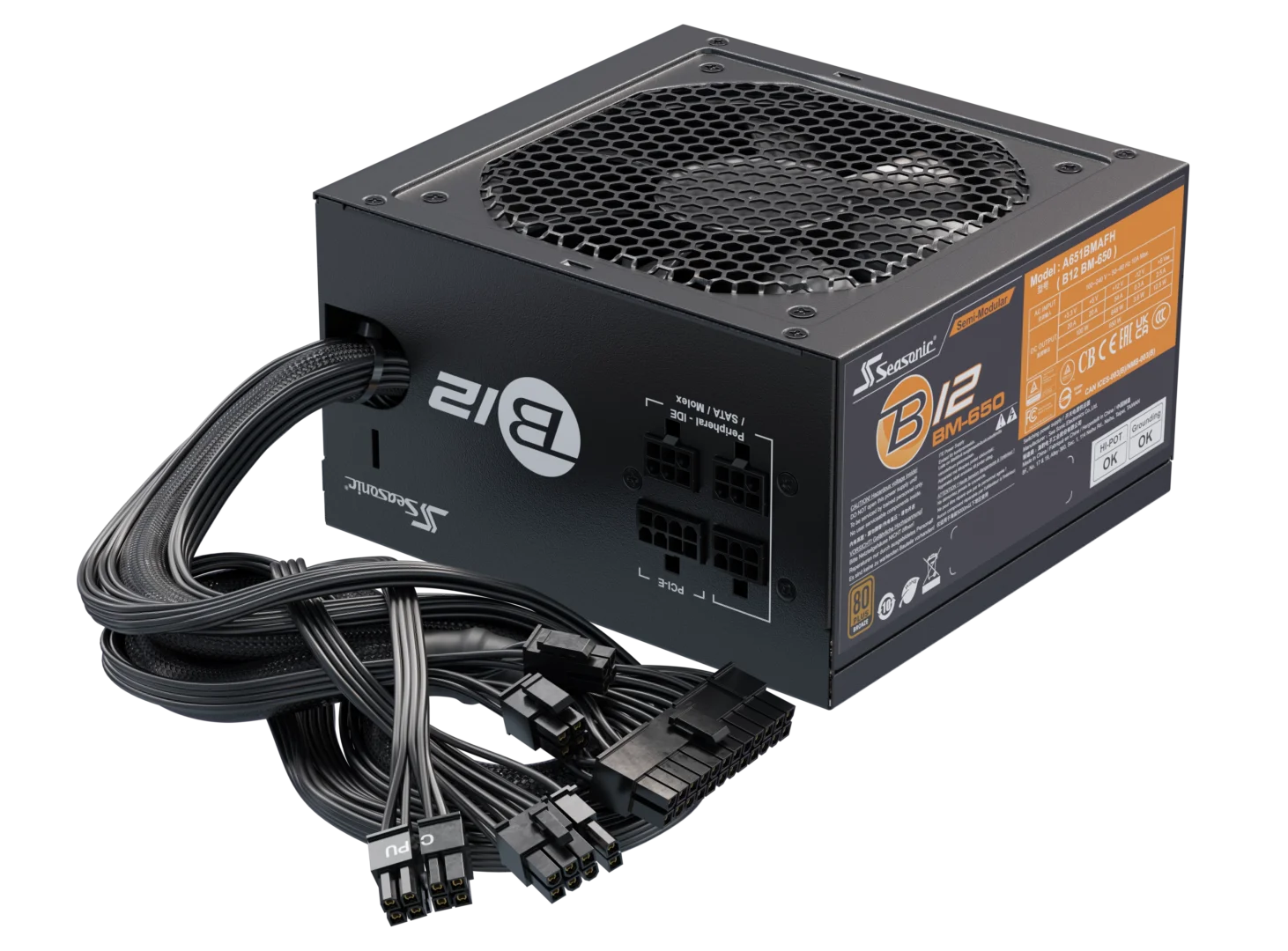

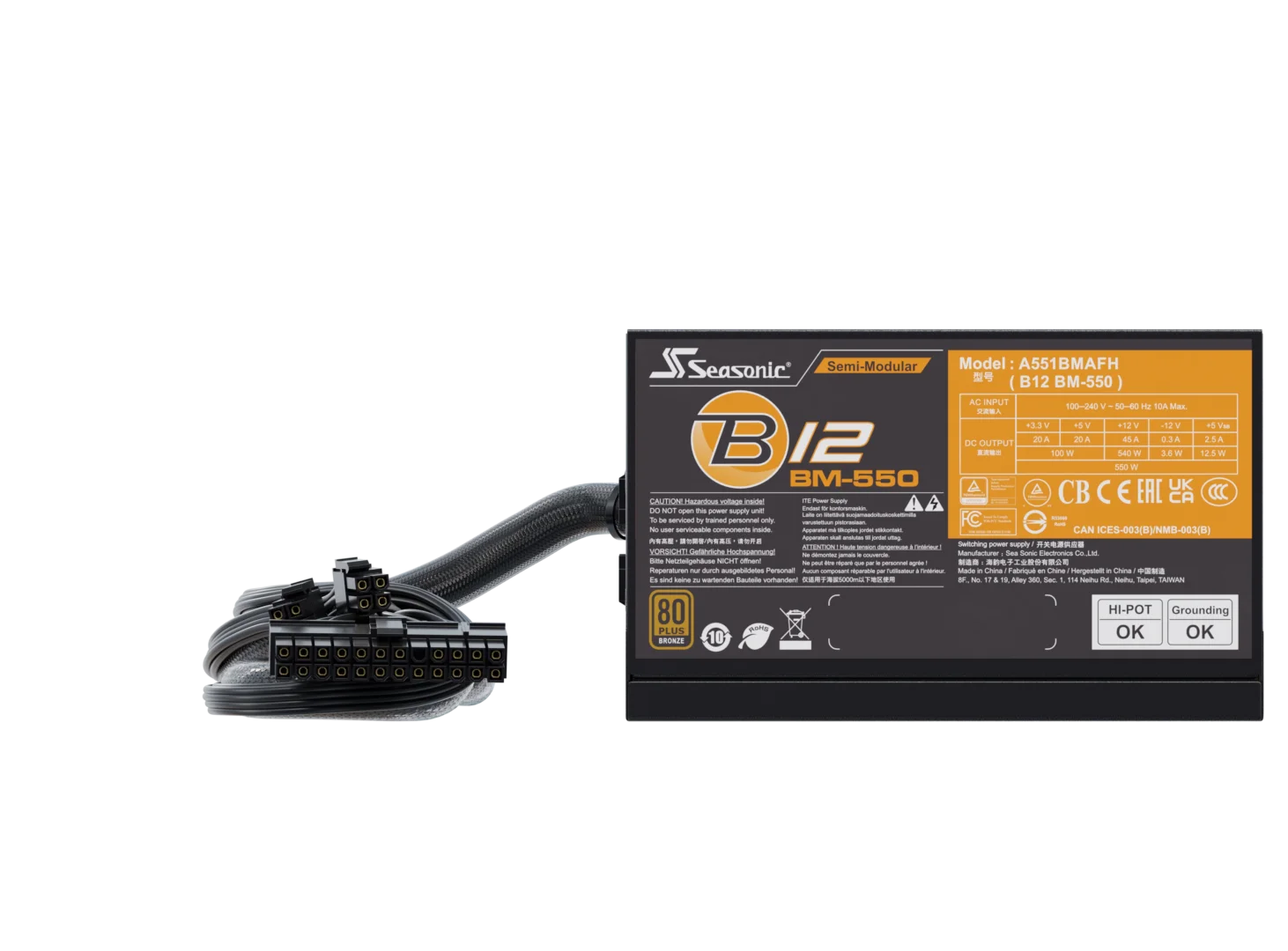

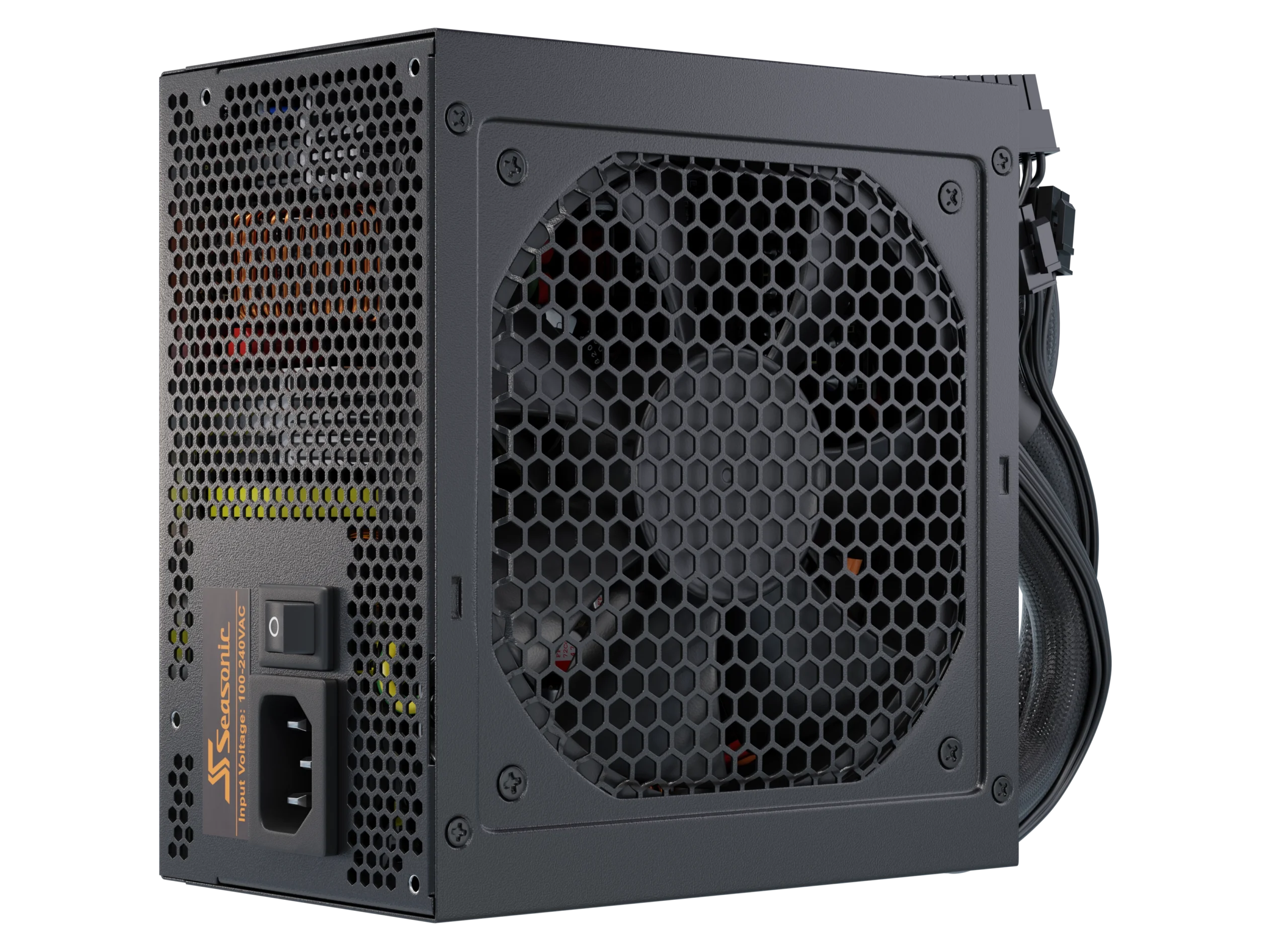

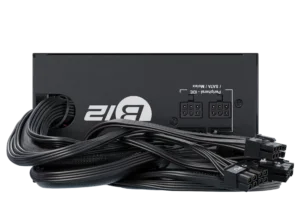

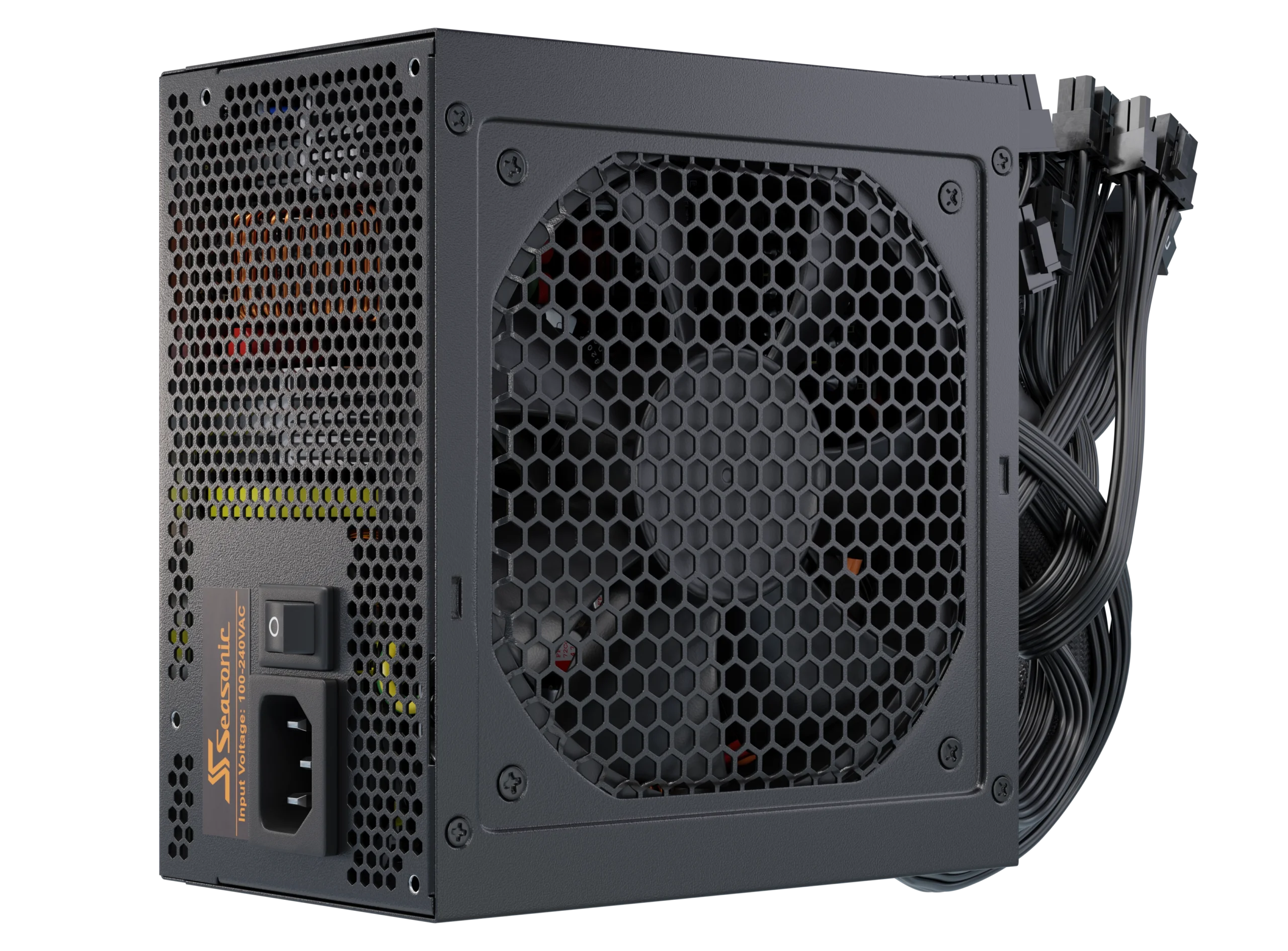

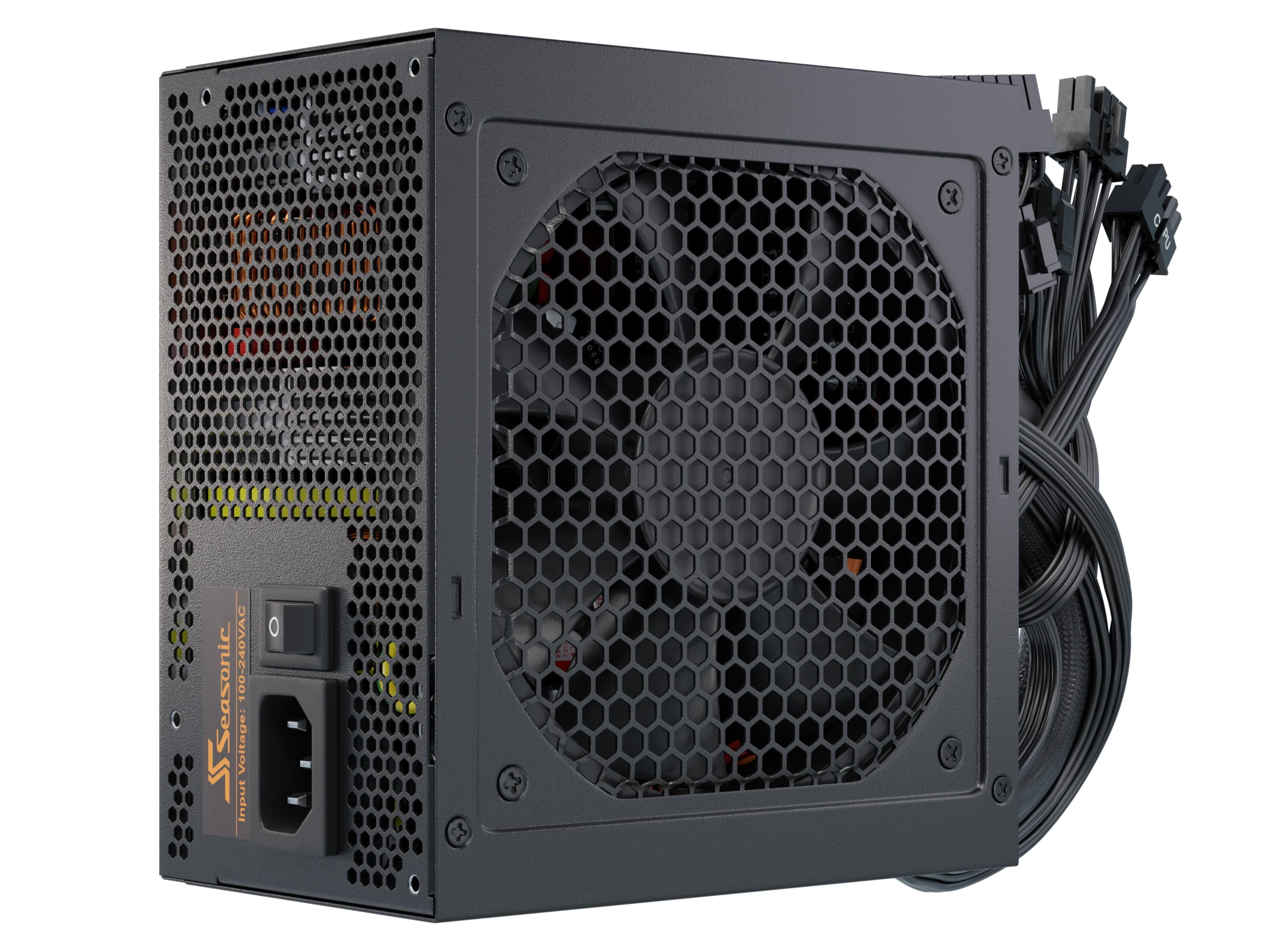

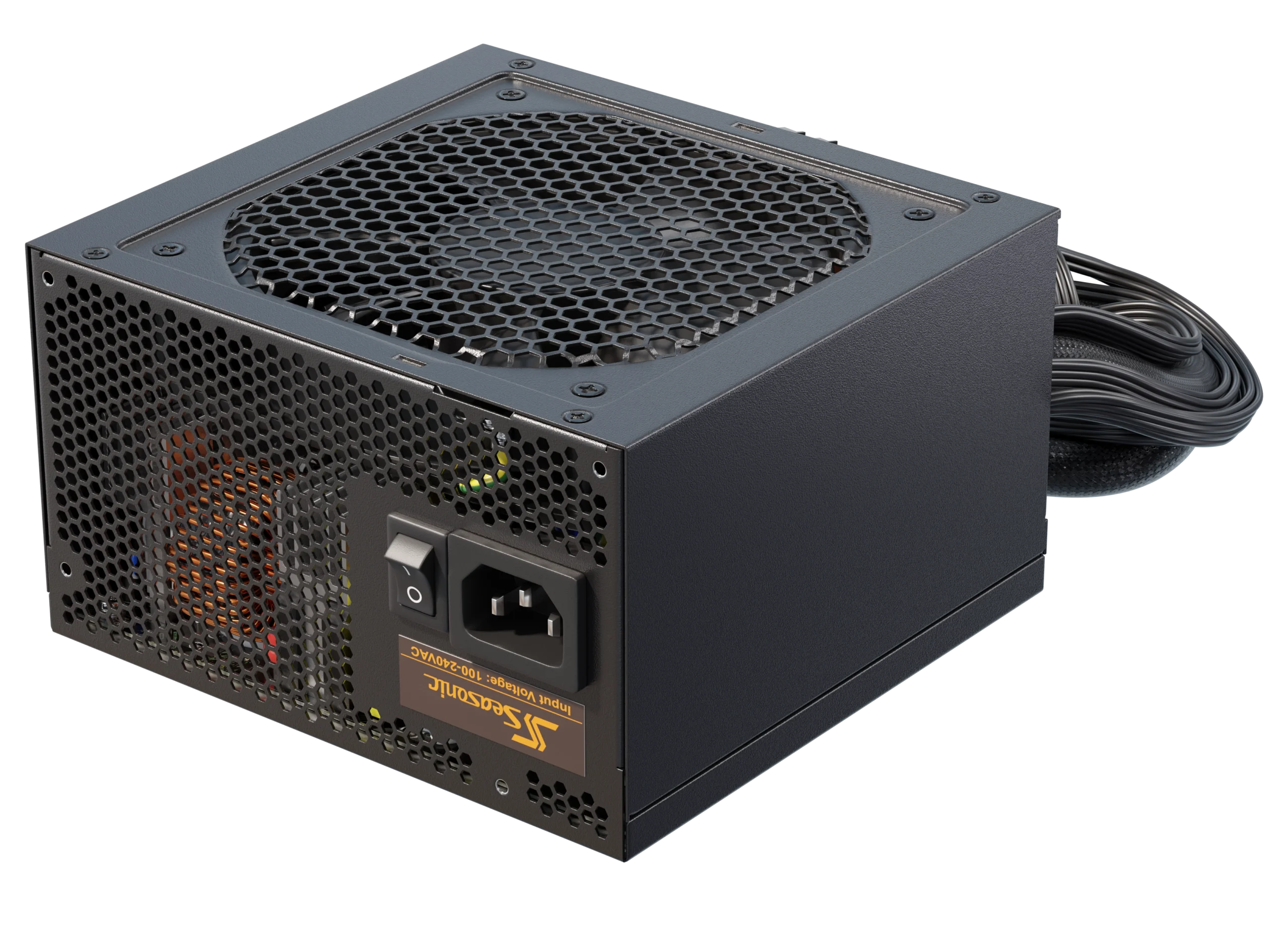

B12 BM Series

The B12 BM Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic B12 BM achieves 80 PLUS® Bronze standard of providing at least 82 %, 85 % and 82 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the B12 BM series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the B12 BM units utilize the LLC resonant converter design, and the industry’s leading Smart and Silent Fan Control (S2FC).

  • ATX 12 V

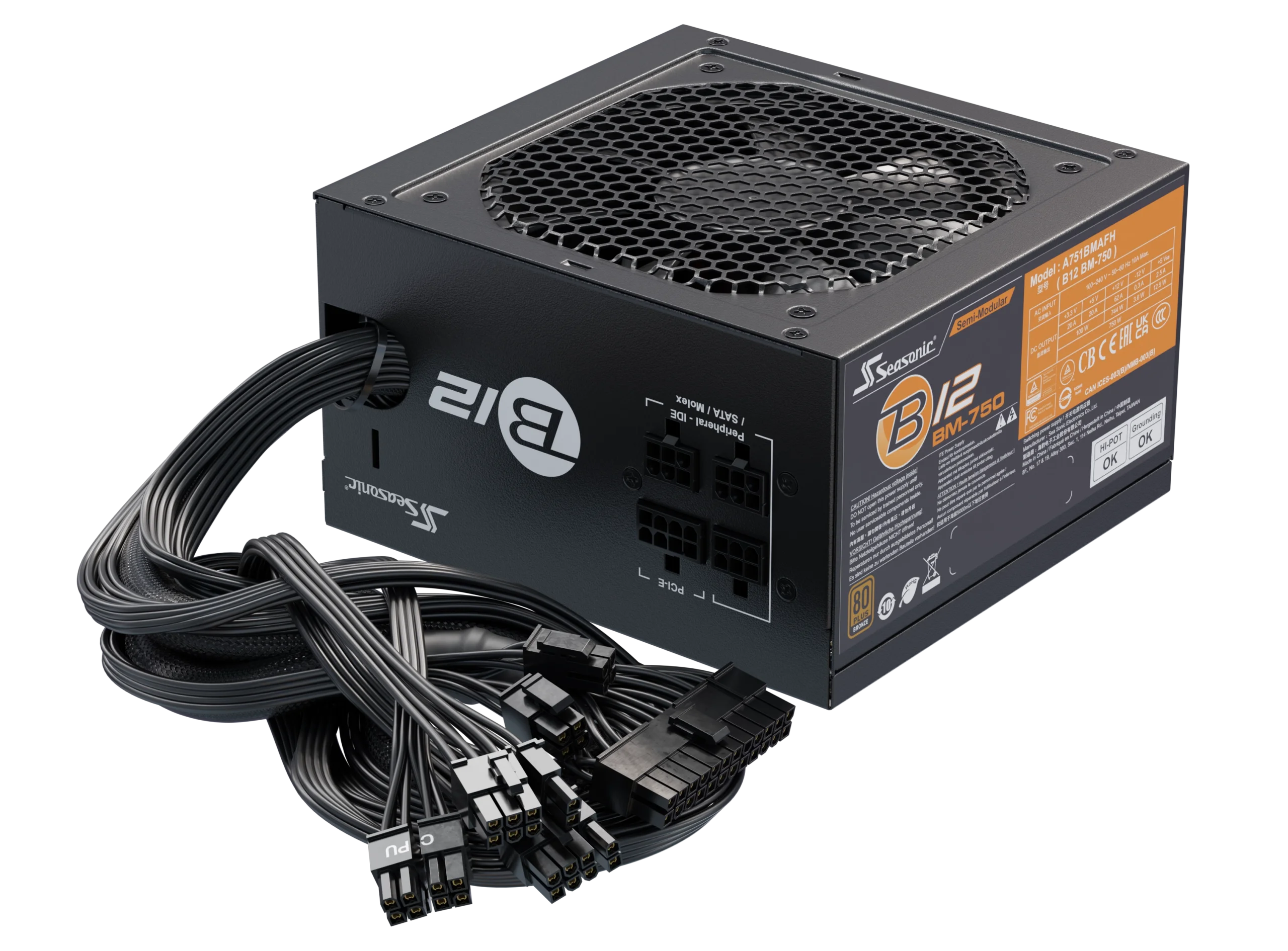

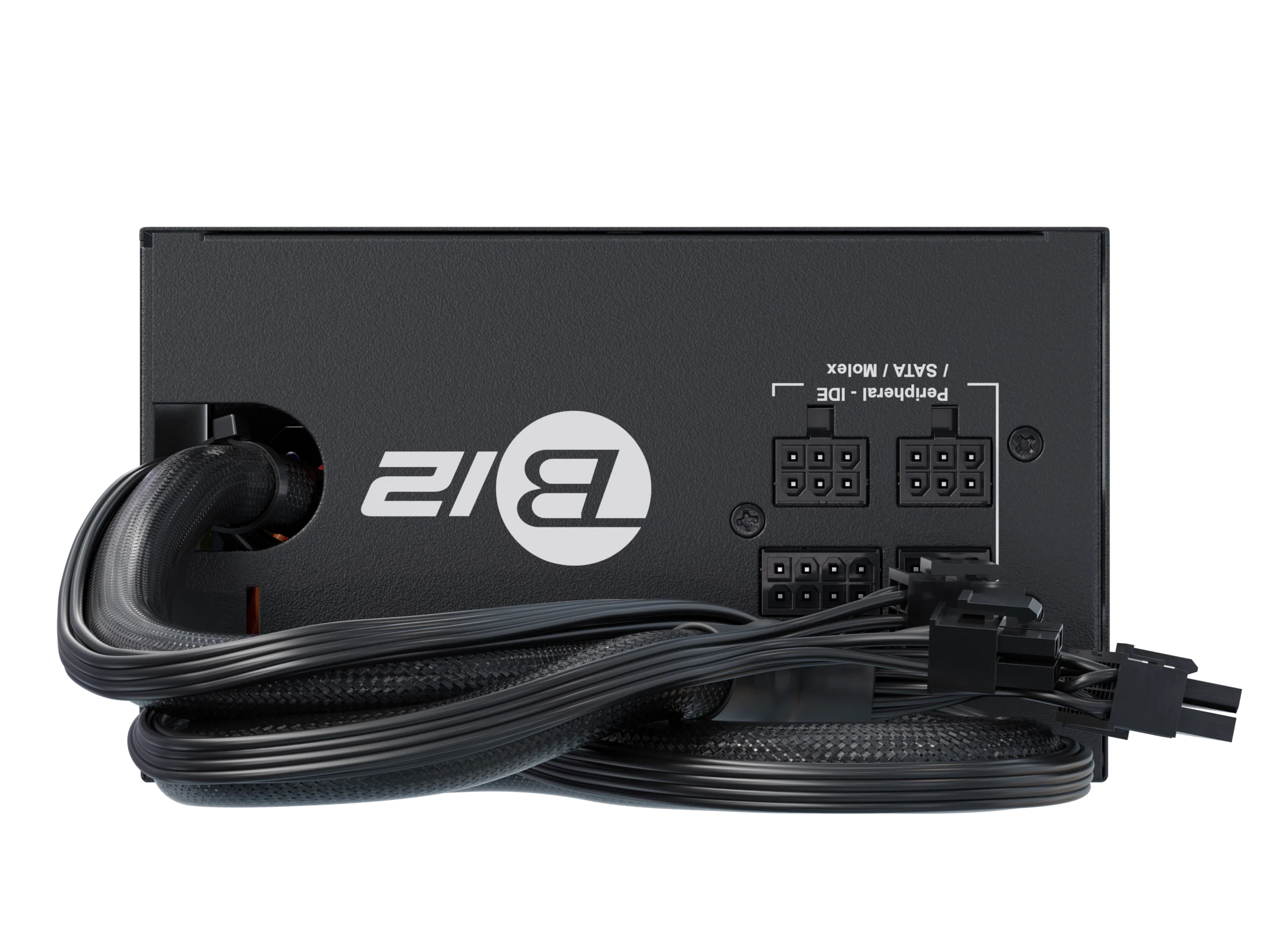

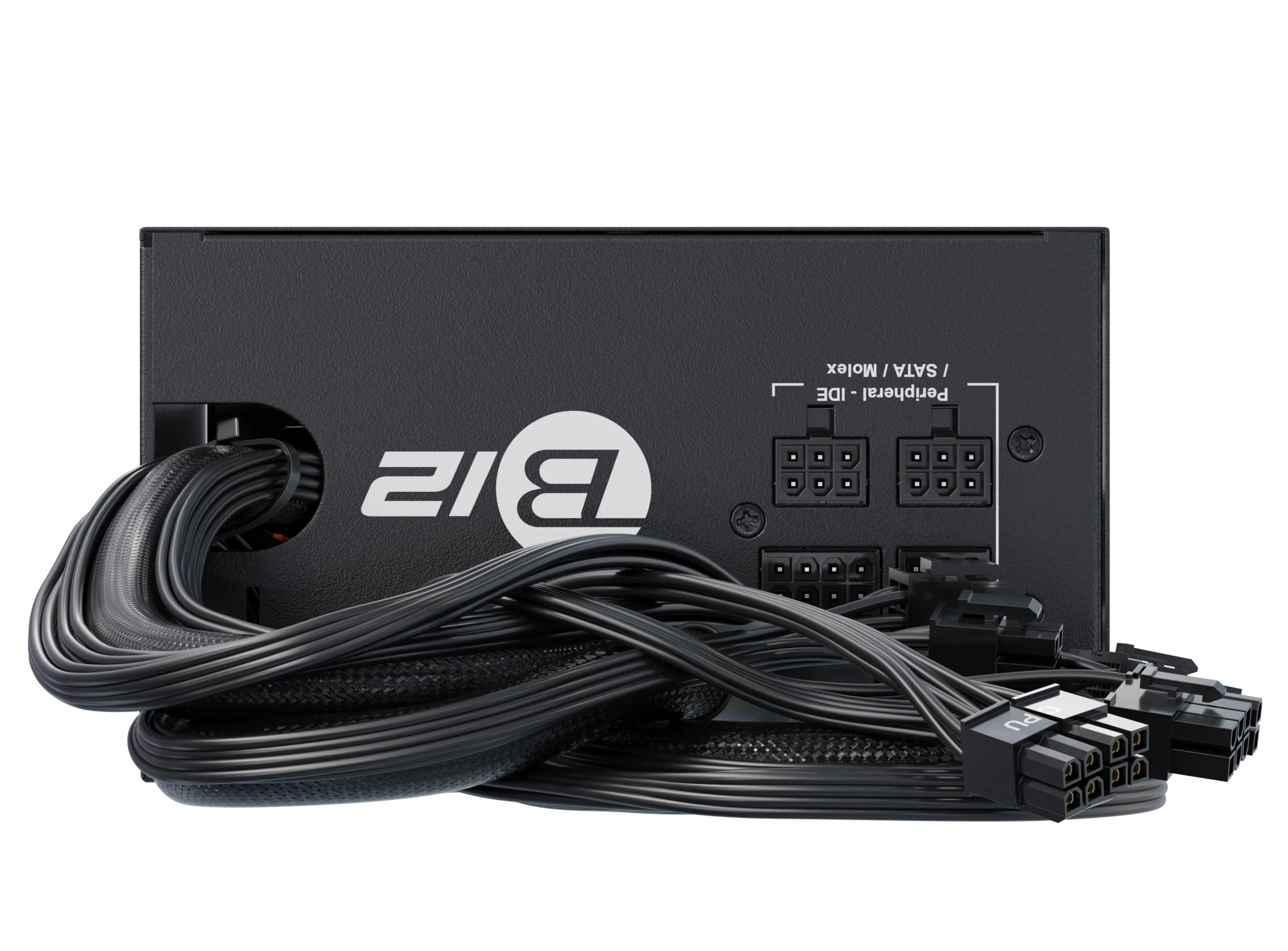

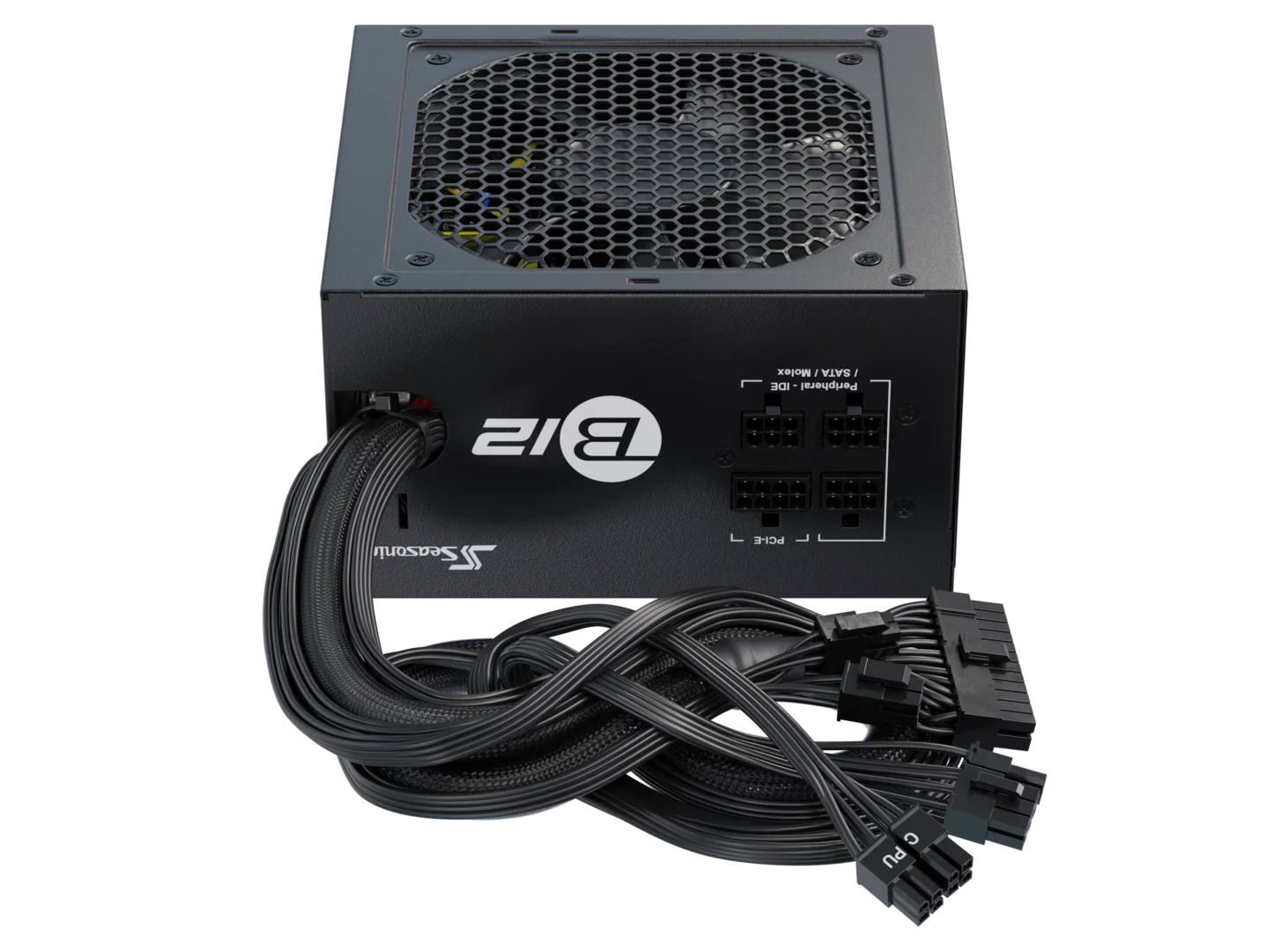

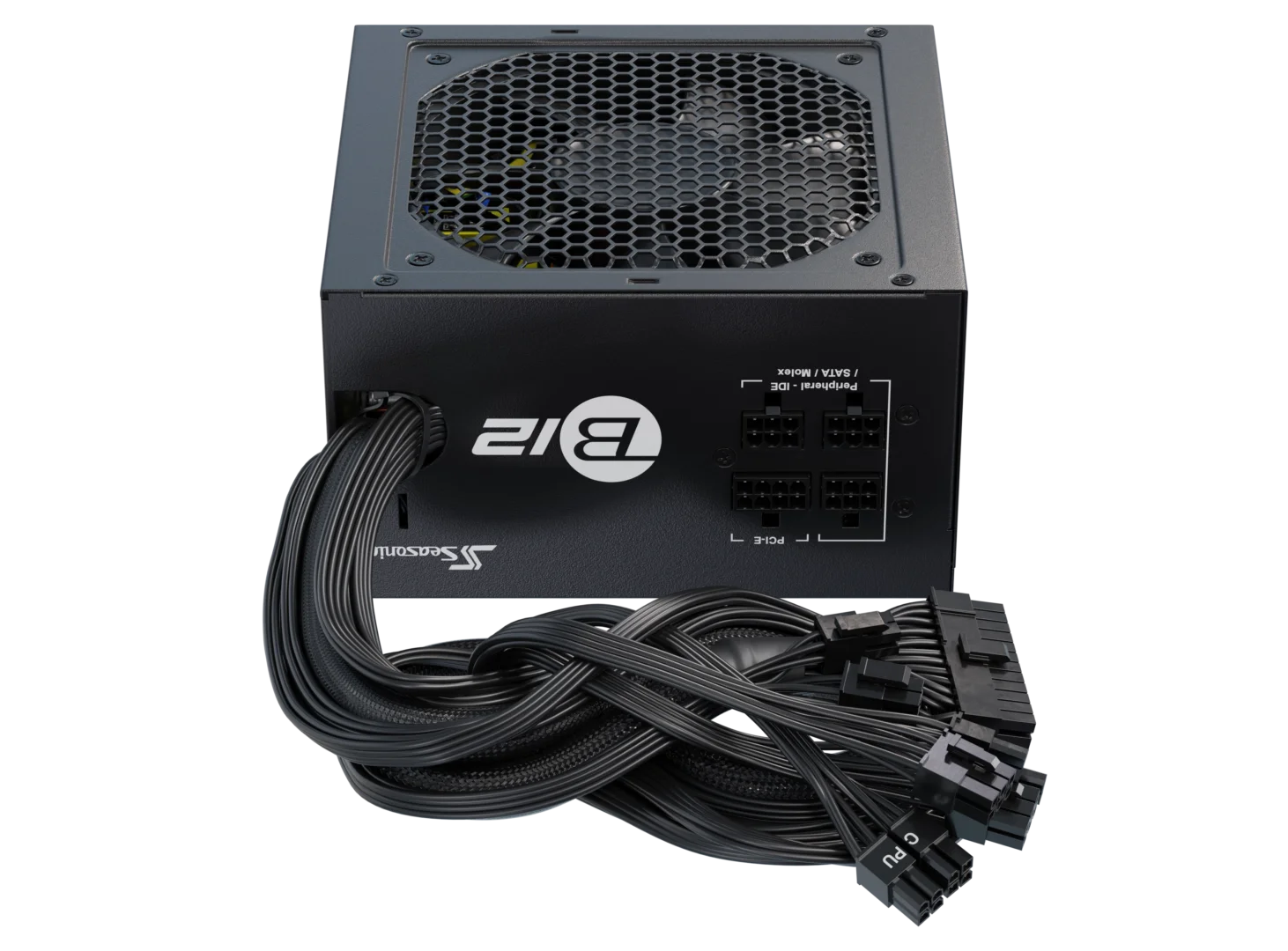

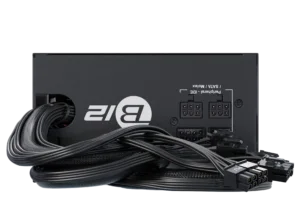

  • Semi-modular cables
  • 80 PLUS Bronze Certified
  • 5 Years Warranty
  • Dimensions: 140 mm (L) x 150 mm (W) x 86 mm (H)



wattage calculator Compare products

Overview

80 PLUS®Bronze

The 80 PLUS® Bronze certification indicates that a high percentage of the electricity is converted into useful power, therefore there is less heat lost and more money saved on the electricity bill.

The 80 PLUS® Bronze certification guarantees greater than 82 %, 85 % and 82 % efficiency at 20 %, 50 % and 100 % operating loads, respectively. Sea Sonic’s B12 BC Series is an economical choice with great performance and high built-in value.

S2FC - Smart and Silent Fan Control

The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.

feature summary

  • 80 PLUS® Bronze certified
  • Semi-modular cables
  • Tight Voltage Regulation
  • S2FC - Smart and Silent Fan Control
  • 5 years warranty

Specifications

B12-BM-850

Technical Specifications
80PLUS® Bronze
Cybenetics Efficiency Level TBA
Cybenetics Noise Level TBA
Form Factor Intel ATX 12 V
Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)

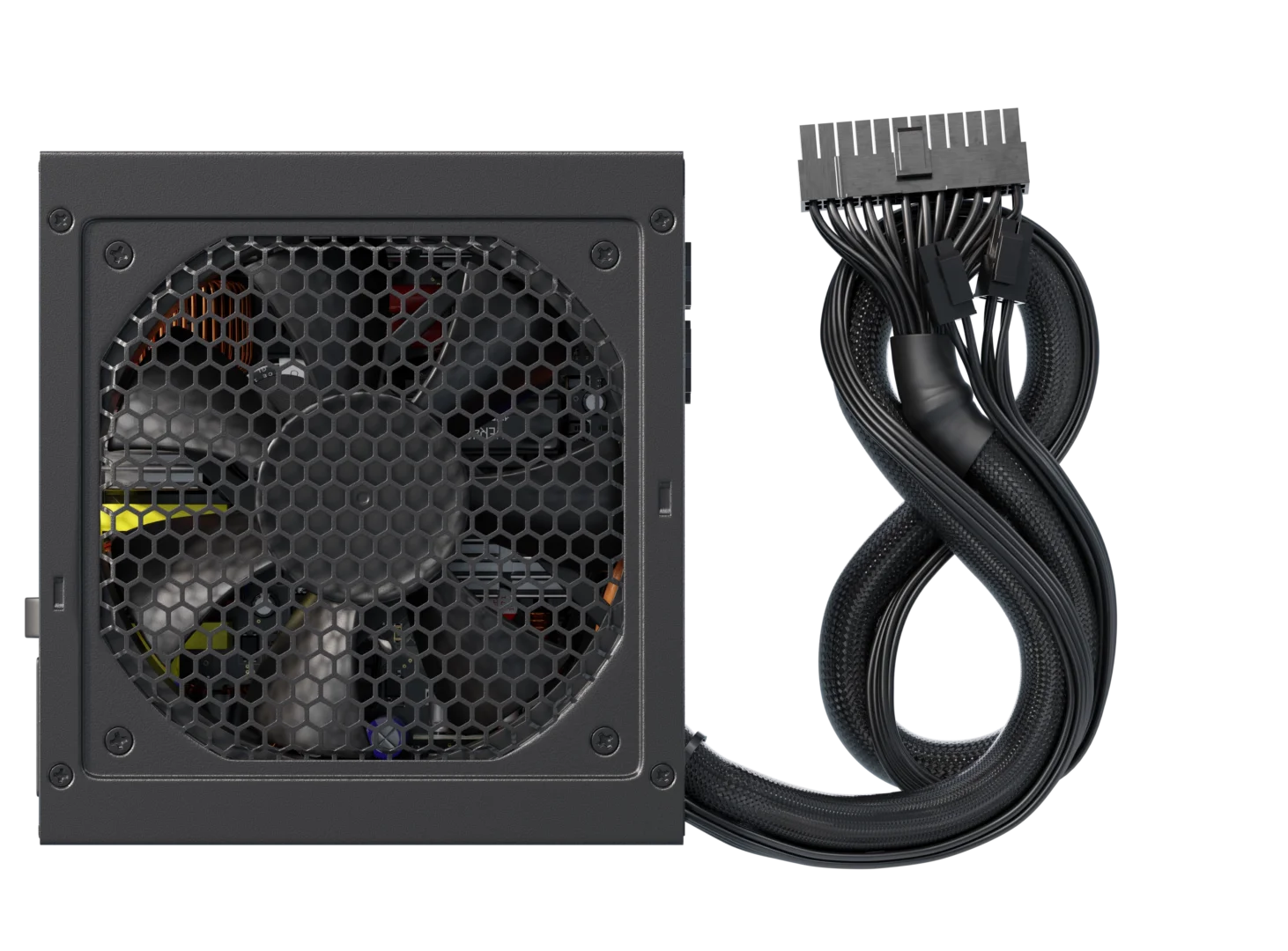

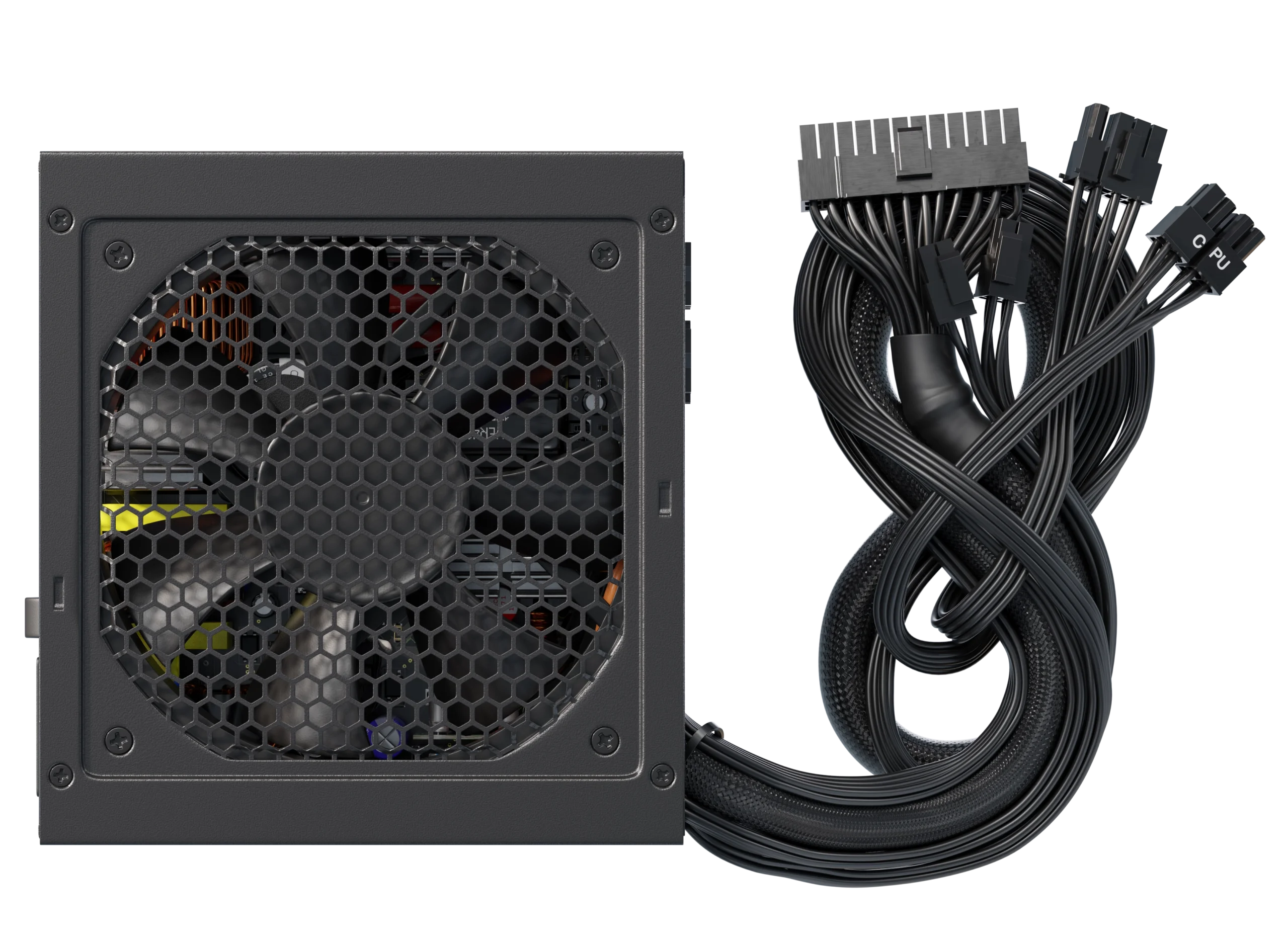

Fan Information Fan Size 120 mm
Fan Control Smart and Silent Fan Control
Fan Bearing Sleeve Bearing
Life Expectancy 25,000 hours at 40 °C, 15 % - 65 % RH
Cable Information Modularity Fixed cables
Cable type Flat black cables
Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF @ 25 °C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, OCP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, CE, FCC
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty 5 Years
Power Output
AC Input Voltage: 100 V - 240 V
Current: 10 A Max.
Frequency: 50 Hz - 60 Hz
DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 20 A 20 A 70 A 0.3 A 2.5 A
100 W 840 W 3.6 W 12.5 W
Total continuous power 850 W

Cables

B12-BM-850

Cable typeConnector(s) per cableTotal length (mm)Number(s) of cable(s) included
MB-610 MB (24/20 pins) 1 550 1
CPU-650 CPU (8/4 pins) 1 600 2
PCIe-750-2x PCIe (8/6 pins) 2 700 0
PCIe-750-1x PCIe (8/6 pins) 1 550 3
SATA-810-4x-90 SATA 4 810 0
SATA-800-4x-180 SATA 4 860 0
SATA-760-4x-90 SATA 4 760  0
ATA-690-3x SATA 3 720 2
SATA-700-2x-90 SATA 2 700 0
SATA-570-2x-180 SATA 2 600 0
SATA-470-2x-180 SATA 2 470 0
SATA-450-2x-180 SATA 2 450 0
Molex-690-3x Molex 3 690 1
Molex-470-2x Molex 2 470 0
Molex-to-SATA-3-3-300 Molex to SATA 3.3 Adapter 2 300 0
Molex-to-FDD-101 Molex to FDD Adapter 1 101  0

Specifications are subject to change without prior notice.
