MagFlow ARGB 120 mm

The Seasonic MagFlow ARGB Fan is a novel cooling product in terms of style and functional modularity. Perfectly positioned, built-in magnetic attachment points connect the fan sides easily, pin-to-pin with a snap. Hassle-free installation saves time and enhances the look of the PC by eliminating the need to run cables in between fans.

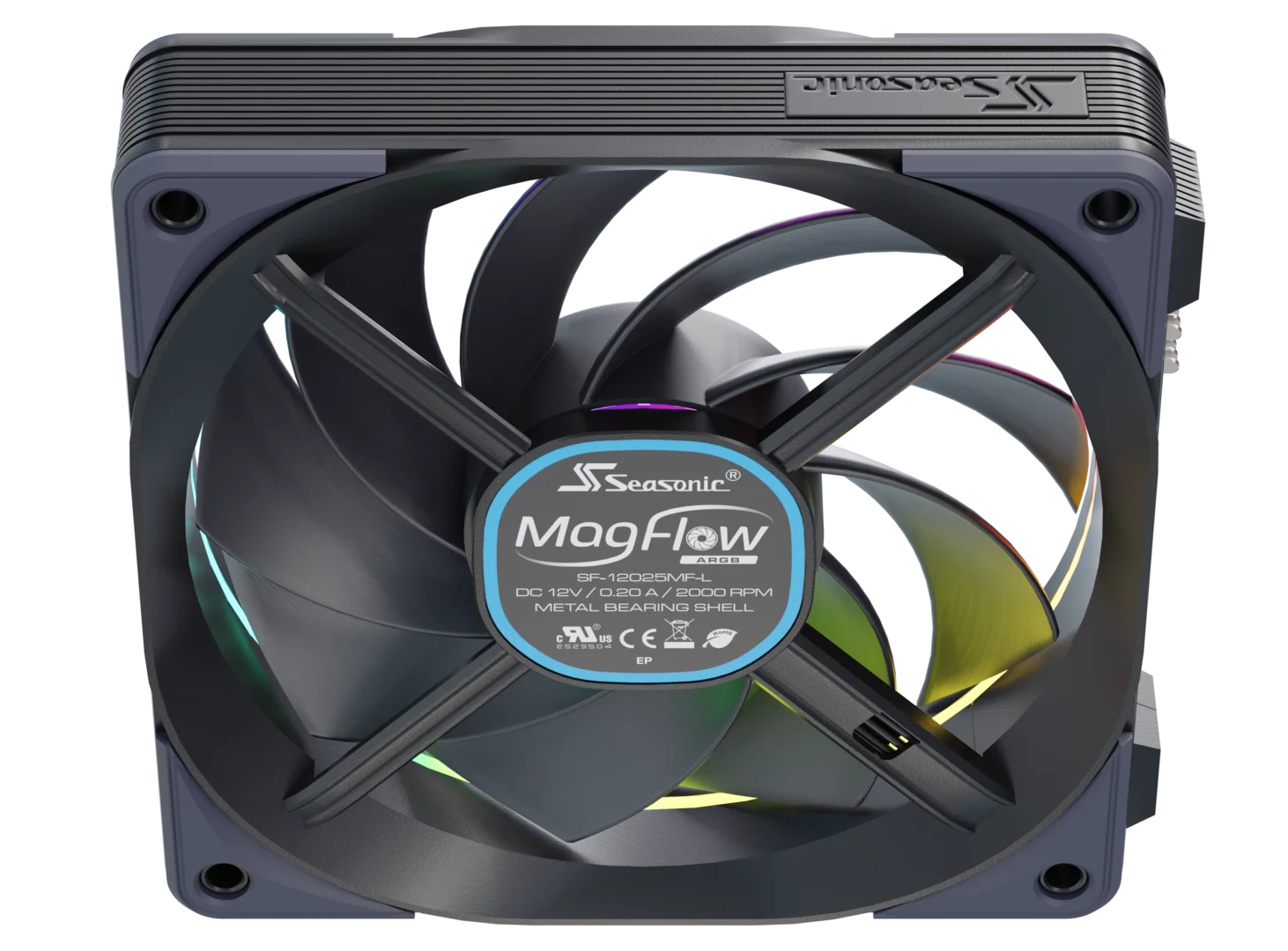

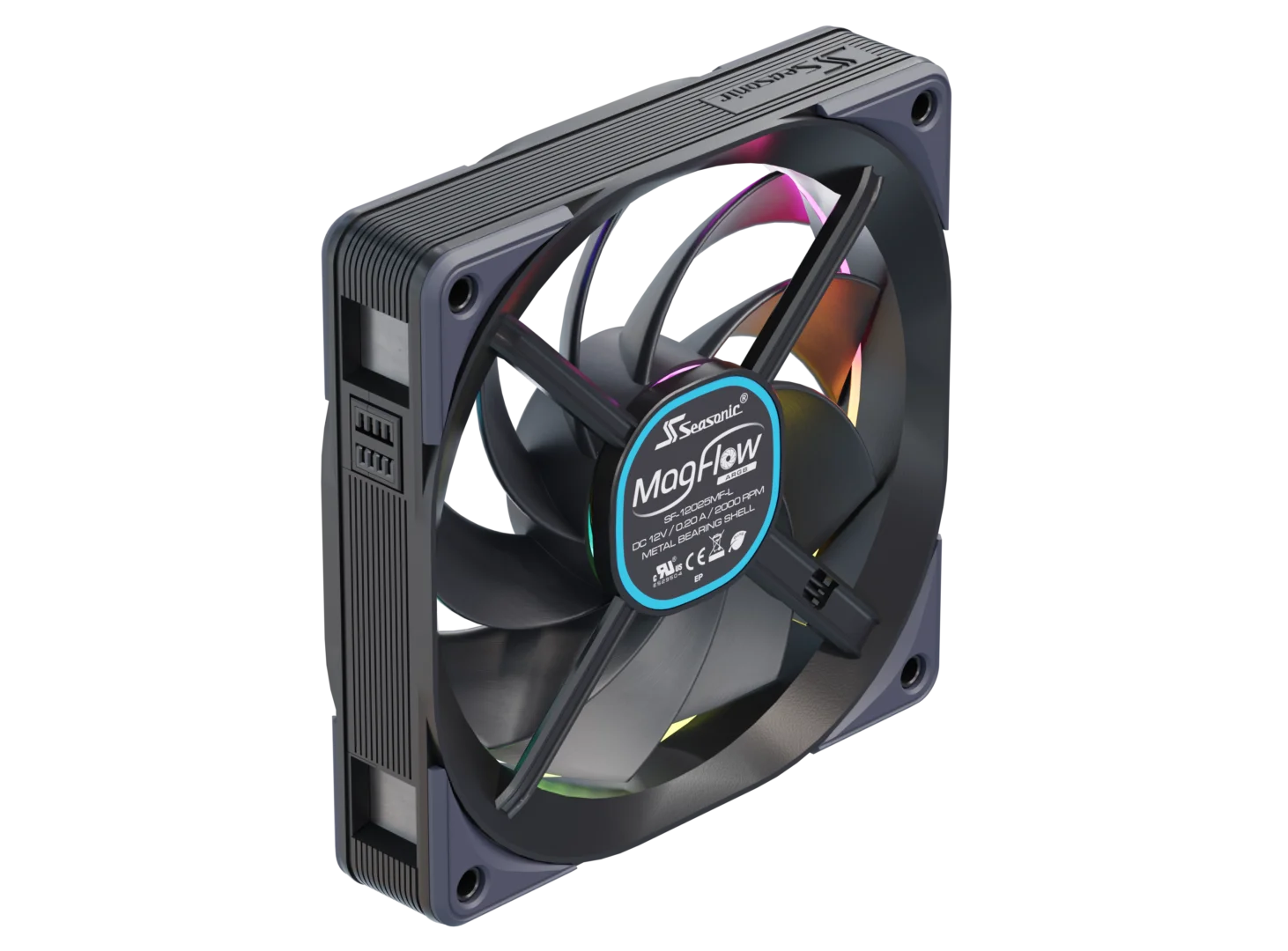

The high-quality feel of the MagFlow fan is achieved by using durable materials and fine aesthetic details. The cables on the back are hidden in an X-style support, while the Seasonic logo on the front harmonizes with the blue color strip on the inner side of the frame. The fan blade features an elegant brushed metallic center medallion with the brand logo.

The exact time to market depends on your location. Please contact your local Seasonic Representative to obtain more information. Thank you.

Daisy Chain Design

Magnetic

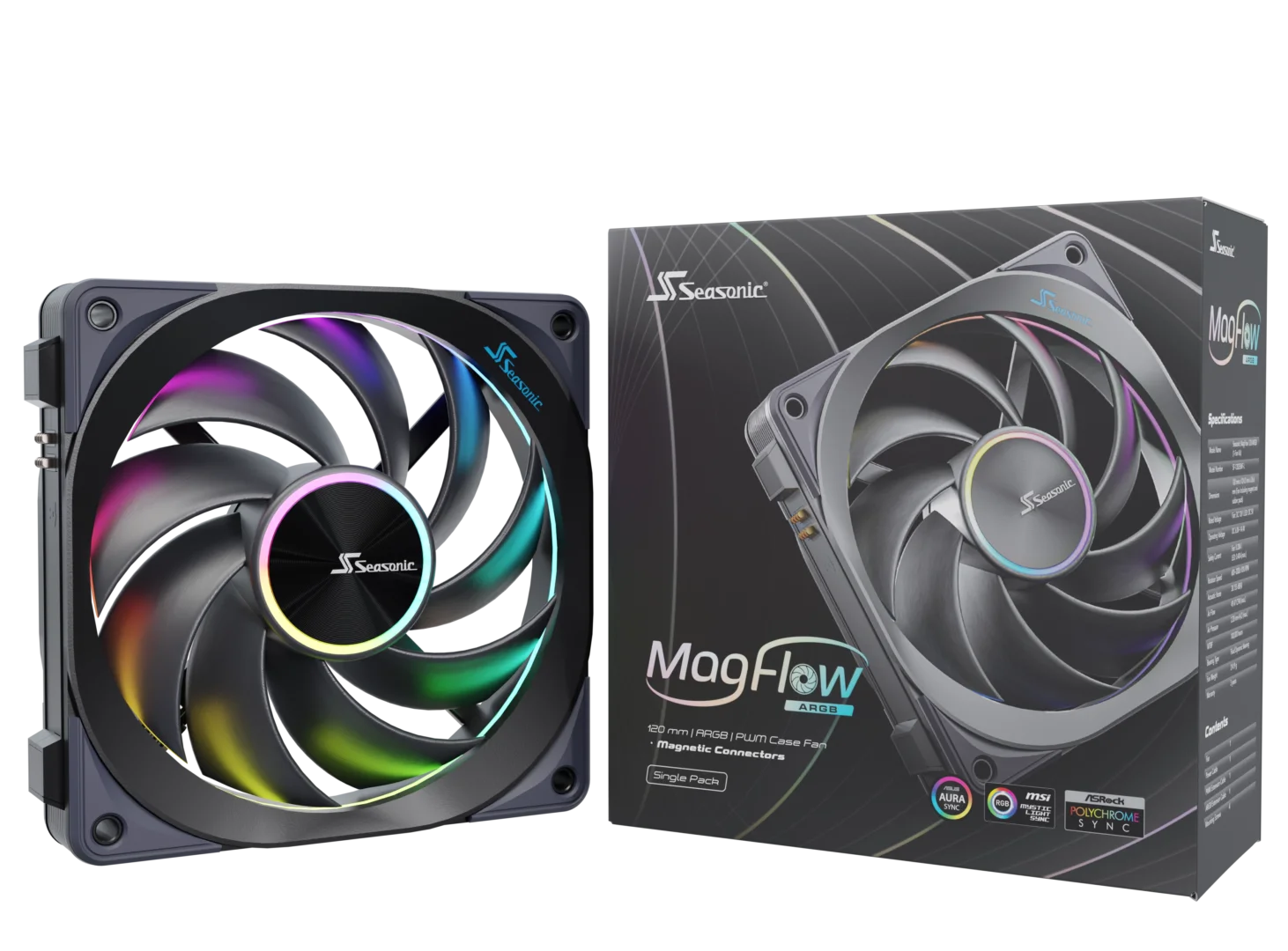

1-Pack

Packaging
124.2 mm (L) x 26.6 mm (W) x 120 mm (H)

Dimensions

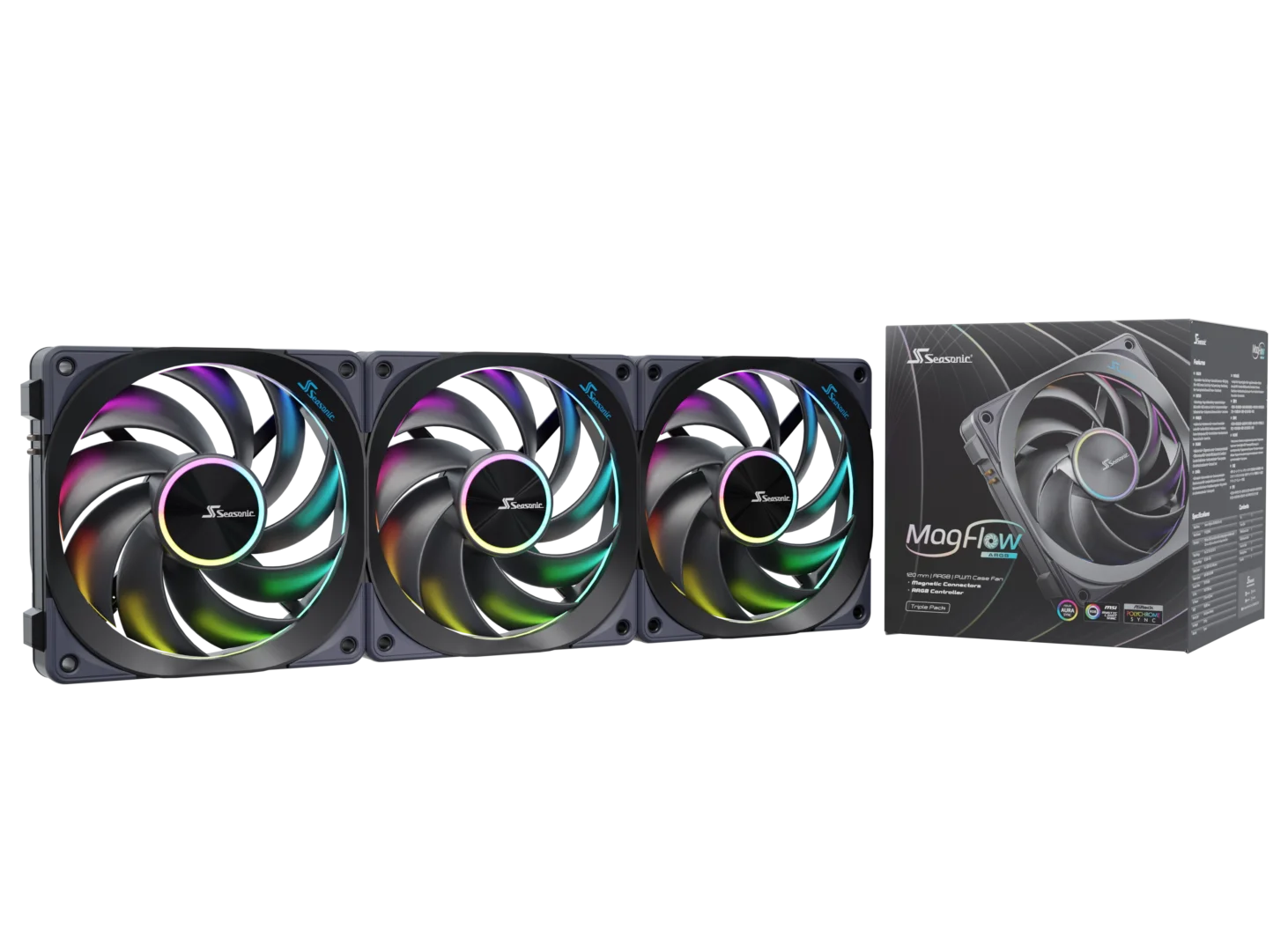

3-Pack

Packaging
3 Years

Warranty

Magnetic

Daisy Chain Design

Packaging

1-Pack

Dimensions

124.2 mm (L) x 26.6 mm (W) x 120 mm (H)

Packaging

3-Pack

Warranty

3 Years

Daisy Chain Design

Individual fans are attached to each other by an interlocking mechanism supported by magnets. This system eliminates the use of wires to make the installation simpler and cleaner.

Fluid Dynamic Bearing Fan

The extremely quiet fluid dynamic bearing with its low vibration further reduces blade deflection and has a long life expectancy.

Efficiency and noise are well-balanced by a special 9-blade fan buried into the FDB bearing to increase blade stability, reduce noise, and maximize airflow. Shock absorbing rubber pads on all corners eliminate vibration between the case and the fans.

Modularity

Regardless of the number of fans to be installed, attaching the cables for power and signal becomes extremely easy and convenient with the magnets. The connectors snap quickly and precisely in place, which greatly simplifies the assembly process.

Easy Installation On Top Of The Radiator

After the fans are connected, they can be installed on top of the water-cooling radiator with only four screws, which reduces the time spent on alignment and screw locking.

Interface Description

A. Reset/LED Switch: It can be connected to the case Reset or LED Switch, short press the control button to switch the lighting effect, and long press to switch to the motherboard lighting synchronization mode (short press to switch back to the keyed lighting effect mode).

B. LED Control Button: Short press the controller to switch the lighting effect, and long press to switch to the motherboard lighting effect synchronization mode (short press to switch back to the keyed lighting effect mode).

C. ARGB Port: It can be connected to ARGB peripherals, such as fans, light strips and other devices to achieve synchronization of lighting effects.

D. ARGB Signal Header: It can be connected to the ARGB interface of the motherboard to synchronize the lighting effect of the device with the motherboard (you can only control the lighting effect by pressing the button if this cable is not connected).

E. SATA Connector: Connect this cable to a power supply to provide power to the controller.

Installation Instructions

Connect E to the power supply SATA power cable.

Connect the case Reset or LED Switch to the A port.

Make sure that the device that needs ARGB synchronization is connected to the C interface.

If the ARGB device needs to be synchronized with the motherboard, the D cable must be connected to the ARGB interface of the motherboard, and connected to the chassis control button through A, or B is long pressed to switch to the motherboard lighting synchronization mode.

Both A and B can be long long-pressed to switch to the motherboard lighting effect synchronization mode, and short short-pressed to switch to the keyed lighting effect mode.

Gallery

0 / 0

Specifications

Model Name	MAGFLOW ARGB 120 MM 1-PACK
Model Number	SF-12025MF-L
Dimensions	120.4 mm x 124.2 mm x 26.6 mm (Fan including magnet and rubber pads)
Nominal Input Voltage	12 VDC
Rated Input Current	0.10 A
Startup Current	0.18 A (max.)
Rotational Speed	2000±10% RPM
Acoustical Noise	30.155 dB (A)
Air Flow	49.47 CFM
Air Pressure	2.28 mm-H2O
MTBF	100,000 hours
Bearing Type	Fluid Dynamic Bearing
Fan Weight	214 g
Warranty	3 years

Model Name	MAGFLOW ARGB 120 MM 3-PACK
Model Number	SF-12025MF-L
Dimensions	120.4 mm x 365.8 mm x 26.6 mm (3 x Daisy-chained fans)
Nominal Input Voltage	12 VDC
Rated Input Current	0.10 A
Startup Current	0.18 A (max.)
Rotational Speed	2000±10% RPM
Acoustical Noise	30.155 dB (A)
Air Flow	49.47 CFM
Air Pressure	2.28 mm-H2O
MTBF	100,000 hours
Bearing Type	Fluid Dynamic Bearing
Fan Weight	214 g
Warranty	3 years
