If you are currently planning to build your own PC using only the best and most efficient components, this article will help you understand this issue. You’ll learn how to pick the right power supply for your PC and the factors that influence it.

What is a computer power supply?

A computer power supply unit (PSU) is the heart of your system, which gives life to your PC and delivers electricity to all the key components inside. Power supplies take AC power from your outlet and turn it into specific DC voltages (3.3V, 5V, and 12V). Providing stable and reliable power to every component is important for smooth operations, as that is where your PC’s stable work begins.

To protect your hardware, modern PSUs come with built-in safety features that protect your PC and its components from every type of harm. These protection features help prevent damage from short circuits, power surges, overheating, or overload, literally, all things that could seriously affect your PC’s performance or lifespan.

Power supplies come in various form factors (e.g., ATX, SFX), each of them designed for different kinds of setups ranging from simple desktops to powerful and compact builds.

When choosing a PSU, match it to your system’s power needs. Look at the wattage requirements of your components, and check for an efficiency rating like 80 PLUS®. It’s that the PSU uses energy more effectively and generates less heat. There are more points to consider, but these two are the key ones.

The power supply isn’t just another box in your PC; it’s what keeps everything running as needed. Choose it wisely and go ahead with all the tasks you need.

Why is the PSU important for your PC build?

There are several reasons why the power supply is an important component in building your PC. Most importantly, your power supply is the heart of your PC. Depending on its characteristics and features, other components will work, withstand stress, and perform under heavy loads reliably based on the quality of the power supply. It is the center of everything, which is why you should start building your own PC by choosing the right PSU.

Here are more reasons why your PSU really matters:

A good PSU for PC comes with built-in protections. This prevents crashes, blue screens, accidental reboots, and even damage to components. Safety features make sure that everything works like clockwork and all components are protected from any power surges.
The PSU controls the energy-saving process. Therefore, we recommend choosing units with 80 PLUS® certification. Why is that? 80 PLUS®certified power supplies work better, use less electricity, emit less heat, and last longer. They will also handle all the tasks whatever you need.
A solid PSU helps your key parts, such as the motherboard, CPU, and GPU, last longer. That really matters if you’re planning to run demanding tasks or overclock. Therefore, it makes sense to start your build right with the power supply. Pick one that can fully protect your setup and deliver the right amount of power for what you need.

Choosing a high-quality PC power supply means fewer tech issues and better performance. Seasonic experts recommend considering the PRIME Series power supplies. They provide maximum safety and performance that has already been approved by reviewers and tested by avid PC enthusiasts around the world. Moreover, Sea Sonic provides you with the most generous 12-year warranty on the market for the PRIME Series.

Types of PC power supplies

Today, there are several main PSU form factors on the market, such as ATX and SFX/SFX-L. Each has its own dimensions, features, and typical areas of use. Let’s go over each one.

ATX
This is the most common standard for desktop PCs and a top choice among PC enthusiasts. It’s dimensions typically are 150 mm x 86 mm x 140 mm, so it fits most Midi or Mini towers. It offers enough power and space to support powerful components and large fans.

SFX / SFX-L
These are compact options, usually 125 mm × 63.5mm × 100 mm in size, ideal for mini-ITX cases. SFX-L is slightly longer and can deliver more power. These SFX and SFX-L units are great for small form-factor builds where space is limited but performance still matters.

Despite the variety of power supplies, each one has a specific purpose. So if you know exactly what you want your PC to do, or what kind of case you have, the choice will be quite easy. And here’s a quick tip from our experts. Choose the power supply that suits you in terms of size, power, and case type. That’s how you’ll get the best build.

What is the difference between modular, semi-modular and non-modular PSUs for PC?

The key difference between them is how the cables are connected. In a modular PSU for PC, all cables come loose in the packaging, and you can connect only those that are necessary to power your components in your PC. This offers a number of advantages. For example, you can easily upgrade or replace cables. Just remove the old ones and connect the new ones that you need. Modular cables also allow for better placement of PC components and promote better ventilation, as there is no clutter caused by unnecessary connections. Modular PSUs are usually more expensive, but it’s better to go with modular because as it means fewer cable management headaches.

The situation is slightly different with semi-modular power supplies. Some of the cables are detachable, but the main 24-pin and CPU cables are completely attached to the unit. In this case, you still have the option of using only the necessary cables to connect, but you need to take into account the ones that cannot be removed. Semi-modular power supplies strike a balance between neat appearance and cost, and are also convenient when building your own PC.

In non-modular power supplies, all cables are permanently connected to the unit. This means that you cannot disconnect any cable, and you already have a pre-configured power supply to power specific components via permanent cables. Non-modular power supplies have a fairly simple design and are considered the cheapest option. As a shortcoming, you are left with poorer ventilation due to the larger number of cables, which are sometimes difficult to organize inside the case and, of course, difficult to upgrade.

In general, the modularity of the power supply does not affect the power or performance of your PC. At the same time, however, modular PSUs make the assembly neater and more convenient, especially if you have a compact case and have individual needs for connecting certain PC components.

What should you know before choosing a PC power supply?

Choosing PC power supplies is not just about knowing your PC brand or PSU type. To pick the right one that fits your PC’s needs, you’ll need to do some prep work. Here’s what you should know.

How much power does your PC need?

The power supply unit must be able to power all components. That is, everything – the processor, video card, memory, etc. To calculate this value, use our wattage calculator and add a 20% – 30% margin to the index you’ll get to avoid overheating and freezing.

Power supply efficiency

Look for the 80 PLUS® certification mark. This indicates the power conversion efficiency of the unit, meaning how much excess energy and heat is produced. The higher the efficiency, the less noise is produced, running costs are also lower, and the PC components have a longer service life the ideal choice for a stable and long-term use.

Does the power supply fit in the case?

As we’ve already mentioned, today’s market offers various power supply form factors – ATX, SFX, TFX, and EPS. It’s important that the unit physically fits into the case and has all the necessary cables. Additionally, consider all the other components that will be in your PC so that you can properly arrange them.

Do you have all the cables and connectors you need?

It’s important to check whether all the necessary cables and connectors to power your components are available in the box of the PSU you are intending to buy. Sometimes users are surprised to find that their new PSU doesn’t have all the connectors they need. With a bit of careful planning and research during the purchase process, this can easily be avoided.

Type of units – modular, semi-modular, or non-modular

Modular power supplies have removable wires that can be easily replaced if necessary. Semi-modular power supplies also give you freedom of choice when connecting some cables, while non-modular power supplies have cables that are permanently attached to them. Keep in mind that some of the space in your case will be taken up by cables you potentially do not use.

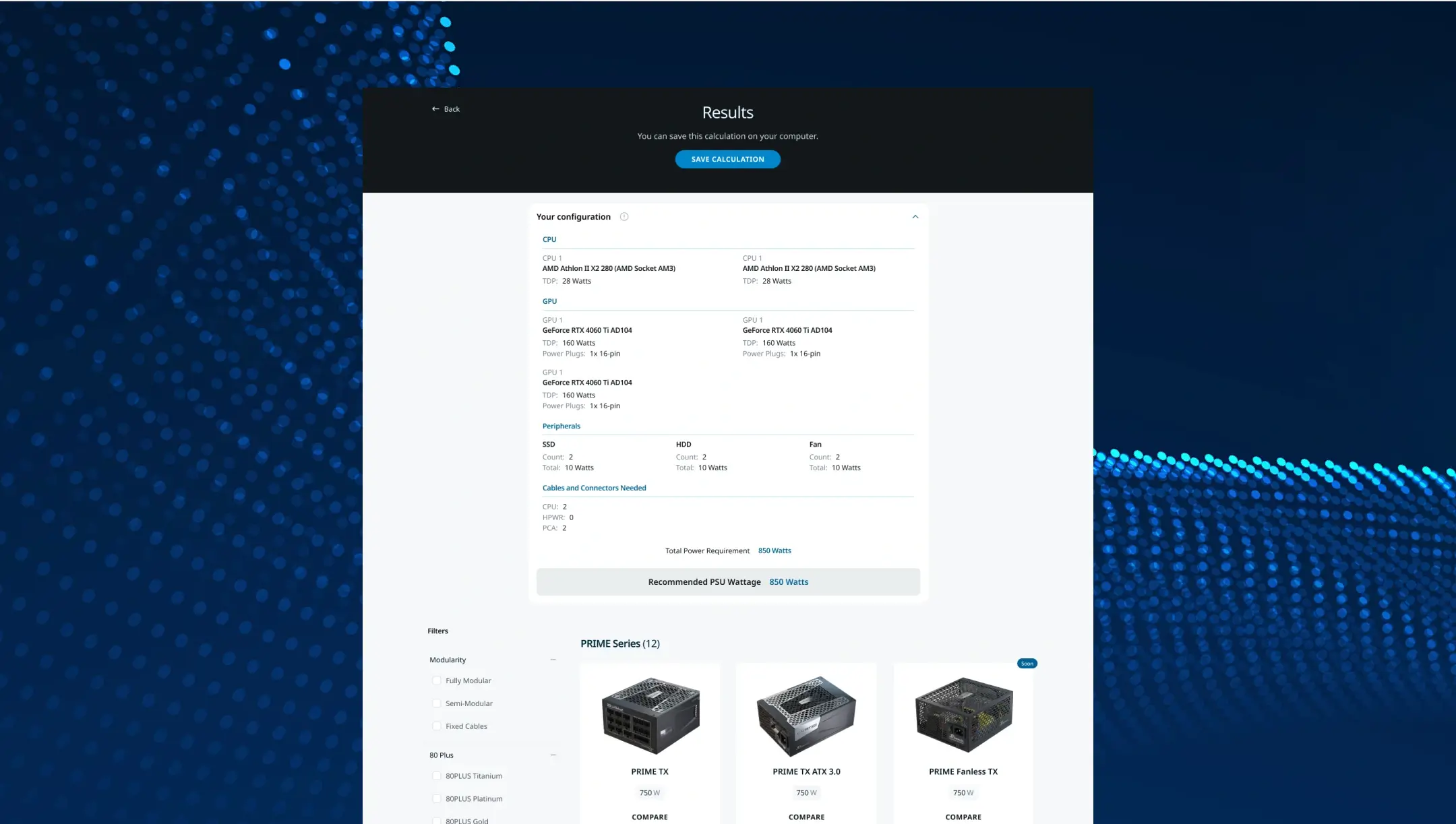

How to calculate the power of your system?

Our wattage calculator will do the estimate of power consumption for you. To make this indicator as accurate as possible, the calculator helps you through the process of collecting data on all your PC components. In other words, you will need to add up the power consumption values of every single component in your PC (processor, graphics card, storage, and cooling) to be able to pick the ideal power supply.

The Seasonic power supply calculator will automatically add a 20%–30% power usage reserve for potential peak loads and give you a final adjusted wattage value, which will be key for choosing the right power supply with the necessary power to support your PC for a long time.

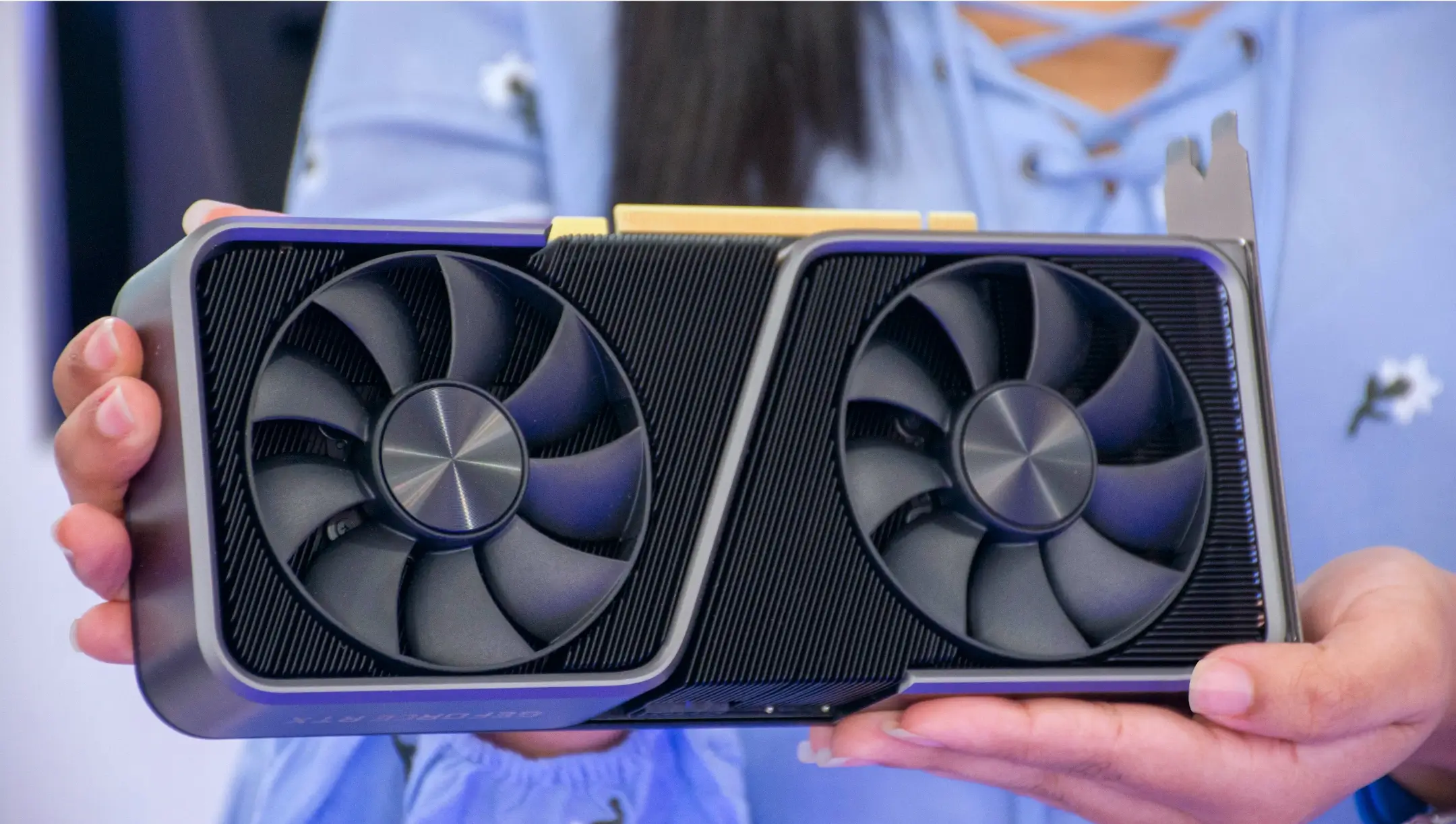

How do you calculate power requirements for high-end GPUs and CPUs?

There are a few things to consider when calculating how much power a high-end CPU and GPU will require. First off, their TDP (thermal design power) and actual power consumption under peak load. Also, remember that during peak loads, consumption can temporarily increase by 20%–30%.

The power consumption of RAM, storage devices, cooling, and the motherboard itself is also added to this value, a total of approximately 100 W –150 W. Now, if you divide the resulting figure by the efficiency factor of the unit (for example, 0.90 for 80 PLUS® Gold), and add a margin of safety of 20%–30%, the result is the total power requirement of your system.

What is 80 PLUS® Certification, and which rating should you aim for?

80 PLUS® certification is a system of standards that indicates the energy efficiency of a computer PSU. Power supplies that have this mark have a minimum efficiency rating (EER) of 80% or higher. Getting a higher certification means that the PSU operates more efficiently, converting more power into usable energy and wasting less as heat. For most users, 80 PLUS® Gold-certified PC power supplies are the ideal choice because they offer high efficiency and reliability at a reasonable price.

What is the Cybenetics PSU Certification?

The Cybenetics PSU Certification system tests two things: efficiency and noise level.

The efficiency of power supply units is certified by ETA. It indicates how much energy is spent on running the PSU and the components of your PC, and how much of it is just wasted. The higher the level of this certification (Diamond or Titanium), the more efficiently the power supply unit works to maintain a stable PC operation.

The noise level is assessed by the LAMBDA certification. This checks how much noise the power supply unit generates during peak loads. There is a special scale for this, which is indicated on the power supply label: A++ – almost inaudible (up to 15 dB); A – fan audible (up to 25dB); Standard – may be a little noisy (up to 45dB).

80 PLUS® is a well-known and respected standard, mainly focused on measuring efficiency under different loads and voltages. Cybenetics, on the other hand, takes things a bit further by looking at not just efficiency but also noise levels, standby power draw, and even how much heat the PSU gives off. It’s a more in-depth kind of testing, you could say — maybe a bit more technical too, but it is also more useful if you’re trying to get the full picture of how a PSU performs in real-world use.

Choosing a power supply that’s Cybenetics-certified gives you a bit of extra peace of mind. It means the unit has been tested not just for efficiency, but also for things like noise, power quality, and heat excess — the kind of details that really matter in everyday use when you want your PC to run quietly, reliably, and without surprises.

How do you match the PSU form factor to your PC case?

Check what formats your case supports first. This is usually listed under the technical specifications of the User Manual – ATX, SFX, TFX, etc. Since ATX is the biggest form factor amongst PC cases, it fits most of the ATX form factor PSUs, except for some long PSUs (>200 mm) that sometimes could pose a problem to fit. For mini-ITX mini-cases, SFX or SFX-L are usually the best fit.

Here’s how to take measurements. Measure the depth and width of the already installed unit or mounting location. Then select a PSU of the same format and do not exceed the permissible dimensions.

What are the key safety features to look for in a reliable PSU?

A reliable PSU must have the following types of protection for your PC components:

Short Circuit Protection (SCP),
Over Voltage Protection (OVP),
Over Power Protection (OPP).

Additional safety features included:

Over Current Protection (OCP),
Under Voltage Protection / Over Voltage Protection/overvoltage protection (UVP/OVP),
Over Temperature Protection (OTP),
Surge Protector – protection against sudden power surges.

These mechanisms are immediately activated when the need arises and shut down the power supply in a timely manner, saving both the unit and the rest of the components. As practice shows, it’s safer, therefore recommended to choose a PSU with a full package of protections. This is your guarantee of safety, stability, and a long service life for the entire system.

Is it worth spending more on a high-efficiency PSU?

Higher efficiency PSUs, such as those with 80 PLUS® Platinum or Titanium certification, waste less power as heat. Over time, the extra initial cost can balance out and make up for the price difference in energy cost savings, particularly for systems running around the clock.

However, if we are talking about a power supply for a home computer that does not perform energy-intensive tasks, 80 PLUS® Bronze- or Gold-certified power supplies will suffice.

What sets Seasonic PSUs apart?

At Sea Sonic, we don’t just build power supplies — we design and manufacture them ourselves, with full control over quality and performance. Our R&D and production processes are certified to ISO 9001 and 14001 standards, ensuring that every unit meets the highest expectations.

Sea Sonic has been driving PSU innovation for decades with many firsts:

The first to introduce Active PFC.
The first to achieve 80 PLUS® (2005) and 80 PLUS® Gold certification for retail products.
Pioneer of fully modular PSUs.
Early adopter of Fanless and hybrid fan modes — now industry standards.

You’ll find that the spirit of innovation is reflected in our PRIME-, VERTEX-, FOCUS-, and CORE Series power supplies, offering high efficiency (Titanium, Platinum, Gold), fully modular cables, and ultra-quiet performance thanks to advanced thermal control.

We are also proud to be consistently recognized by industry experts, like winning EHA’s Best PSU award for our PRIME Series three years in a row: in 2023, 2024, and 2025.

What truly sets the Seasonic brand apart is the company’s unmatched commitment to long-term reliability. That’s why we offer some of the longest warranties in the entire industry:

PRIME Series and VERTEX Series – 12 years
FOCUS Series – 10 years
CORE Series – 7 years

This is one of the ways we demonstrate that we 100% stand behind our product with our excellent customer care complementing the experience people have using Seasonic products for many years ahead. That’s the core of our work and what we keep in mind while designing and producing the most advanced power supplies.

When you choose Seasonic, you’re not just getting a power supply — you’re investing in innovation, first-class engineering, and the peace of mind that comes from a brand that truly stands by its products. After all, we’ve always believed that the power supply is the heart of your system, and our hearts are behind creating the best Seasonic experience for our customers.

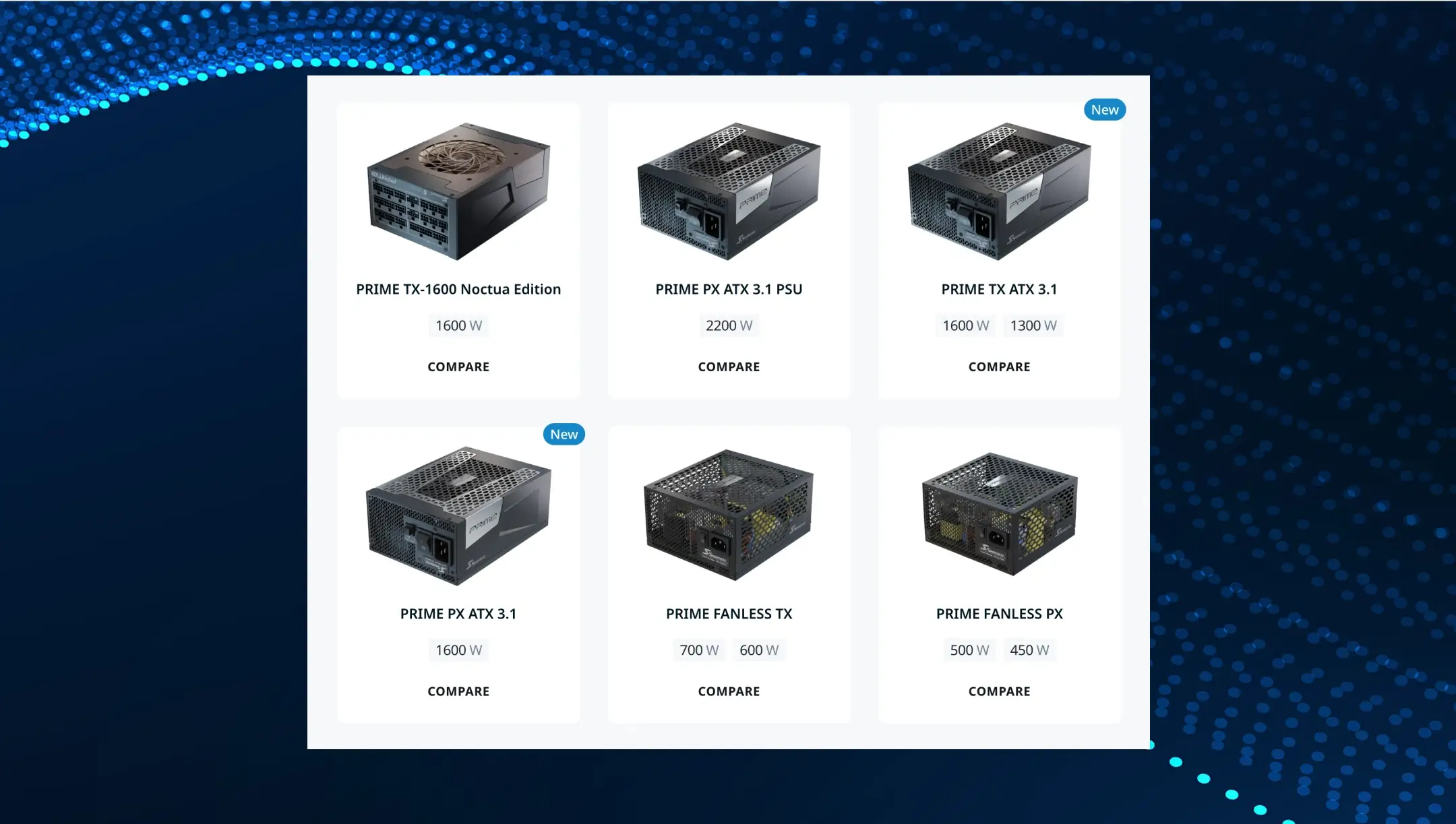

What PC power supplies do Seasonic experts recommend?

We recommend several of our flagship and “80 PLUS® Gold” models:

Seasonic PRIME TX. Our flagship power supply, the absolute best, with 80 PLUS® Titanium certification, silent operation, and premium components for stable performance, even under maximum load. The top models are ATX3.1 and PCIe 5.1 compatible to match the newest high power graphic cards and processors on the market. The Seasonic PRIME Series is the winner of the European Hardware Association (EHA) award for Best PSU in 2025.
Equally important and productive models: The FOCUS GX ATX 3.1 Series with 750 W –1000 W, 80 PLUS® Gold certification, ATX 3.1 and PCIe 5.1 compatibility, fully modular cabling design, and a 10-year warranty. They are ideal for powerful gaming or work systems that require a lot of energy, along with high performance and reliability.
Versatile CORE GX ATX 3.1 models are available in 1000 W, 850 W, 750 W, and 650 W capacities. They are 80 PLUS® Gold certified and feature a fully modular design. Support for ATX 3.1 and PCIe 5.1 standards (with native 16-pin 12V-2×6 cable) ensures compatibility with next-generation graphics cards. These models also feature OptiSink technology, an updated circuit board with improved heat dissipation, as well as a proprietary Smart & Silent fan on a 120 mm hydrodynamic bearing for quiet and efficient operation. Additionally, you’ll get a 7-year warranty as proof of its long-term lifetime and excellent performance.

So, if you need maximum efficiency and stability, go for the PRIME TX ATX 3.1 or PRIME PX ATX 3.1 Series. They will serve you for a long period of time and provide you with top performance no matter what you do – gaming, work tasks, overclocking, AI, and so on.

Conclusions

The perfect power supply requires some research and study of power supplies in general. Each has its own area of application, its own unique characteristics, and, of course, its own cost.

Rest assured that if you make the right choice, it will pay off in the future operation of your PC. A good power supply will have a long life and will prolong the life of the PC components. On our website, you’ll find a large selection of power supplies designed for different voltage levels and supporting different PC loads and applications.
