Seasonic 12VHPWR Cable
Seasonic 12VHPWR Cable

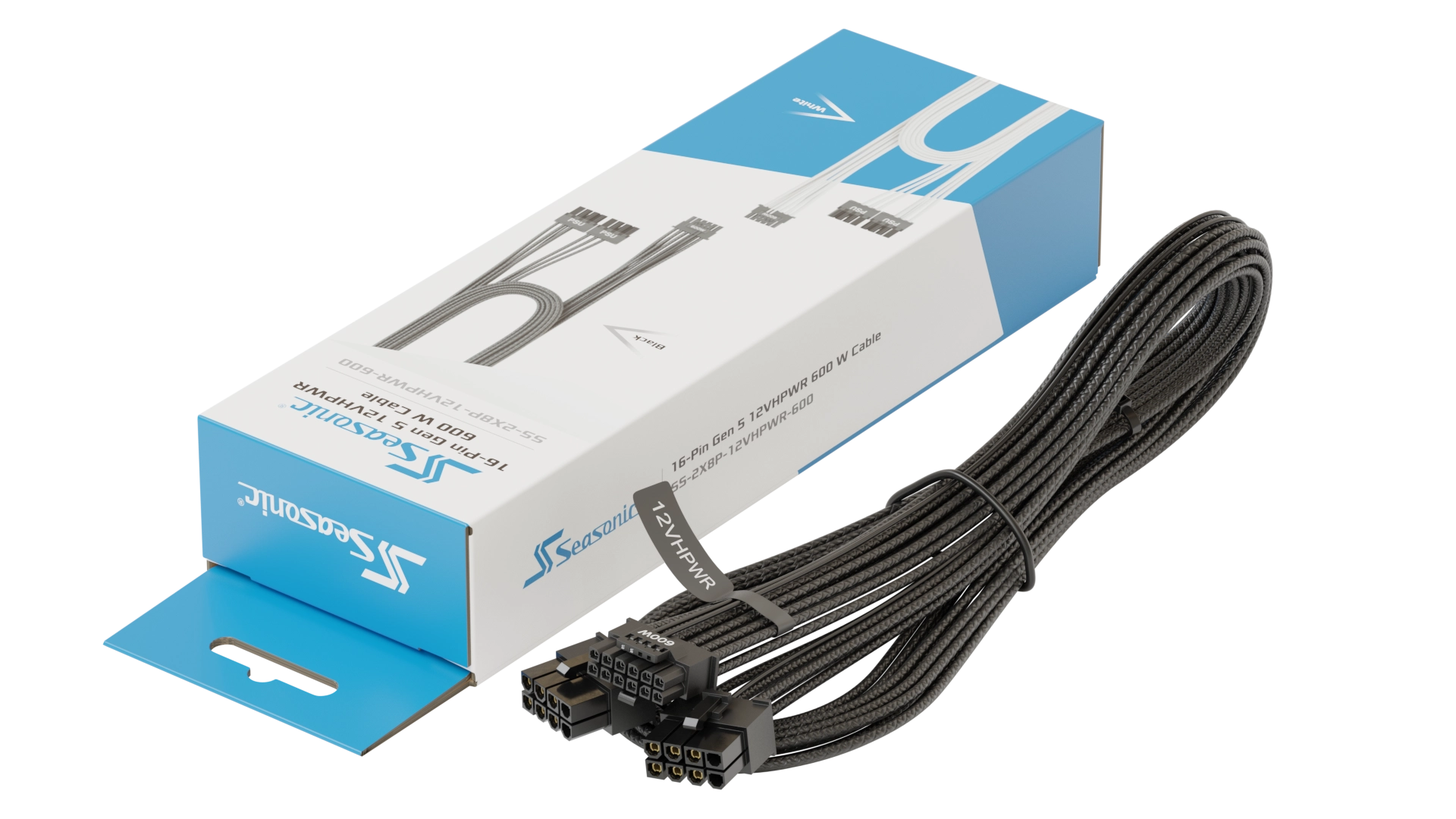

Seasonic introduces the 12VHPWR 600 W graphics card cable to power high-performance GPU / graphic cards. This cable can be used with many of our current and past power supplies but with specific compatibility requirements.
Please see below for important compatibility information. The exact time to market depends on your location. Please contact [email protected] for more information.
A Single Connector To Power Them All
With the arrival of the new ATX 3.0 / PCIe 5.0 specifications, some graphic cards will now be powered by the new 12VHPWR connector. Offering up to 600 W of power, the Seasonic 12VHPWR cable has been crafted with high quality materials, such as high current terminal connectors and 16 AWG wires to ensure highest performance and safety in usage.
Please see Sea Sonic's compatibility recommendations below:
Please see Sea Sonic's compatibility recommendations below:
Power supply requirement: 650 W and above
The 12VHPWR cable that is provided with your Seasonic power supply is rated at 600 W.
This means the maximum allowable power pull from the power supply by the VGA can be up to 600 W.
If your VGA is very power usage intensive, then please consider power supplies that are rated at 750 W and higher.
This means the maximum allowable power pull from the power supply by the VGA can be up to 600 W.
If your VGA is very power usage intensive, then please consider power supplies that are rated at 750 W and higher.
Always follow the recommendations of your VGA card manufacturer for the minimum power requirement.
Power supply requirement: 2x PCIe Connectors
Your power supply must have 2x free PCIe connectors available where the Seasonic 12VHPWR’s 2x PCIe connectors can plug into.
BOTH 2x8 Pin PCIe connectors of the 12VHPWR must be connected into the power supply.
BOTH 2x8 Pin PCIe connectors of the 12VHPWR must be connected into the power supply.
Always follow the recommendations of your VGA card manufacturer for the minimum power requirement.
Compatible series (650 W and higher)
Seasonic PRIME GX, PX and TX
Seasonic FOCUS GX & PX
Seasonic FOCUS Plus Gold & Platinum
Seasonic Platinum, XP2 & XP3
Seasonic X-Series, KM3 & XM2
Not compatible series
Any power supplies rated under 650 W
FOCUS Gold & FOCUS GM - These power supplies have only 1x PCIe connector available and therefore cannot work with the Seasonic 12VHPWR 600 W cable.
Recommended Installation of the 12VHPWR Cable
-
The 12VHPWR cable is designed to work perfectly when installed correctly.
To ensure the safe and effective use of the cable, please follow these recommendations: - Both 8-pin connectors must be plugged into your power supply at all times.
- Ensure that all connectors are INSERTED, CLICK-LOCKED, and SEATED properly.
- Avoid bending or applying force to the cable too close to the connector.
- Once the cable is plugged into place, DO NOT bend it in any direction.
- By adhering to the guidelines above and ensuring that the connector is plugged in all the way, you can prevent malfunctions.
| Specifications | |
|---|---|

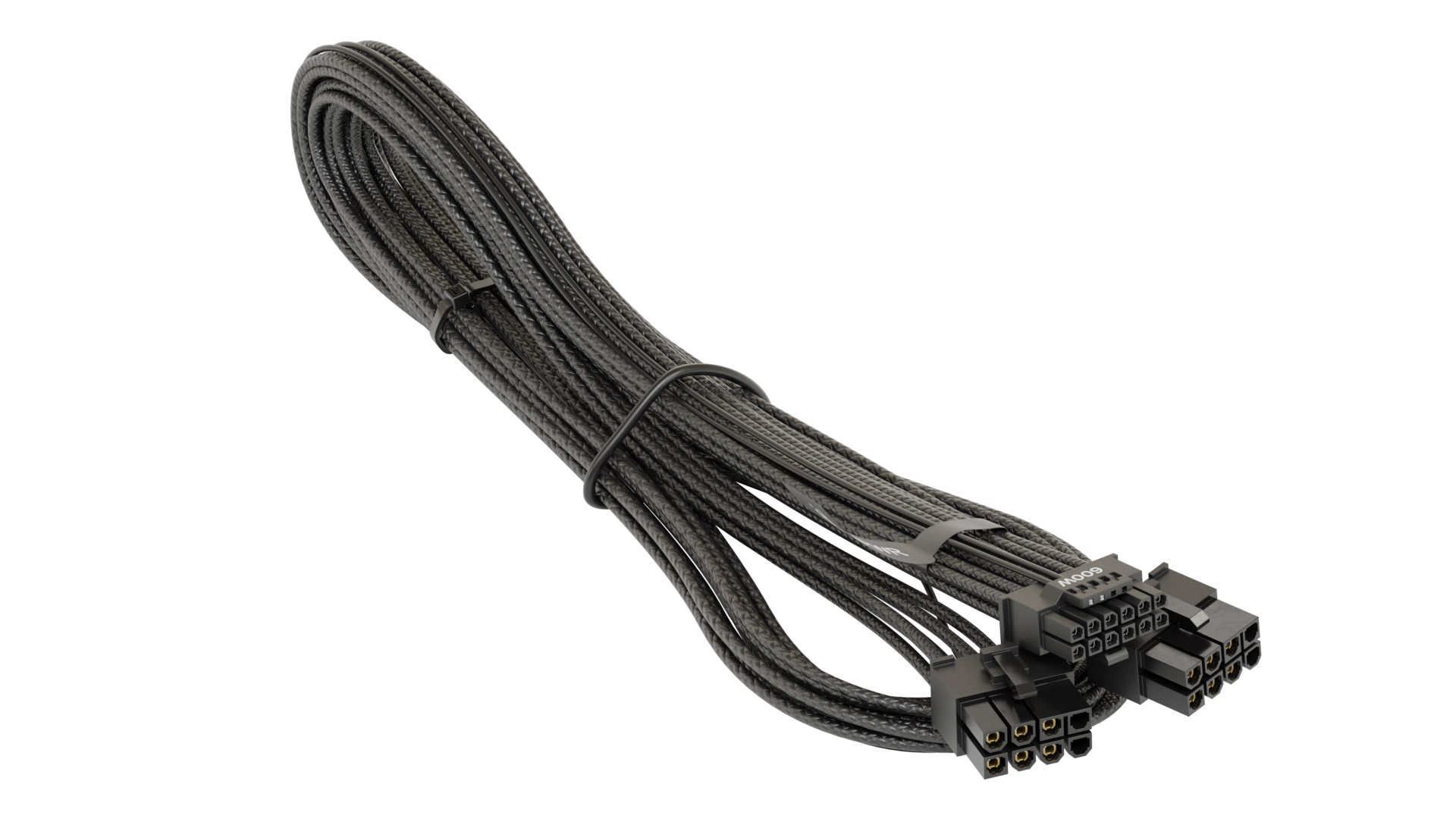

| Connectors | 2x 8-pin to 1x 12VHPWR - High Current Terminal connectors |
| Gauge | 16 AWG |
| Length | 750 mm |
| Warranty | 2 Years |

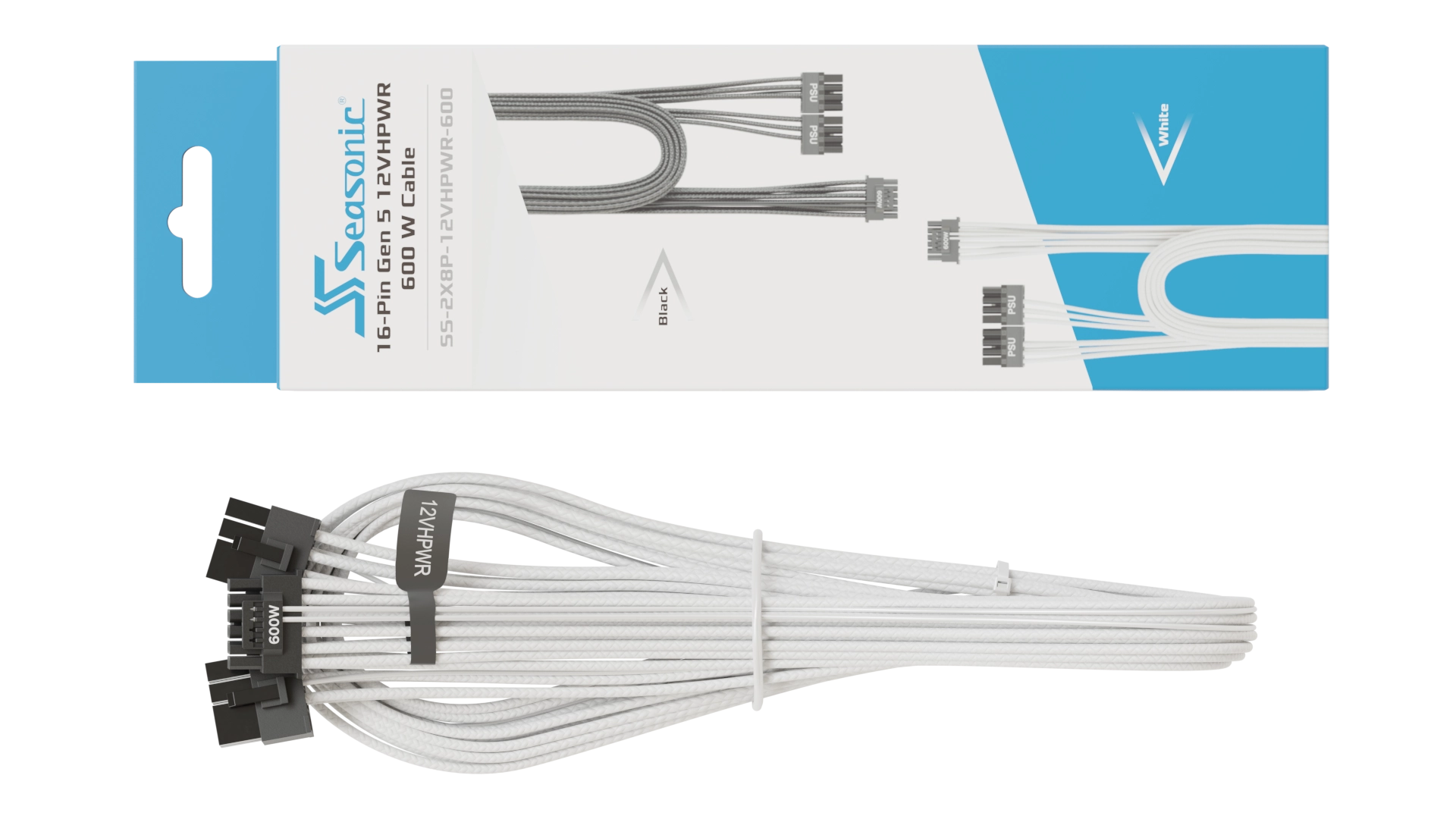

| Color | Black and white (only available in the EU and China) |
| Connector(s) per cable | 1 |
| Total Length (mm) | 750 |
| Number(s) of cable(s) included | 1 |
 |
|
-
Datasheet
-
User Manual
-
RoHS Form
FAQ
The Seasonic 12VHPWR cable is used to connect modern GPUs to the power supply. It perfectly fits the NVIDIA RTX 40/50 series GPUs. The cable goes with one single connector instead of several 8-pin PCIe connectors, delivering high power to the GPU via the 12VHPWR standard.
It is compatible with all Seasonic PSU models that support the ATX 3.1 standard with a native or compatible 12VHPWR connector. There are:
Seasonic PRIME TX ATX 3.1 / PX ATX 3.1; Seasonic VERTEX PX ATX 3.1 / GX ATX 3.1.; Seasonic FOCUS GX ATX 3.1.
Yes, a standard 12VHPWR cable can deliver up to 600W to a GPU when properly connected to a compatible PSU.
For proper PC work, the Seasonic 12VHPWR cable must be connected correctly. Once you hear the connector “click” into place, and there’s no visible gap, it’s a sign that you did all right. Also, avoid sharp bends near the connector (especially the first 3–4 cm) and use only the original or a certified cable without adapters.
Yes, if the power supply supports the appropriate ATX 3.1 standard and has a certified 12VHPWR output. There are cases when a 650W power supply doesn’t fit because it isn't ATX 3.1 compliant or doesn't have the correct connector for this cable.
