FOCUS Series
FOCUS GX ATX 3.1 v5
The Renewed Center of Attraction
1000 W
850 W
750 W
FOCUS GX ATX 3.1 v5
Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX ATX 3.1 v5 builds upon this foundation with enhanced thermal performance, refined acoustic behavior, and improved real-world efficiency. This is the renewed center of attraction
Fully compliant with the ATX 3.1 and PCIe 5.1 standards, it integrates OptiSink™ technology, OptiSilent fan control, and a native dual color 12V-2×6 cable in a compact 140 mm form factor. Designed to support the latest high-performance GPUs and processors, the FOCUS GX ATX 3.1 v5 series delivers stable, efficient, and reliable power for modern systems.
-
OptiSink™ Thermal Design
-
Native 12V-2×6 Cable
-
ATX 3.1 & PCIe 5.1 Ready
-
OptiSilent Fan Control
-
Seasonic Quality Commitment
-
OptiSink™ Thermal Design
Advanced thermal architecture for improved airflow and heat dissipation -
12V-2x6 Cable
Dual-Color for secure connections -
ATX 3.1 & PCIe 5.1 Ready
Designed for next-generation GPUs and extreme power excursions -
OptiSilent Fan Control
Intelligent fan control with hybrid mode for efficient, low-noise cooling -
Warranty
Built to last. Backed by Seasonic
-
OptiSink™ Thermal Design
Advanced thermal architecture for improved airflow and heat dissipation -
12V-2x6 Cable
Dual-Color for secure connections -
ATX 3.1 & PCIe 5.1 Ready
Designed for next-generation GPUs and extreme power excursions -
OptiSilent Fan Control
Intelligent fan control with hybrid mode for efficient, low-noise cooling -
Warranty
Built to last. Backed by Seasonic
OptiSink™ Thermal Design
Native 12V-2×6 Cable
ATX 3.1 & PCIe 5.1 Ready
OptiSilent Fan Control
Seasonic Quality Commitment
OptiSink™ Thermal Design
Advanced thermal architecture for improved airflow and heat dissipation
12V-2x6 Cable
Dual-Color for secure connections
ATX 3.1 & PCIe 5.1 Ready
Designed for next-generation GPUs and extreme power excursions
OptiSilent Fan Control
Intelligent fan control with hybrid mode for efficient, low-noise cooling
Warranty
Built to last. Backed by Seasonic
OptiSink™ Thermal Design
Advanced thermal architecture for improved airflow and heat dissipation
12V-2x6 Cable
Dual-Color for secure connections
ATX 3.1 & PCIe 5.1 Ready
Designed for next-generation GPUs and extreme power excursions
OptiSilent Fan Control
Intelligent fan control with hybrid mode for efficient, low-noise cooling
Warranty
Built to last. Backed by Seasonic
Efficiency Certification
Chinese Quality Control
Noise Certification
FOCUS GX ATX 3.1 v5
Unboxing FOCUS GX-1000 ATX 3.1 v5
New Cable Combs
OptiTech Features
Engineering Every Watt, Perfecting Every Detail
OptiSink™
OptiSink™ enhances heat dissipation by optimizing component layout and enabling direct thermal transfer through the PCB, improving cooling efficiency and reliability.
Advanced Thermal ArchitectureOptimized layout for efficient heat distribution
Reduced Circuit FootprintUp to 48% more internal space for better airflow
High Thermal ConductivityImproved 8x heat transfer directly through PCB
Enhanced Airflow EfficiencyBetter circulation for lower operating temperatures
OptiSilent
OptiSilent is Seasonic’s advanced fan control that balances cooling and noise through hybrid operation and real-time monitoring, ensuring quiet and efficient performance.
0dBA Hybrid ModeFan stays off at low load for completely silent operation
Digital Thermal ControlReal-time adjustment based on load and temperature
Smart PWM RegulationPrecise fan speed tuning for stable and efficient cooling
Optimized Noise-to-Performance RatioLow noise without compromising cooling performance

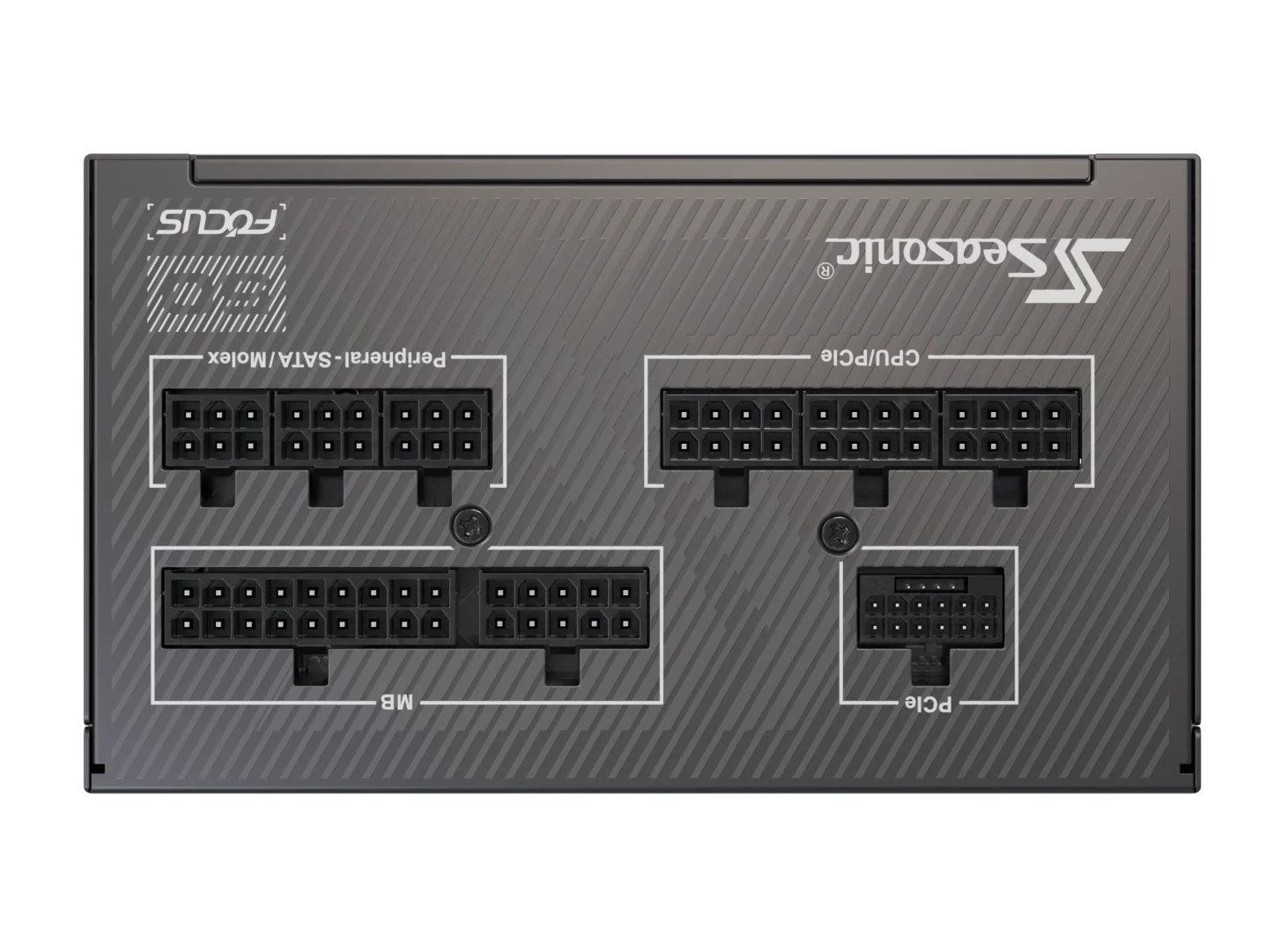

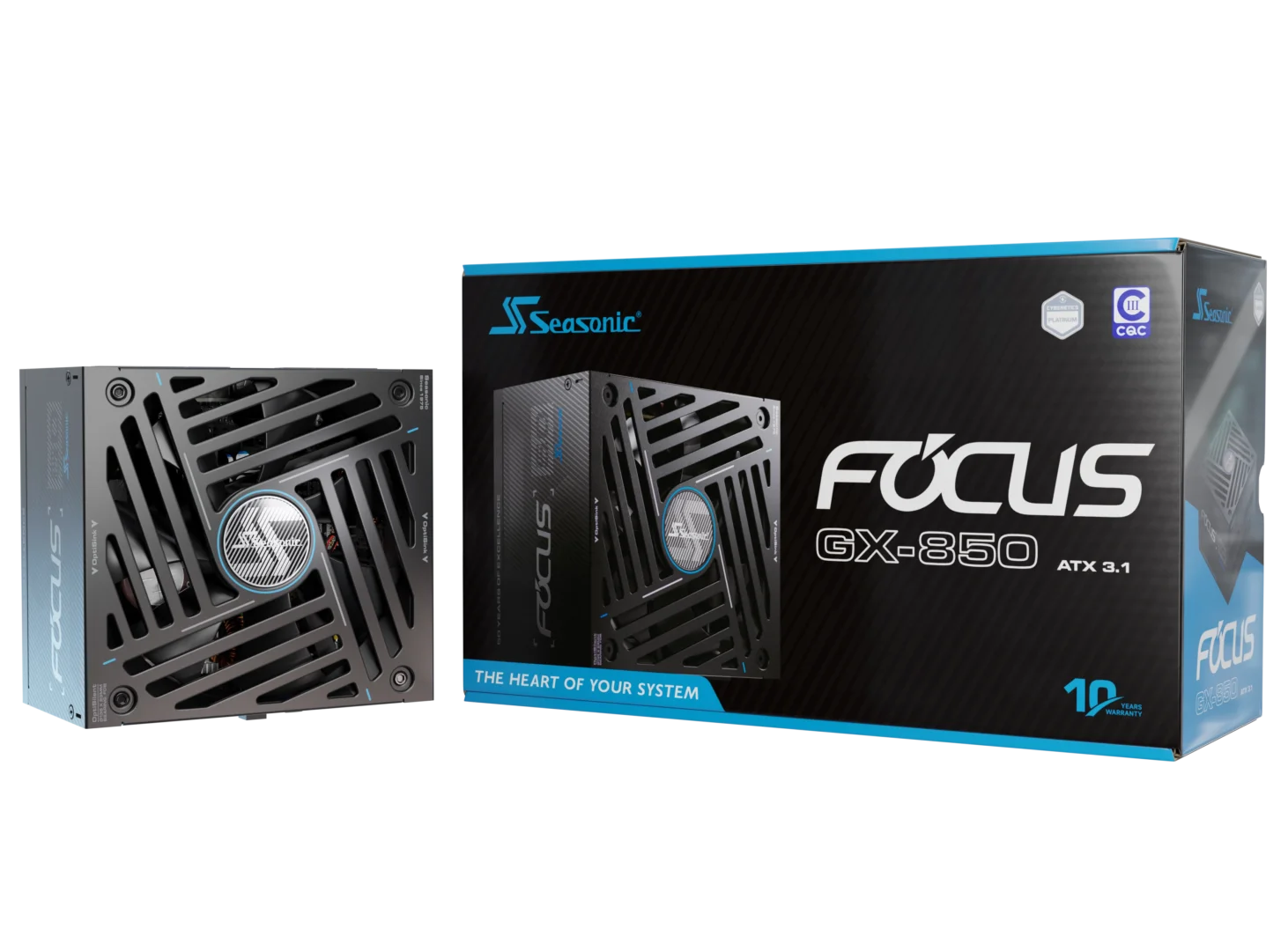

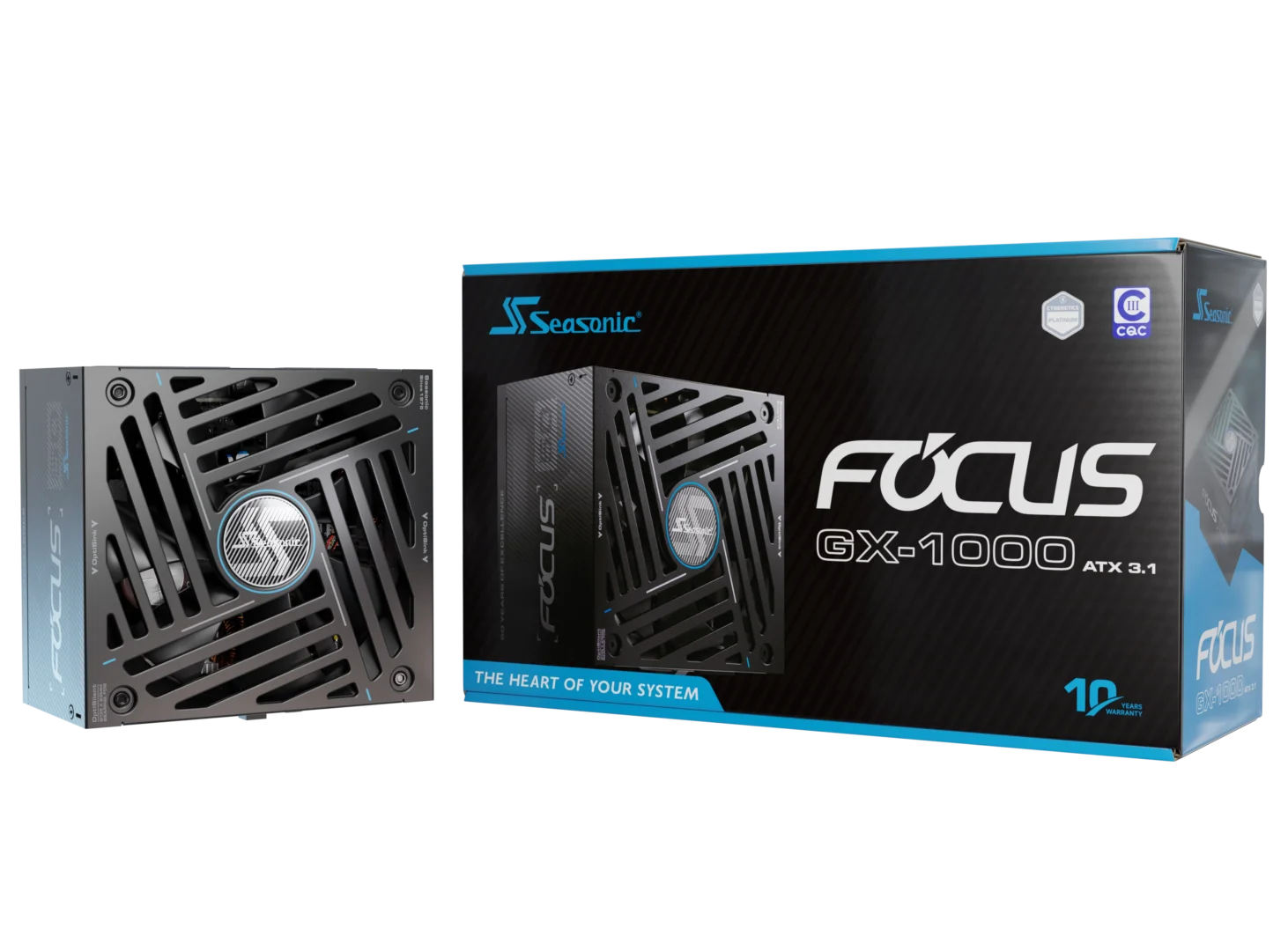

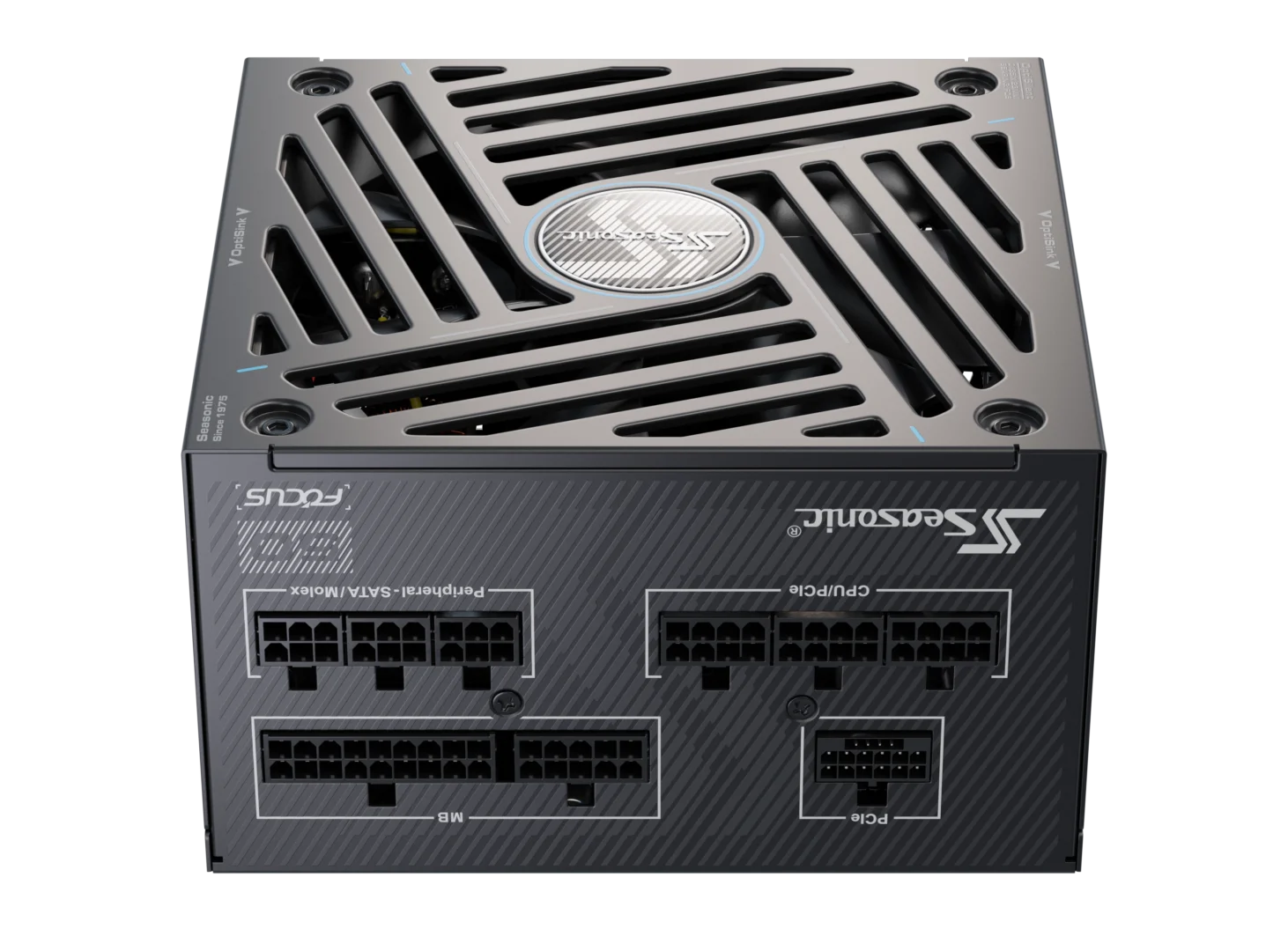

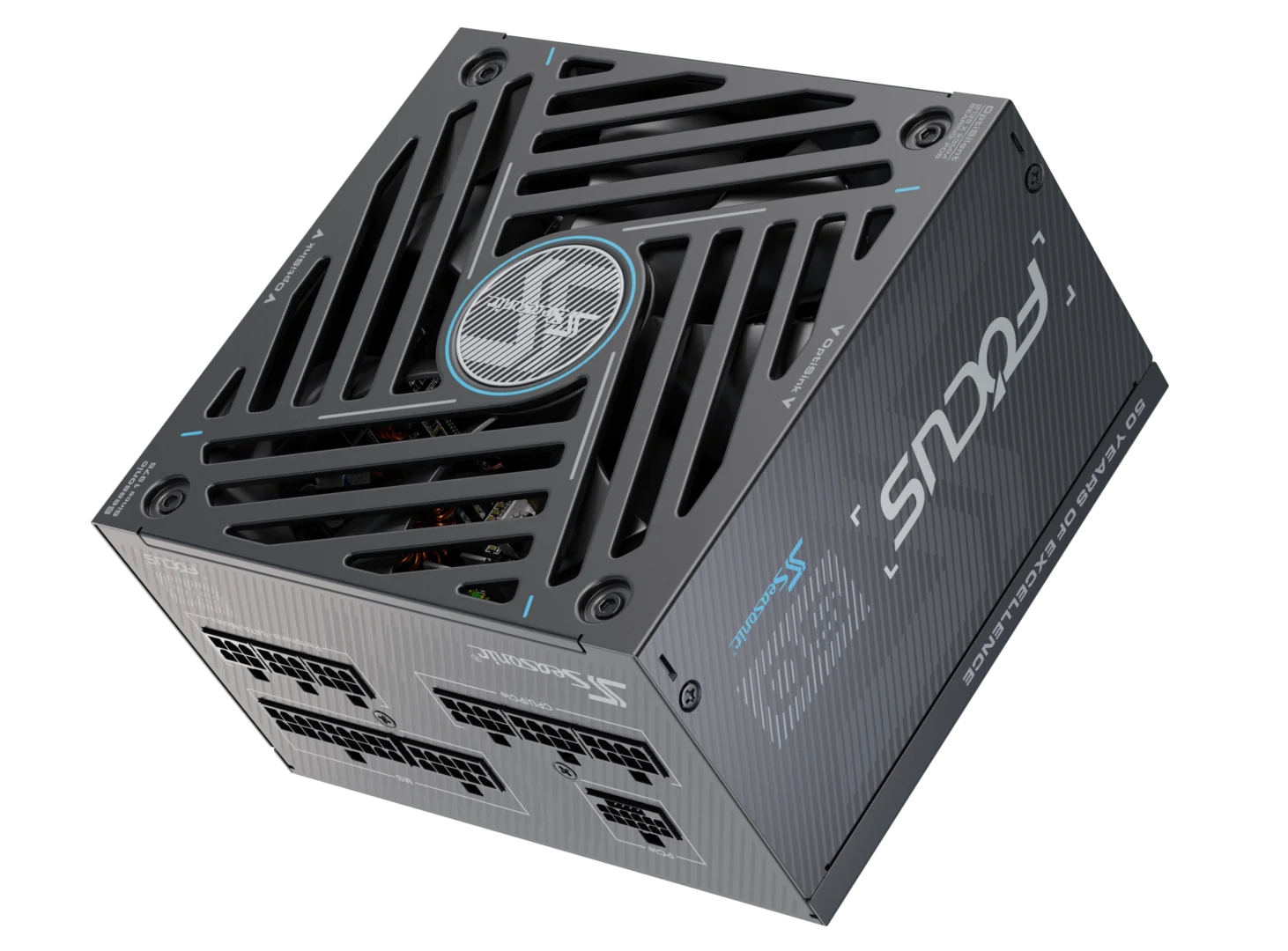

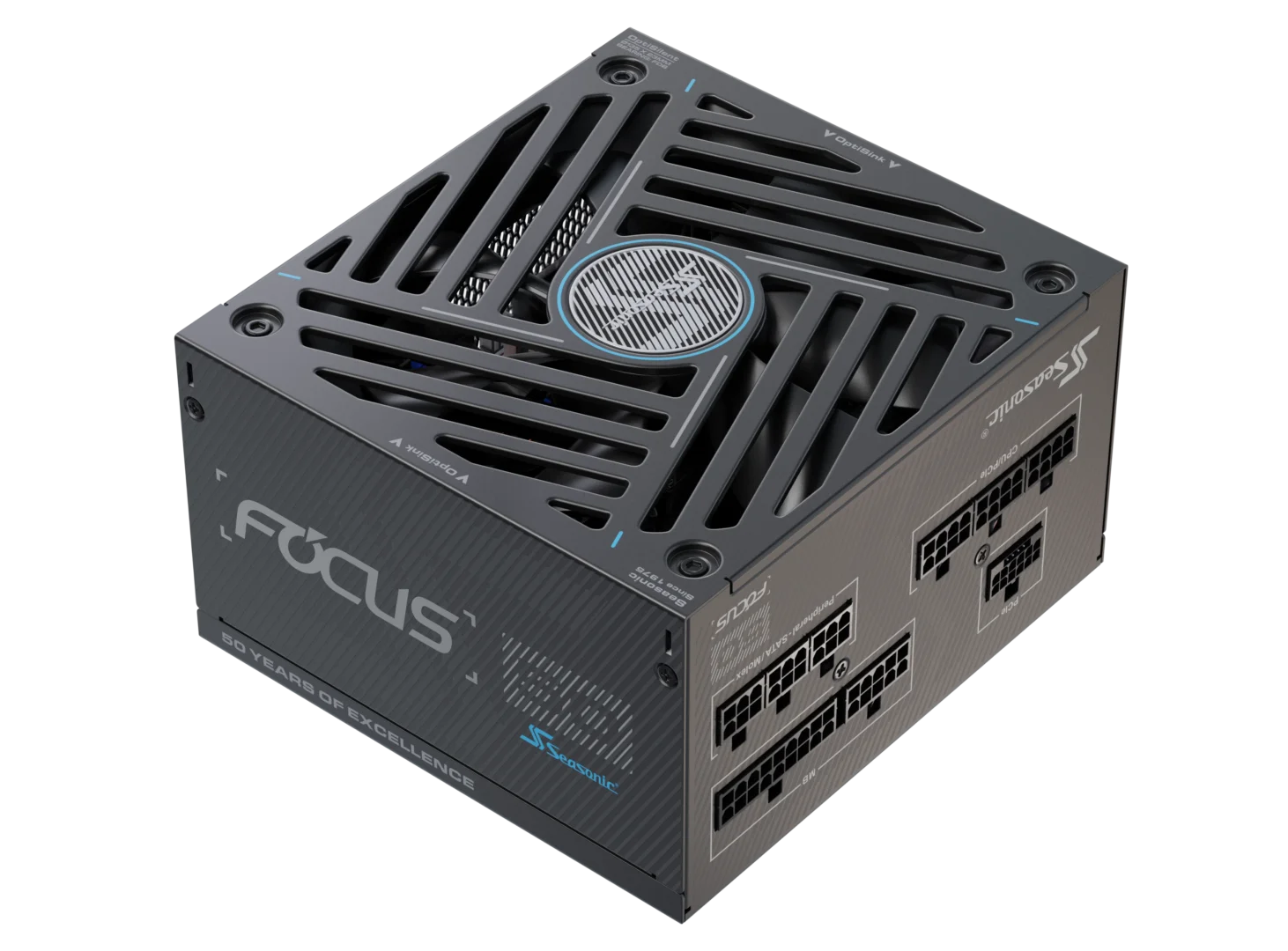

Gallery
1000 W
850 W
750 W
0 /
0
0 /
0
0 /
0
Specifications
1000 W
850 W
750 W
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Gold | |
| Cybenetics Efficiency Level | Platinum | |
| Cybenetics Noise Level | A | |
| Form Factor | ATX/EPS | |
| Fan Information | Fan Size | 135 mm |
| Fan Control | Digital Hybrid Fan Control | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH | |
| Cable Information | Modularity | Fully Modular |
| Cable type | Individual Black Cables with Braided Pattern | |
| Electrical Features | Operating Temperature | 0 - 50 °C |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OCP, OPP, OTP, OVP, SCP, UVP | |
| Safety and Environmental | Safety and EMC | CE, CB, CCC, cTUVus, EAC, FCC, TUV, UKCA, RCM, UA TR, BSMI |
| Environmental Compliance | Energy Star, ErP Lot 6, REACH, RoHS, WEEE | |
| Warranty | 10 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | 100 V - 240 V | |||||
| 13 - 6.5 A | ||||||
| 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 Vsb |
| Maximum Power | 25 A | 25 A | 83 A | 0.3 A | 3 A | |
| 125 W | 996 W | 3.6 W | 15 W | |||
| Total continuous power | 1000 W | |||||
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Gold | |
| Cybenetics Efficiency Level | Platinum | |
| Cybenetics Noise Level | A | |
| Form Factor | ATX/EPS | |
| Fan Information | Fan Size | 135 mm |
| Fan Control | Digital Hybrid Fan Control | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH | |
| Cable Information | Modularity | Fully Modular |
| Cable type | Individual Black Cables with Braided Pattern | |
| Electrical Features | Operating Temperature | 0 - 50 °C |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OCP, OPP, OTP, OVP, SCP, UVP | |
| Safety and Environmental | Safety and EMC | CE, CB, CCC, cTUVus, EAC, FCC, TUV, UKCA, RCM, UA TR, BSMI |
| Environmental Compliance | Energy Star, ErP Lot 6, REACH, RoHS, WEEE | |
| Warranty | 10 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | 100 V - 240 V | |||||
| 11 - 5.5 A | ||||||
| 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 Vsb |
| Maximum Power | 20 A | 20 A | 70 A | 0.3 A | 3 A | |
| 100 W | 840 W | 3.6 W | 15 W | |||
| Total continuous power | 850 W | |||||
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Gold | |
| Cybenetics Efficiency Level | Platinum | |
| Cybenetics Noise Level | A+ | |
| Form Factor | ATX/EPS | |
| Fan Information | Fan Size | 135 mm |
| Fan Control | Digital Hybrid Fan Control | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH | |
| Cable Information | Modularity | Fully Modular |
| Cable type | Individual Black Cables with Braided Pattern | |
| Electrical Features | Operating Temperature | 0 - 50 °C |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OCP, OPP, OTP, OVP, SCP, UVP | |
| Safety and Environmental | Safety and EMC | CE, CB, CCC, cTUVus, EAC, FCC, TUV, UKCA, RCM, UA TR, BSMI |
| Environmental Compliance | Energy Star, ErP Lot 6, REACH, RoHS, WEEE | |
| Warranty | 10 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | 100 V - 240 V | |||||
| 10 - 5 A | ||||||
| 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 Vsb |
| Maximum Power | 20 A | 20 A | 62 A | 0.3 A | 3 A | |
| 100 W | 744 W | 3.6 W | 15 W | |||
| Total continuous power | 750 W | |||||
Specifications may change without prior notice.
Cables
1000 W
850 W
750 W
610 mm
MB (24/20 pins)
1 connector
1 cable
750 mm
CPU (8/4 pins)
1 connector
2 cables
750 mm
PCIe (8/6 pins)
1 connector
2 cables
700 mm
12V-2x6 (12+4 Pins to 12+4 Pins)
1 connector
1 cable
700 mm
PCIe (8/6 pins)
2 connectors
1 cable
500 mm
SATA
4 connectors
2 cables
450 mm
Molex
3 connectors
1 cable
610 mm
MB (24/20 pins)
1 connector
1 cable
750 mm
CPU (8/4 pins)
1 connector
2 cables
750 mm
PCIe (8/6 pins)
1 connector
2 cables
700 mm
12V-2x6 (12+4 Pins to 12+4 Pins)
1 connector
1 cable
700 mm
PCIe (8/6 pins)
2 connectors
1 cable
500 mm
SATA
4 connectors
2 cables
450 mm
Molex
3 connectors
1 cable
610 mm
MB (24/20 pins)
1 connector
1 cable
750 mm
CPU (8/4 pins)
1 connector
2 cables
750 mm
PCIe (8/6 pins)
1 connector
1 cable
700 mm
12V-2x6 (12+4 Pins to 12+4 Pins)
1 connector
1 cable
700 mm
PCIe (8/6 pins)
2 connectors
1 cable
500 mm
SATA
4 connectors
2 cables
450 mm
Molex
3 connectors
1 cable
Specifications may change without prior notice.
Native 12V-2×6 Cable &
Advanced Cable Management
Dual-color 12V-2×6 connectors improve installation visibility and safety, while high-quality cables and patented cable combs ensure stable power delivery and clean, organized routing.
Dual-color connector for safer installation
16AWG high-current cables for stable power
Pure copper conductors for lower resistance
Patented cable comb design for consistent spacing
Cable combs with snap-fit for easy installation
Cable combs for clean and consistent cable routing
-
Datasheet
-
Quick Installation Guide
-
User Manual
-
RoHS Form
