CORE GM
CORE SERIES
The CORE Series is the brand new series that completes the Seasonic lineup. The 80 PLUS® Gold certified CORE Series comes in all three cabling setups, including the fully modular CORE GX, semi-modular CORE GM, and lastly the fixed-cabled CORE GC. The Seasonic Smart and Silent Fan Control automatically adjusts the fan speed according to the temperature inside the power supply. As part of the TUF Gaming Alliance, the CORE Series is the perfect unit to go with your gaming PC.
The availability of the CORE Series depends on your geographic locations. Please contact your local Seasonic representative for more information.
-
The CORE GM Series achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.80 PLUS® Gold Certified
-
Warranty
7 Years
-
CablingSemi-Modular
-
140 mm (L) x 150 mm (W) x 86 mm (H)Dimensions
-
ATX Specifications
ATX 12V
-
80 PLUS® Gold Certified
The CORE GM Series achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load. -
7 Years
Warranty -
Semi-Modular
Cabling -
Dimensions
140 mm (L) x 150 mm (W) x 86 mm (H) -
ATX 12V
ATX Specifications
-
80 PLUS® Gold Certified
The CORE GM Series achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load. -
7 Years
Warranty -
Semi-Modular
Cabling -
Dimensions
140 mm (L) x 150 mm (W) x 86 mm (H) -
ATX 12V
ATX Specifications
80 PLUS® Gold Certified
The CORE GM Series achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.
7 Years
Warranty
Semi-Modular
Cabling
Dimensions
140 mm (L) x 150 mm (W) x 86 mm (H)
ATX 12V
ATX Specifications
80 PLUS® Gold Certified
The CORE GM Series achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.
7 Years
Warranty
Semi-Modular
Cabling
Dimensions
140 mm (L) x 150 mm (W) x 86 mm (H)
ATX 12V
ATX Specifications
80 PLUS® Gold Certified
The CORE GM Series achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.
7 Years
Warranty
Semi-Modular
Cabling
Dimensions
140 mm (L) x 150 mm (W) x 86 mm (H)
ATX 12V
ATX Specifications
Cybenetics - CORE GM-650
TUF Gaming Alliance
S2FC - Smart And Silent Fan Control
The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.

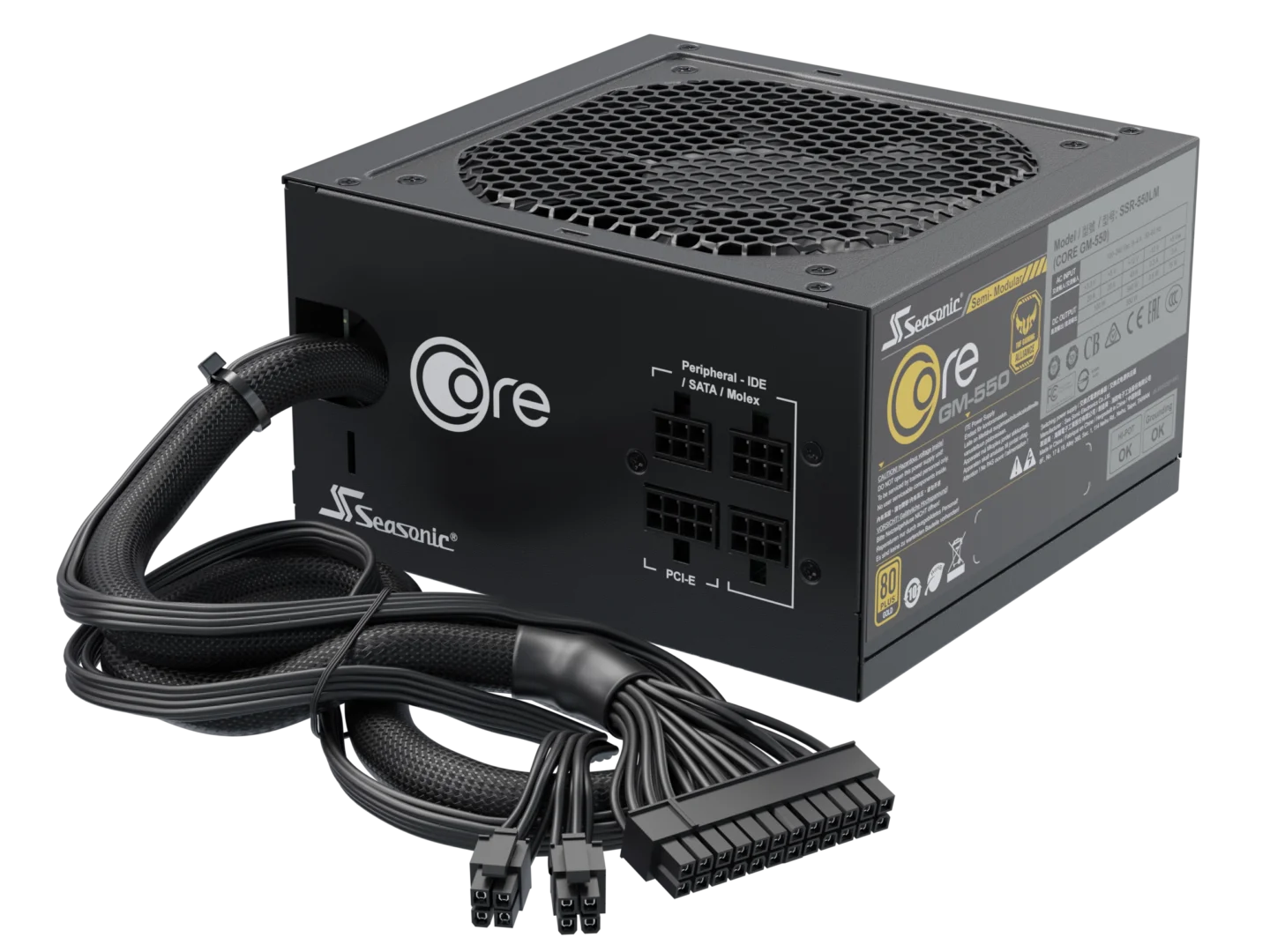

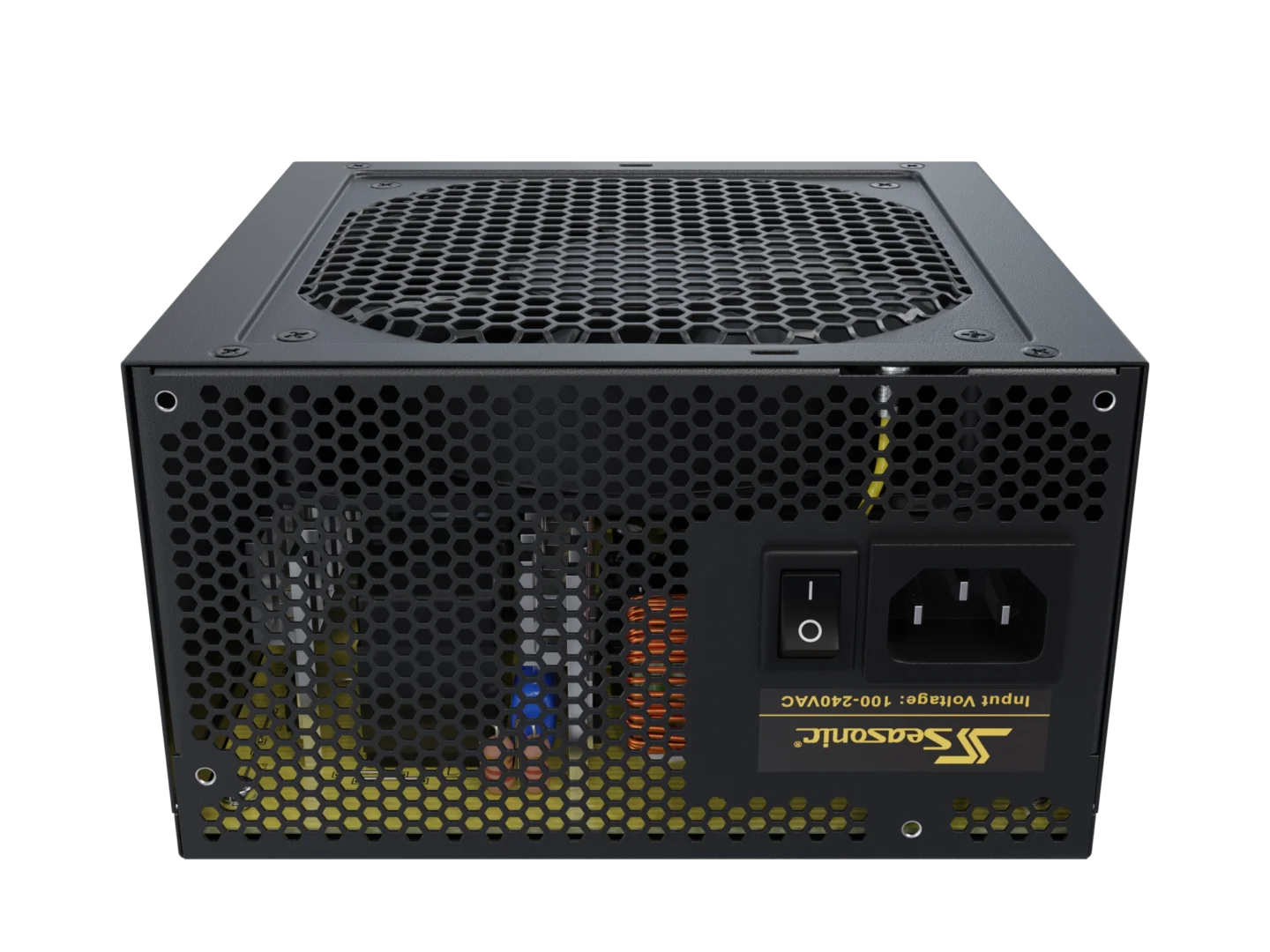

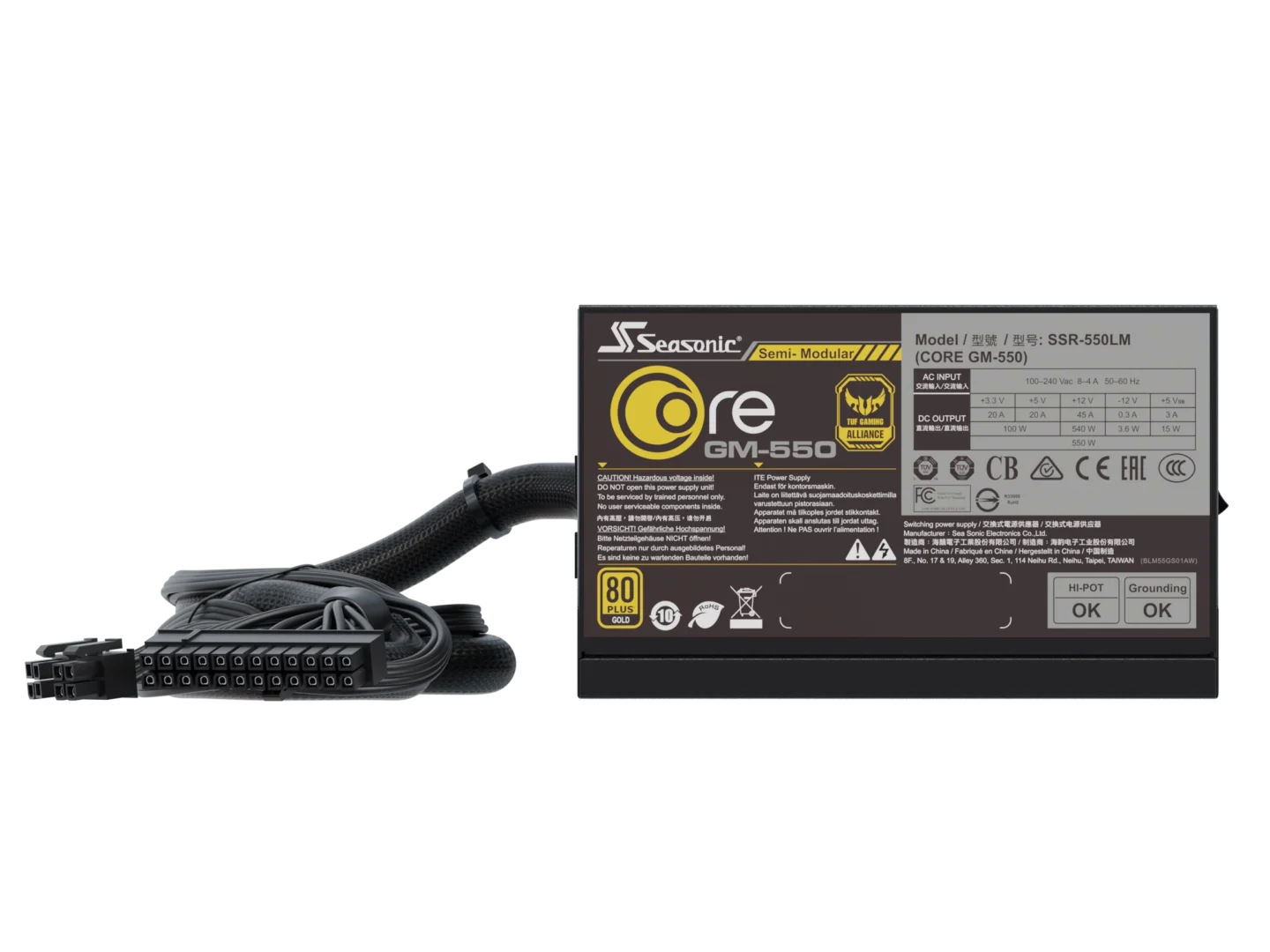

CORE GM
Gallery
650 W
550 W
500 W
0 /
0
0 /
0
0 /
0
Specifications
650 W
550 W
500 W
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Gold | |
| Cybenetics Efficiency Level | Gold | |
| Cybenetics Noise Level | A | |
| Form Factor | ATX/EPS | |
| Dimensions | 140 × 150 × 86 mm | |
| Fan Information | Fan Size | 120 mm |
| Fan Control | Smart and Silent Fan Control | |
| Fan Bearing | Sleeve Bearing | |
| Cable Information | Modularity | Semi-Modular |
| Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly) |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, OCP, OTP, SCP, UVP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, CE, FCC |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 7 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | 100 V - 240 V | |||||
| 9 - 4.5 A | ||||||
| 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 20 A | 20 A | 54 A | 0.3 A | 3 A | |
| 100 W | 648 W | 3.6 W | 15 W | |||
| Total continuous power | 650 W | |||||
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Gold | |
| Cybenetics Efficiency Level | TBA | |
| Cybenetics Noise Level | TBA | |
| Form Factor | ATX/EPS | |
| Dimensions | 140 × 150 × 86 mm | |
| Fan Information | Fan Size | 120 mm |
| Fan Control | Smart and Silent Fan Control | |
| Fan Bearing | Sleeve Bearing | |
| Cable Information | Modularity | Semi-Modular |
| Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly) |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, OCP, OTP, SCP, UVP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, CE, FCC |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 7 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | 100 V - 240 V | |||||
| 8 - 4 A | ||||||
| 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 20 A | 20 A | 45 A | 0.3 A | 3 A | |
| 100 W | 540 W | 3.6 W | 15 W | |||
| Total continuous power | 550 W | |||||
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Gold | |
| Cybenetics Efficiency Level | TBA | |
| Cybenetics Noise Level | TBA | |
| Form Factor | ATX/EPS | |
| Dimensions | 140 × 150 × 86 mm | |
| Fan Information | Fan Size | 120 mm |
| Fan Control | Smart and Silent Fan Control | |
| Fan Bearing | Sleeve Bearing | |
| Cable Information | Modularity | Semi-Modular |
| Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly) |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, OCP, OTP, SCP, UVP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, CE, FCC |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 7 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | 100 V - 240 V | |||||
| 7 - 3.5 A | ||||||
| 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 20 A | 20 A | 41 A | 0.3 A | 3 A | |
| 100 W | 492 W | 3.6 W | 15 W | |||
| Total continuous power | 500 W | |||||
Cables
650 W
550 W
500 W
610 mm
MB (24/20 pins)
1 connector
1 cable
attached
650 mm
CPU (8/4 pins)
1 connector
1 cable
attached
750 mm
PCIe (8/6 pins)
2 connectors
2 cables
attached
810 mm
SATA
4 connectors
1 cable
450 mm
SATA
2 connectors
1 cable
690 mm
Molex
3 connectors
1 cable
610 mm
MB (24/20 pins)
1 connector
1 cable
attached
650 mm
CPU (8/4 pins)
1 connector
1 cable
attached
750 mm
PCIe (8/6 pins)
2 connectors
1 cable
attached
810 mm
SATA
4 connectors
1 cable
450 mm
SATA
2 connectors
1 cable
690 mm
Molex
3 connectors
3 cables
610 mm
MB (24/20 pins)
1 connector
1 cable
attached
650 mm
CPU (8/4 pins)
1 connector
1 cable
attached
750 mm
PCIe (8/6 pins)
2 connectors
1 cable
attached
810 mm
SATA
4 connectors
1 cable
450 mm
SATA
2 connectors
1 cable
690 mm
Molex
3 connectors
1 cable
-
Datasheet
-
Quick Installation Guide
-
User Manual
Specifications may change without prior notice.
