FOCUS GOLD

The Center of Attention

FOCUS GOLD

The FOCUS Gold power supplies are the ideal choice for people who do not want to break the bank, and yet seek the solid power supplies with great reliability and efficiency. The semi-modular cabling design provides the most basic connections while allowing flexibility on the peripherals. The high quality 120 mm Fluid Dynamic Bearing (FDB) fans are very quiet and proven to be very stable over the long run. The 120 mm FDB fan inside is regulated by the Seasonic S2FC fan control, which optimizes the fan speed according to the needs of the system.

80 PLUS^® GOLD

Seasonic was the forerunner of creating the very first 80 PLUS^® Gold certified power supply on the market and since that time it has built a very popular Gold series lineup that covers a full power range of power supplies with impeccable performance and efficiency.

7 Years

Warranty

Semi-modular

Cabling

Dimensions

140 mm (L) x 150 mm (W) x 86 mm (H)

ATX 12 V

80 PLUS^® GOLD

7 Years

Warranty

Semi-modular

Cabling

Dimensions

140 mm (L) x 150 mm (W) x 86 mm (H)

ATX 12 V

80 PLUS^® GOLD

7 Years

Warranty

Semi-modular

Cabling

Dimensions

140 mm (L) x 150 mm (W) x 86 mm (H)

ATX 12 V

80 PLUS^® GOLD

7 Years

Warranty

Semi-modular

Cabling

Dimensions

140 mm (L) x 150 mm (W) x 86 mm (H)

ATX 12 V

FLUID DYNAMIC FAN BEARING

High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces.
As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.

When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces.
As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.

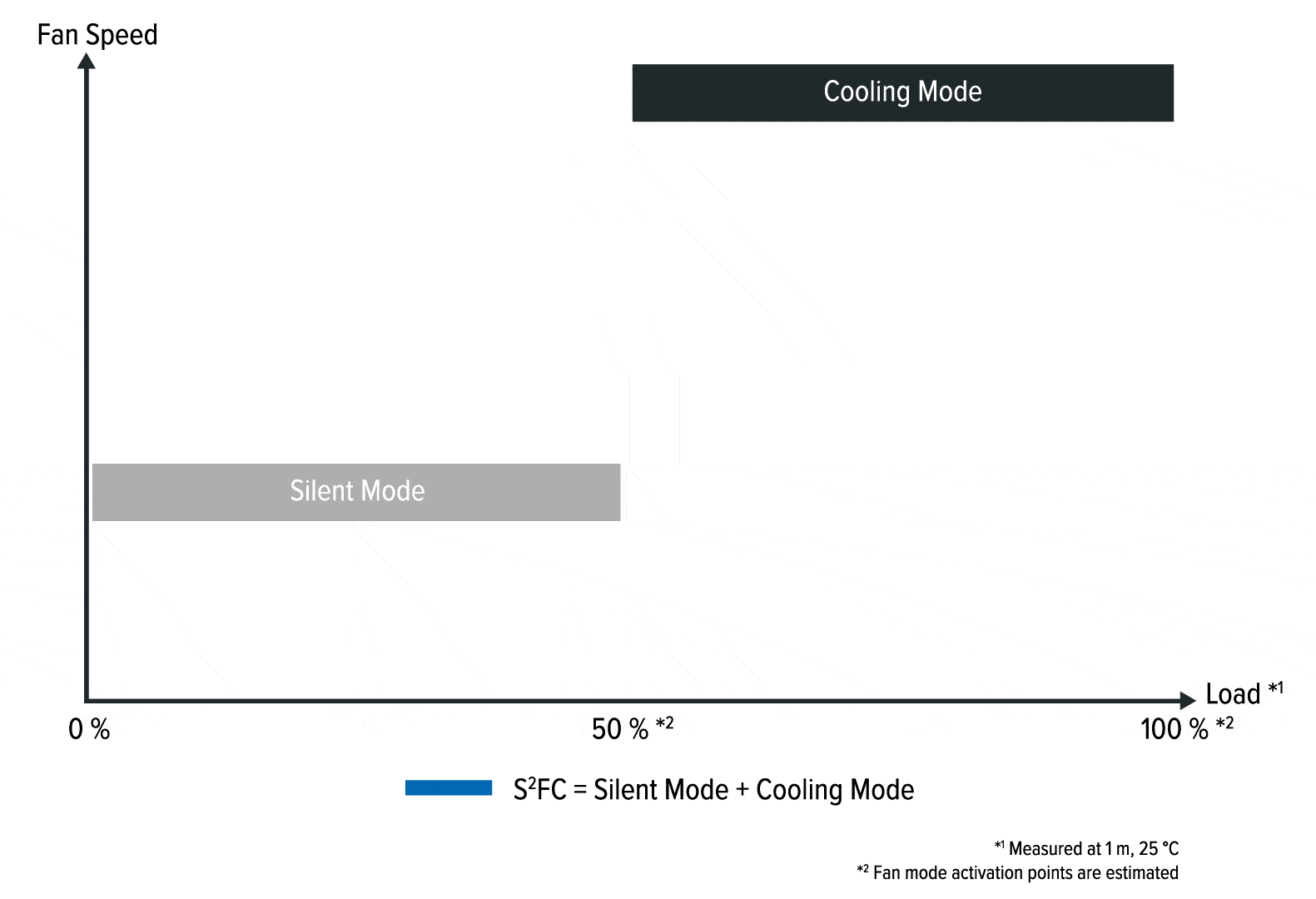

S2FC - SMART AND SILENT FAN CONTROL

The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.

Specifications

750 W

650 W

550 W

450 W

Technical Specifications
80PLUS^®		Gold
Form Factor		ATX/EPS
Dimensions		140 × 150 × 86 mm
Fan Information	Fan Size	120 mm
	Fan Control	S2FC
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Semi-Modular
Cable Information	Cable type	Webbed Cables (Attached) - Flat Black Cables (Modular)
Electrical Features	Operating Temperature	0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly)
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		7 Years

Power Output
AC Input	100 V - 240 V
	10 - 5 A
	50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	20 A	20 A	62 A	0.3 A	3 A
		100 W		744 W	3.6 W	15 W
	Total continuous power	750 W

Technical Specifications
80PLUS^®		Gold
Form Factor		ATX/EPS
Dimensions		140 × 150 × 86 mm
Fan Information	Fan Size	120 mm
	Fan Control	S2FC
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Semi-Modular
Cable Information	Cable type	Webbed Cables (Attached) - Flat Black Cables (Modular)
Electrical Features	Operating Temperature	0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly)
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		7 Years

Power Output
AC Input	100 V - 240 V
	9.5 - 4.5 A
	50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	20 A	20 A	54 A	0.3 A	3 A
		100 W		648 W	3.6 W	15 W
	Total continuous power	650 W

Technical Specifications
80PLUS^®		Gold
Form Factor		ATX/EPS
Dimensions		140 × 150 × 86 mm
Fan Information	Fan Size	120 mm
	Fan Control	S2FC
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Semi-Modular
Cable Information	Cable type	Webbed Cables (Attached) - Flat Black Cables (Modular)
Electrical Features	Operating Temperature	0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly)
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		7 Years

Power Output
AC Input	100 V - 240 V
	8 - 4 A
	50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	20 A	20 A	45 A	0.3 A	3 A
		100 W		540 W	3.6 W	15 W
	Total continuous power	550 W

Technical Specifications
80PLUS^®		Gold
Form Factor		ATX/EPS
Dimensions		140 × 150 × 86 mm
Fan Information	Fan Size	120 mm
	Fan Control	S2FC
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Semi-Modular
Cable Information	Cable type	Webbed Cables (Attached) - Flat Black Cables (Modular)
Electrical Features	Operating Temperature	0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly)
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		7 Years

Power Output
AC Input	100 V - 240 V
	6 - 3 A
	50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	20 A	20 A	37 A	0.3 A	3 A
		100 W		444 W	3.6 W	15 W
	Total continuous power	450 W

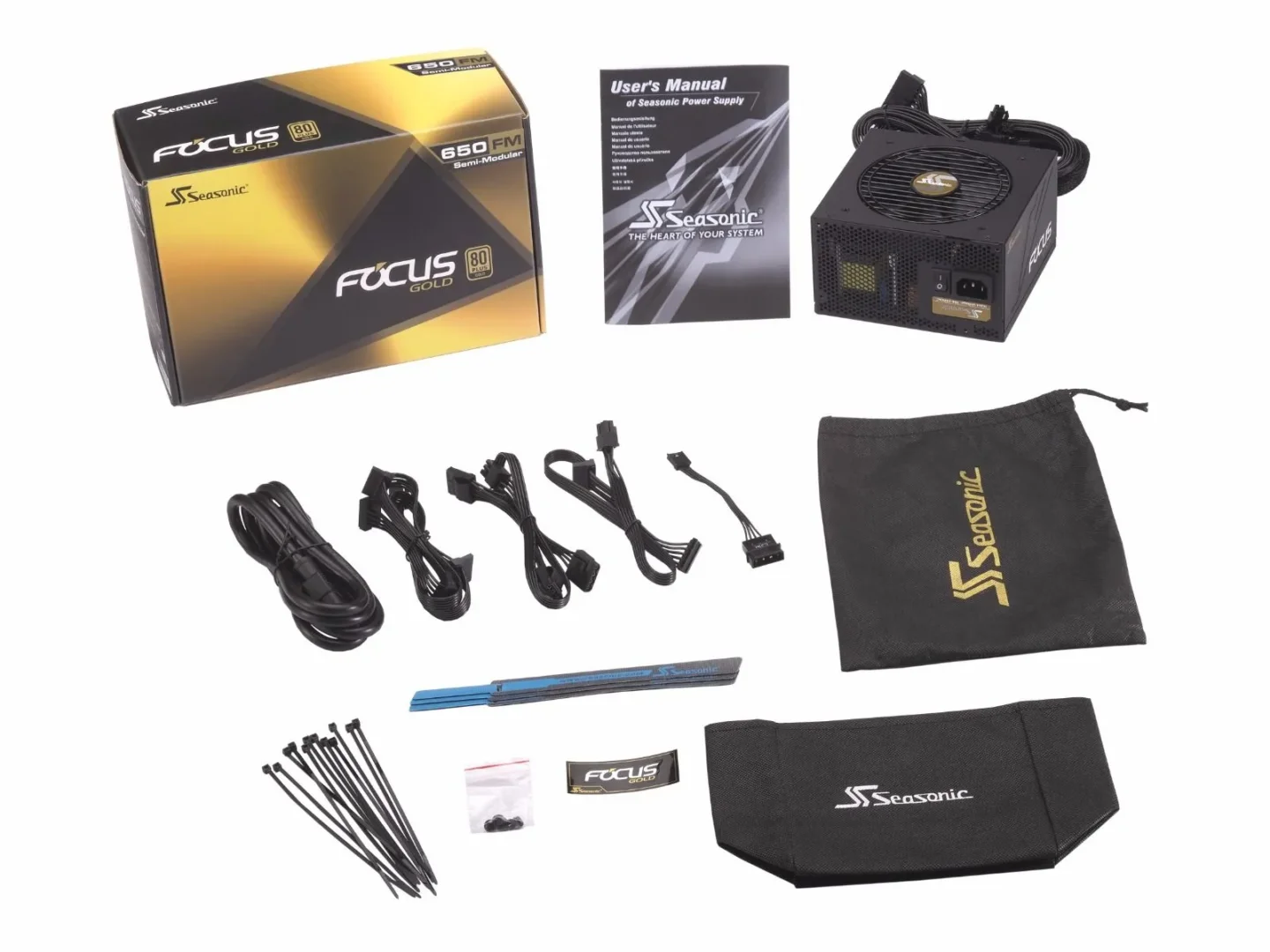

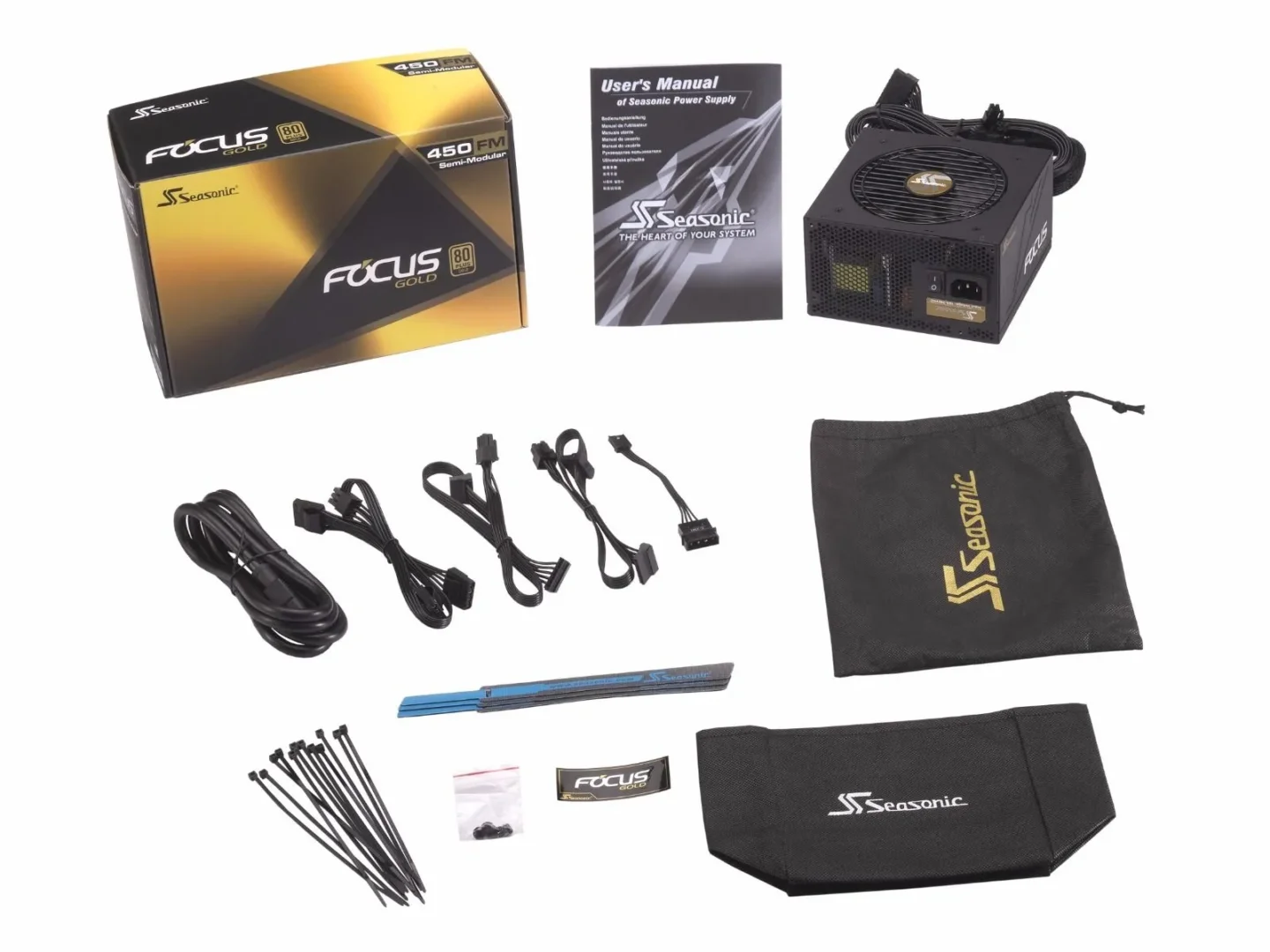

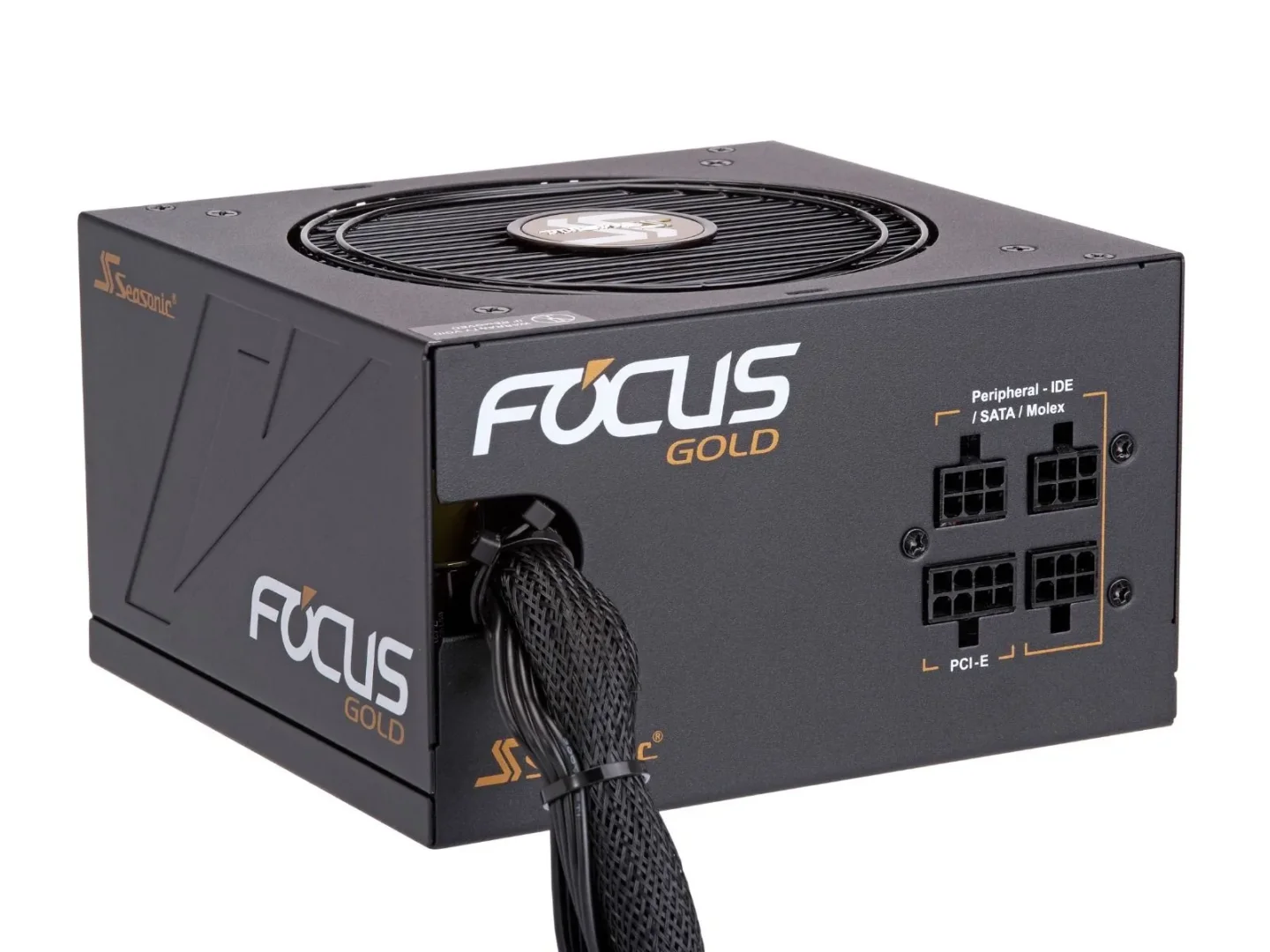

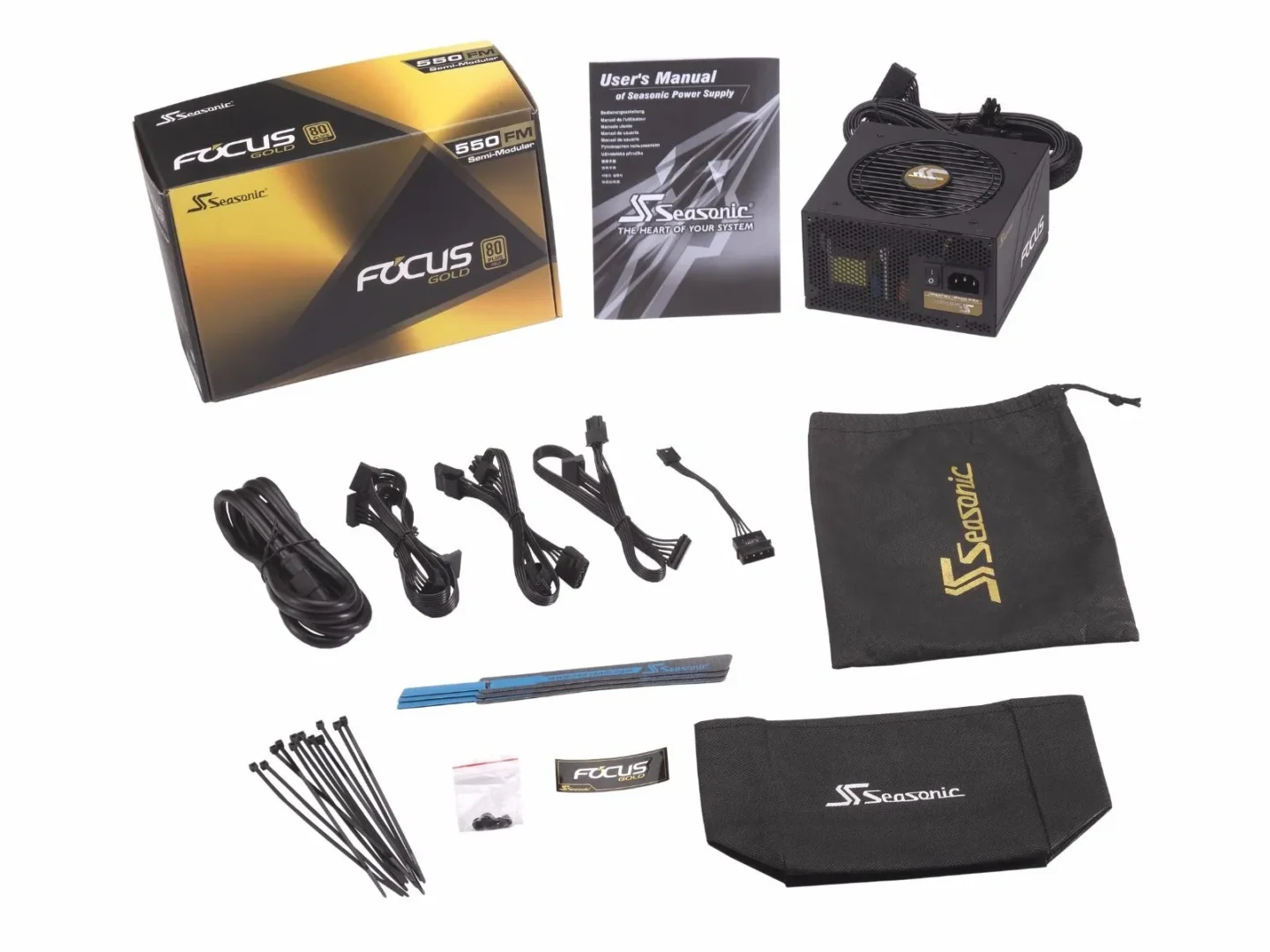

Gallery

750 W

650 W

550 W

450 W

Cables

750 W

650 W

550 W

450 W

610 mm

MB (24/20 pins)

1 connector

1 cable

650 mm

CPU (8/4 pins)

1 connector

1 cable

610 mm

MB (24/20 pins)

1 connector

1 cable

650 mm

CPU (8/4 pins)

1 connector

1 cable

610 mm

MB (24/20 pins)

1 connector

1 cable

650 mm

CPU (8/4 pins)

1 connector

1 cable

610 mm

MB (24/20 pins)

1 connector

1 cable

650 mm

CPU (8/4 pins)

1 connector

1 cable
