FOCUS PLUS PLATINUM

FOCUS PLUS PLATINUM

Seasonic engineers have created a brand new product line based on advanced technology emanating from many years of intensive active research. The result of this development is the solid FOCUS+ Series, which implements modern design and shows outstanding electrical performance. This power supply is small and entirely modular, which will be hard to resist. It is available in 80 PLUS® Platinum and Gold efficiency ratings.

Correction Notice:

Some of our FOCUS PLUS Platinum products are being sold in a packaging box where the 80 PLUS® Efficiency rating in the specifications section is mistakenly printed as 80 PLUS® Gold. We have already taken measures to correct this but we could not recall all the products that had this mistake.

To correctly identify the efficiency level of Seasonic power supplies, we suggest customers to check the 80 PLUS® label on the front cover of the box.

We apologize for any inconvenience caused.

80 PLUS^® PLATINUM

The FOCUS PLUS Platinum Series achieves 80 PLUS^® Platinum certification with its 92 % efficiency at 50 % system load.

10 Years

Warranty

Full Modular

Cabling

Dimensions

140 mm (L) x 150 mm (W) x 86 mm (H)

ATX 12 V

80 PLUS^® PLATINUM

The FOCUS PLUS Platinum Series achieves 80 PLUS^® Platinum certification with its 92 % efficiency at 50 % system load.

10 Years

Warranty

Full Modular

Cabling

Dimensions

140 mm (L) x 150 mm (W) x 86 mm (H)

ATX 12 V

80 PLUS^® PLATINUM

The FOCUS PLUS Platinum Series achieves 80 PLUS^® Platinum certification with its 92 % efficiency at 50 % system load.

10 Years

Warranty

Full Modular

Cabling

Dimensions

140 mm (L) x 150 mm (W) x 86 mm (H)

ATX 12 V

80 PLUS^® PLATINUM

The FOCUS PLUS Platinum Series achieves 80 PLUS^® Platinum certification with its 92 % efficiency at 50 % system load.

10 Years

Warranty

Full Modular

Cabling

Dimensions

140 mm (L) x 150 mm (W) x 86 mm (H)

ATX 12 V

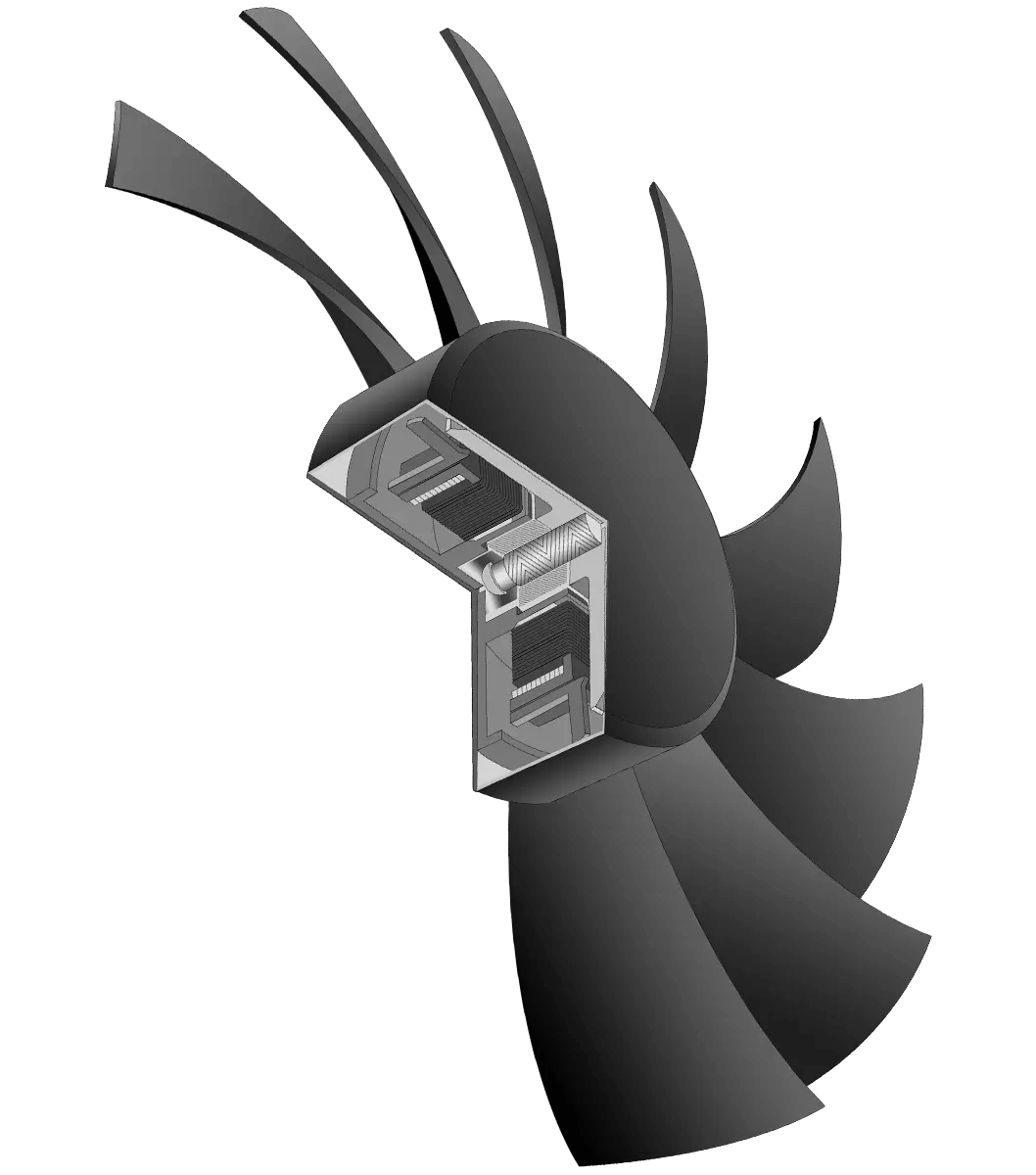

FLUID DYNAMIC FAN BEARING

High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces.
As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.

When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces.
As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.

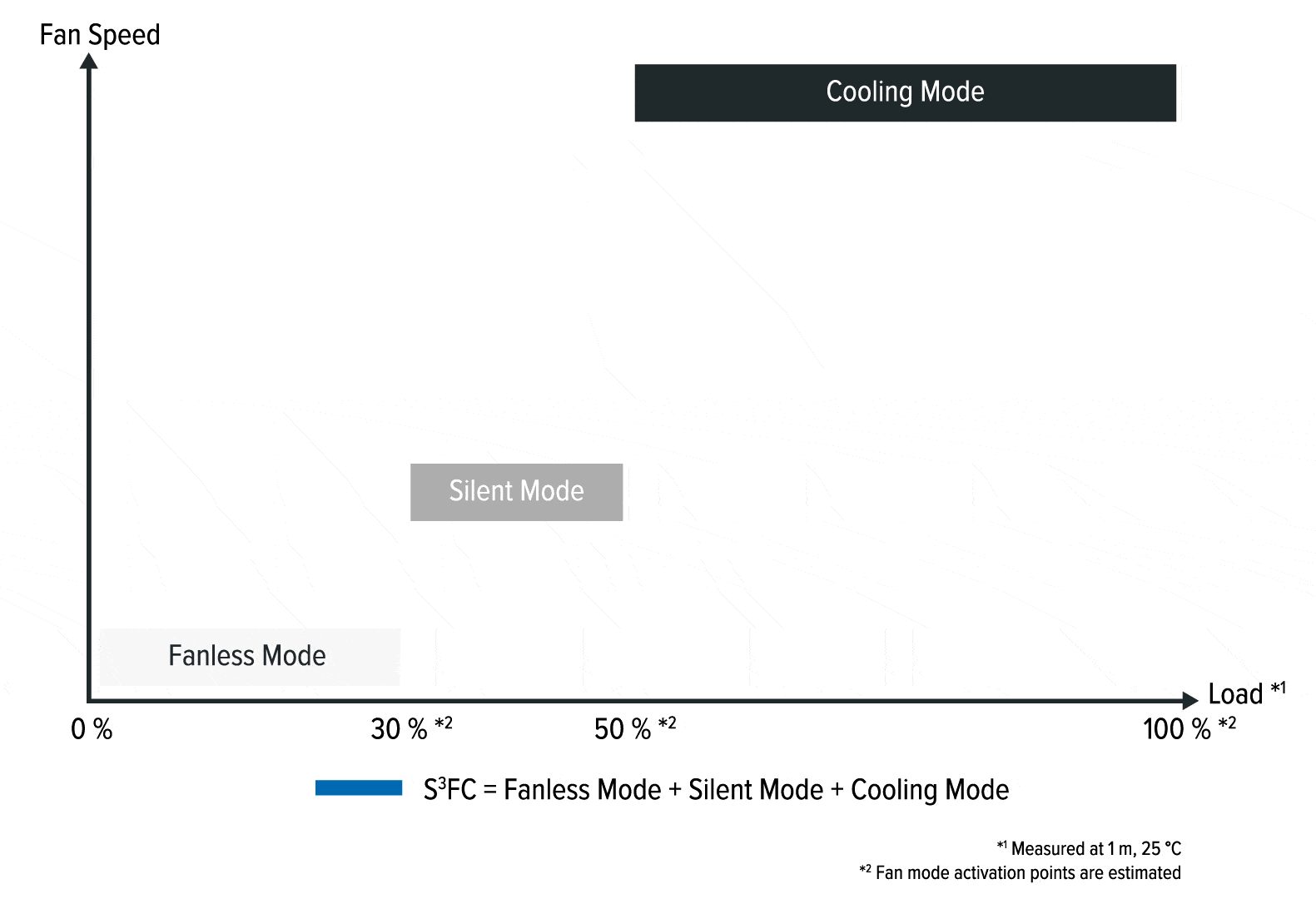

Hybrid Silent Fan Control – Fanless up to about 30 % load

The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal balance between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.

Specifications

850 W

750 W

650 W

550 W

Technical Specifications
80PLUS^®		Platinum
Cybenetics Efficiency Level		ETA-A
Cybenetics Noise Level		Lambda A-
Form Factor		ATX/EPS
Dimensions		140 × 150 × 86 mm
Fan Information	Fan Size	120 mm
	Fan Control	S3FC (including Fanless Mode)
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Fully Modular
Cable Information	Cable type	Flat Black Cables
Electrical Features	Operating Temperature	0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly)
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		10 Years

Power Output
AC Input	100 V - 240 V
	11 - 5.5 A
	50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	20 A	20 A	70 A	0.3 A	3 A
		100 W		840 W	3.6 W	15 W
	Total continuous power	850 W

Technical Specifications
80PLUS^®		Platinum
Cybenetics Efficiency Level		ETA-A
Cybenetics Noise Level		Lambda A+
Form Factor		ATX/EPS
Dimensions		140 × 150 × 86 mm
Fan Information	Fan Size	120 mm
	Fan Control	S3FC (including Fanless Mode)
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Fully Modular
Cable Information	Cable type	Flat Black Cables
Electrical Features	Operating Temperature	0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly)
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		10 Years

Power Output
AC Input	100 V - 240 V
	10 - 5 A
	50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	20 A	20 A	62 A	0.3 A	3 A
		100 W		744 W	3.6 W	15 W
	Total continuous power	750 W

Technical Specifications
80PLUS^®		Platinum
Cybenetics Efficiency Level		ETA-A
Cybenetics Noise Level		Lambda A-
Form Factor		ATX/EPS
Dimensions		140 × 150 × 86 mm
Fan Information	Fan Size	120 mm
	Fan Control	S3FC (including Fanless Mode)
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Fully Modular
Cable Information	Cable type	Flat Black Cables
Electrical Features	Operating Temperature	0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly)
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		10 Years

Power Output
AC Input	100 V - 240 V
	9 - 4.5 A
	50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	20 A	20 A	54 A	0.3 A	3 A
		100 W		648 W	3.6 W	15 W
	Total continuous power	650 W

Technical Specifications
80PLUS^®		Platinum
Cybenetics Efficiency Level		ETA-A
Cybenetics Noise Level		Lambda A++
Form Factor		ATX/EPS
Dimensions		140 × 150 × 86 mm
Fan Information	Fan Size	120 mm
	Fan Control	S3FC (including Fanless Mode)
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Fully Modular
Cable Information	Cable type	Flat Black Cables
Electrical Features	Operating Temperature	0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly)
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		10 Years

Power Output
AC Input	100 V - 240 V
	8 - 4 A
	50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	20 A	20 A	45 A	0.3 A	3 A
		100 W		540 W	3.6 W	15 W
	Total continuous power	550 W

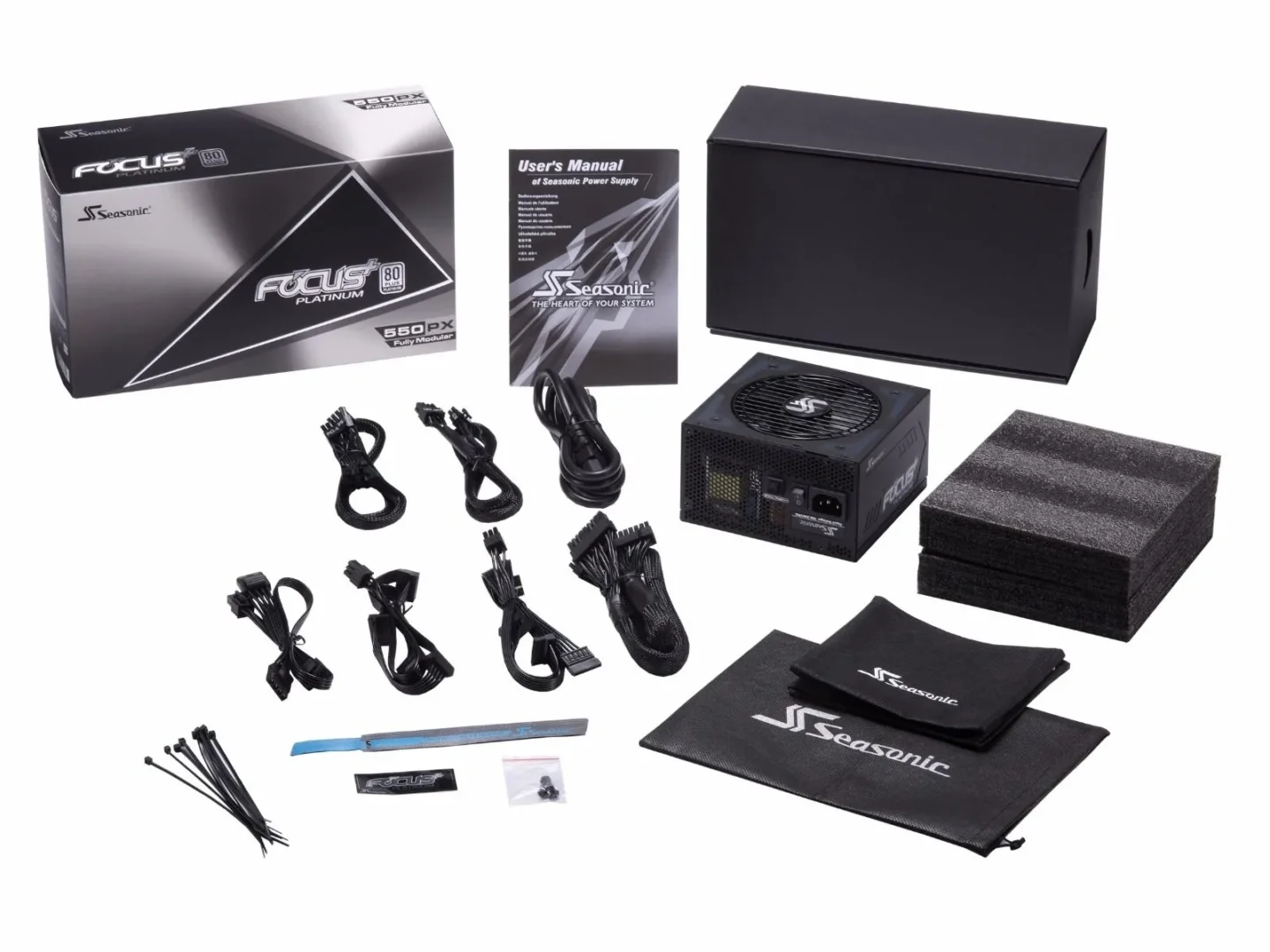

Gallery

850 W

750 W

650 W

550 W

Cables

850 W

750 W

650 W

550 W

610 mm

MB (24/20 pins)

1 connector

1 cable

650 mm

CPU (8/4 pins)

1 connector

2 cables

750 mm

PCIe (8/6 pins)

2 connectors

3 cables

810 mm

SATA

4 connectors

2 cables

570 mm

SATA

2 connectors

1 cable

690 mm

Molex

3 connectors

1 cable

101 mm

Molex to FDD Adapter

1 connector

1 cable

610 mm

MB (24/20 pins)

1 connector

1 cable

650 mm

CPU (8/4 pins)

1 connector

2 cables

750 mm

PCIe (8/6 pins)

2 connectors

2 cables

810 mm

SATA

4 connectors

2 cables

690 mm

Molex

3 connectors

1 cable

101 mm

Molex to FDD Adapter

1 connector

1 cable

610 mm

MB (24/20 pins)

1 connector

1 cable

650 mm

CPU (8/4 pins)

1 connector

1 cable

750 mm

PCIe (8/6 pins)

2 connectors

2 cables

810 mm

SATA

4 connectors

2 cables

690 mm

Molex

3 connectors

1 cable

101 mm

Molex to FDD Adapter

1 connector

1 cable

610 mm

MB (24/20 pins)

1 connector

1 cable

650 mm

CPU (8/4 pins)

1 connector

1 cable

750 mm

PCIe (8/6 pins)

2 connectors

1 cable

810 mm

SATA

4 connectors

1 cable

570 mm

SATA

2 connectors

1 cable

690 mm

Molex

3 connectors

1 cable

101 mm

Molex to FDD Adapter

1 connector

1 cable
