MAXFlow 120 mm White
MAXFlow 120 mm White
With the rise of high-performance graphics cards and more powerful cooling solutions, Sea Sonic has recognized the growing demand for effective heat dissipation.
The MAXFlow White Fan is engineered to deliver exceptional airflow, redefining high-performance cooling. Its robust design features 30 mm deep, arc-shaped blades, dual ball bearings, and a three-phase brushless DC motor with speed control—striking the perfect balance between power and quiet operation.
Offering cutting-edge design, competitive pricing, and a 5-year manufacturer’s warranty, MAXFlow White Fans are the ideal choice for users seeking top-tier cooling performance at an affordable price from a trusted brand.
-
High Air Flow Fan
30 mm Fan Thickness
-

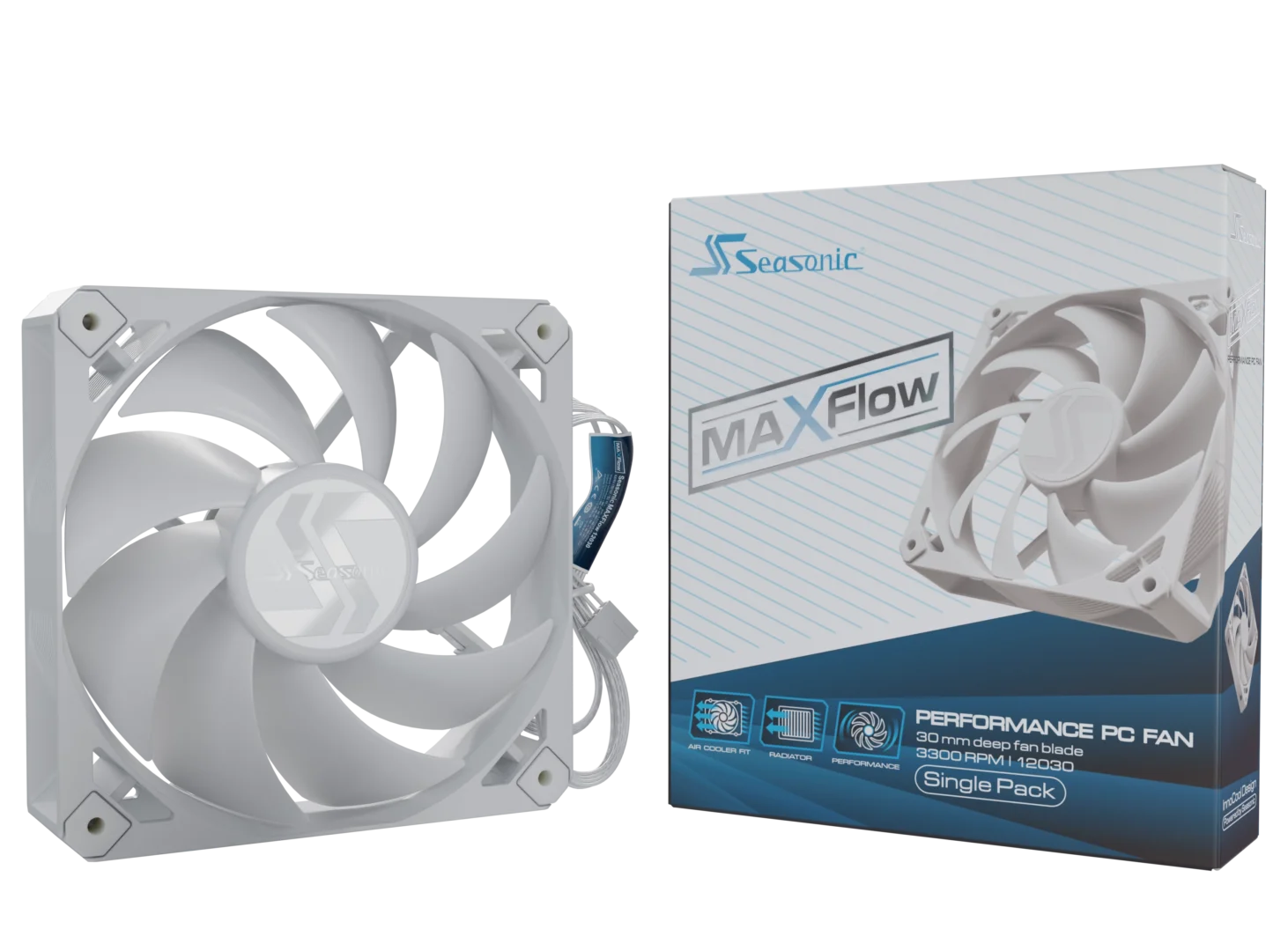

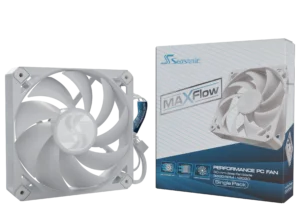

1-PackPackaging
-
120 mm (L) x 120 mm (H) x 30 mm (W)
Dimensions
-

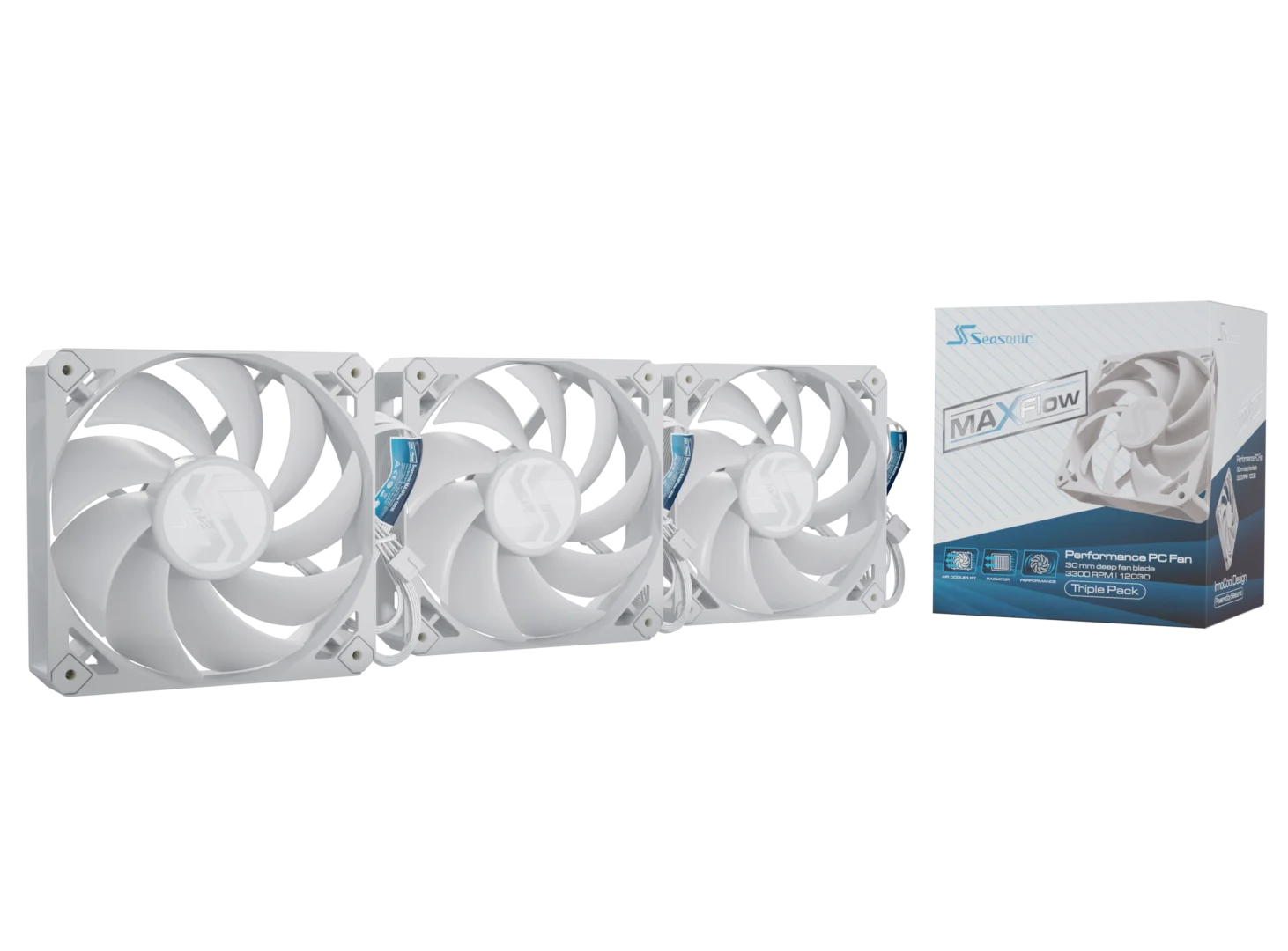

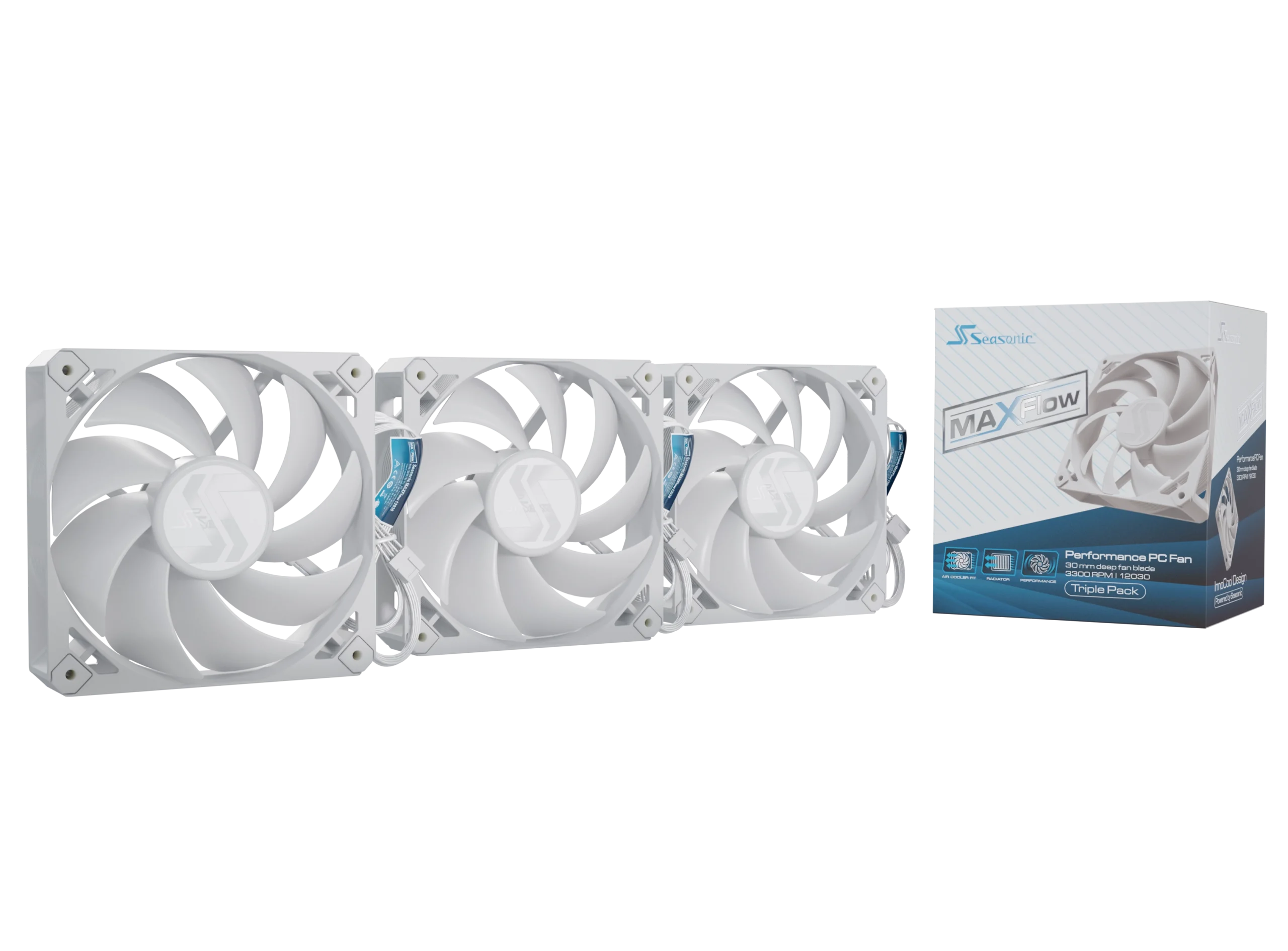

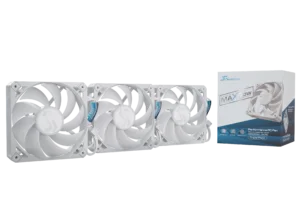

3-Pack
Packaging
-
5 Years
Warranty
Packaging
Dimensions
Packaging
MAXFlow White Unboxing Videos

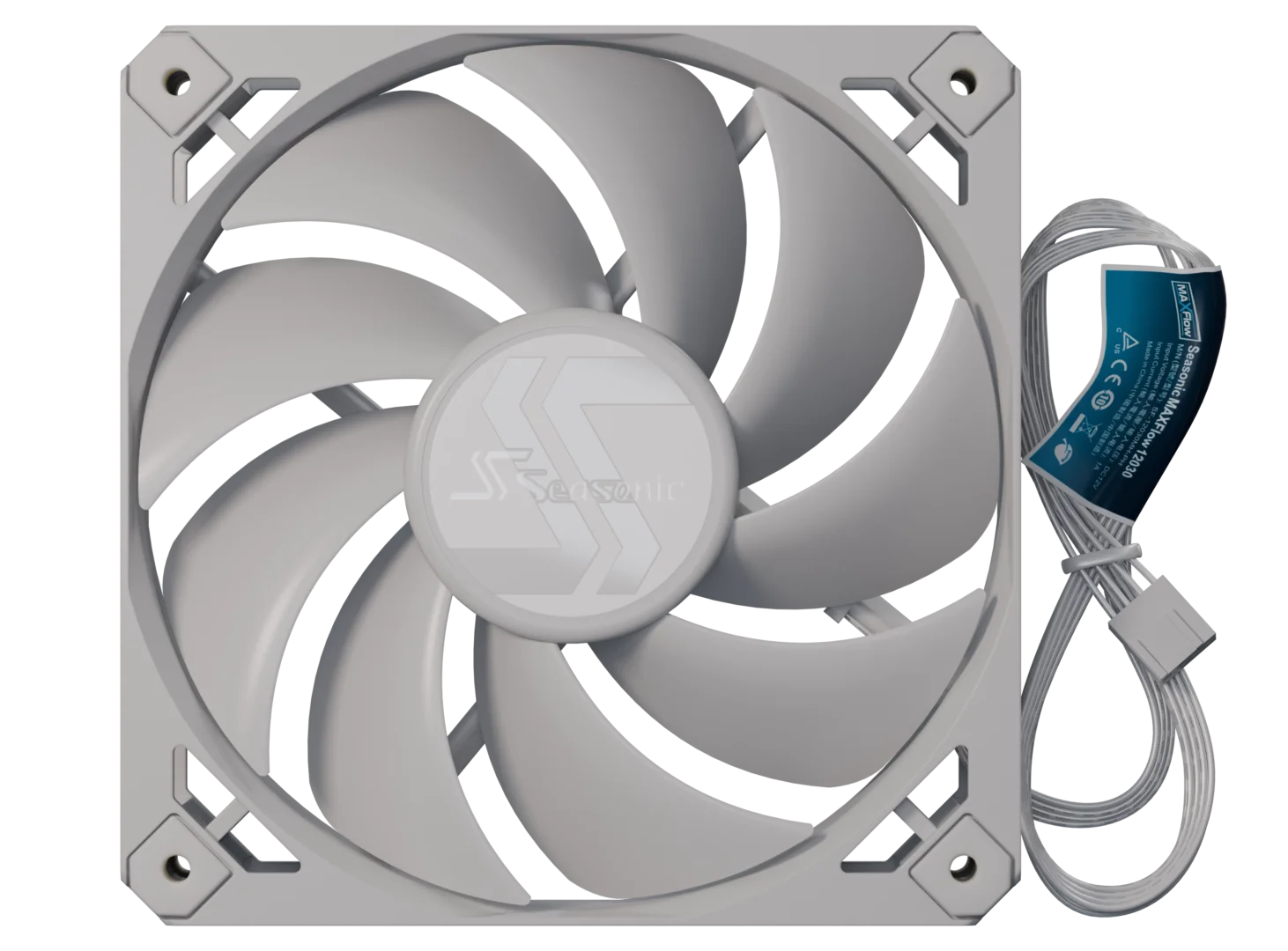

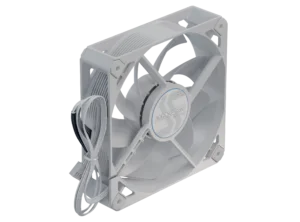

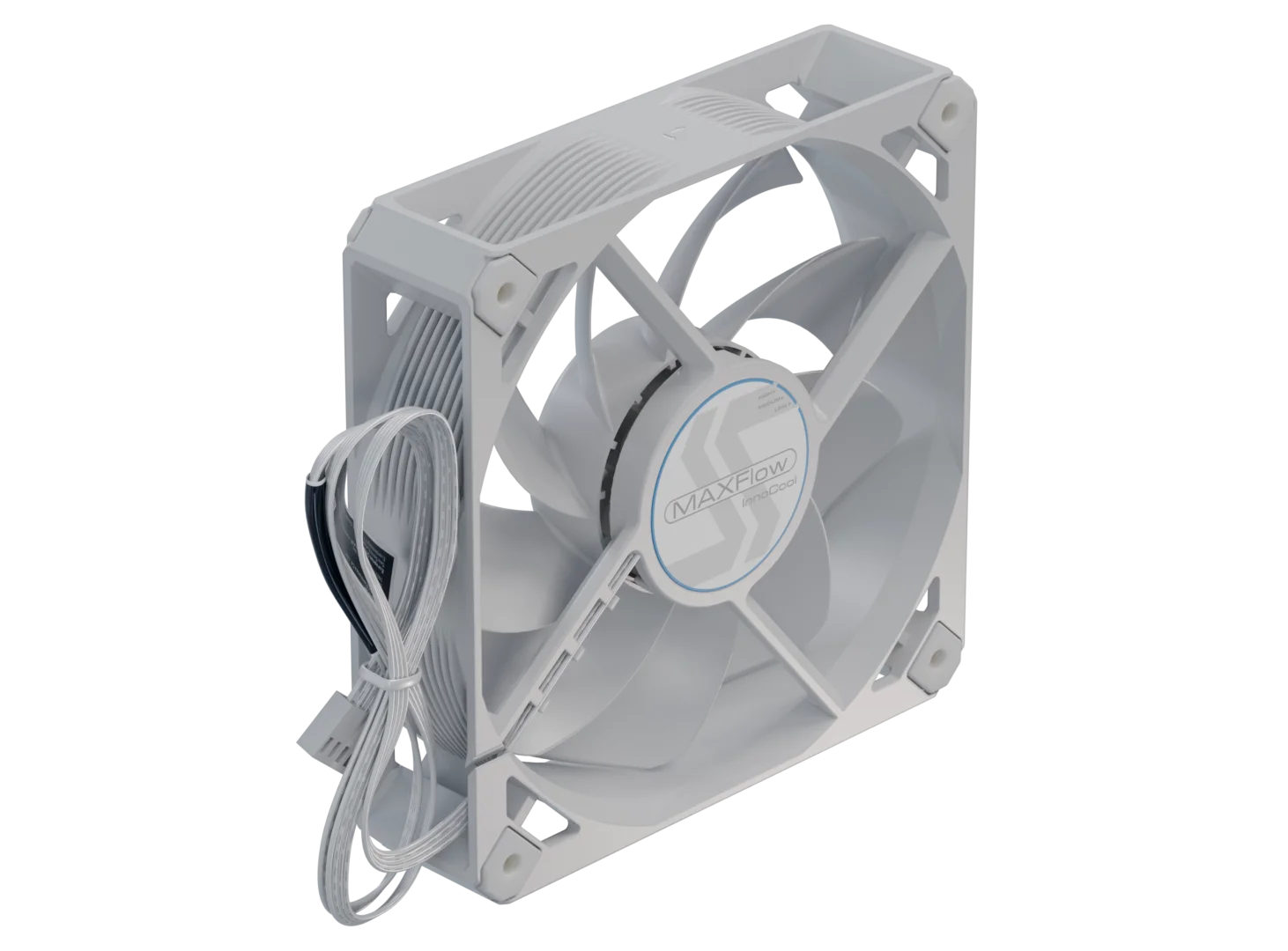

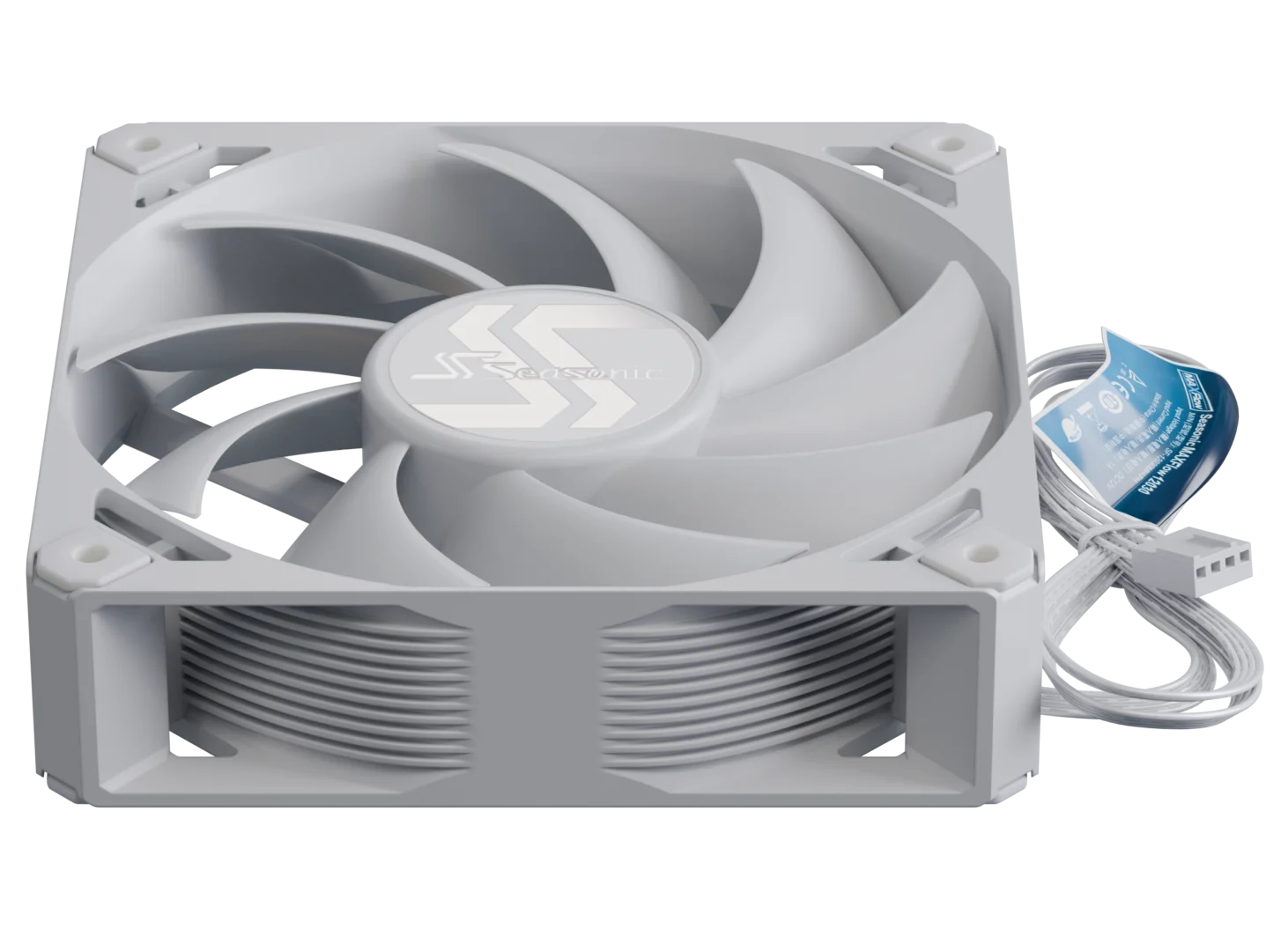

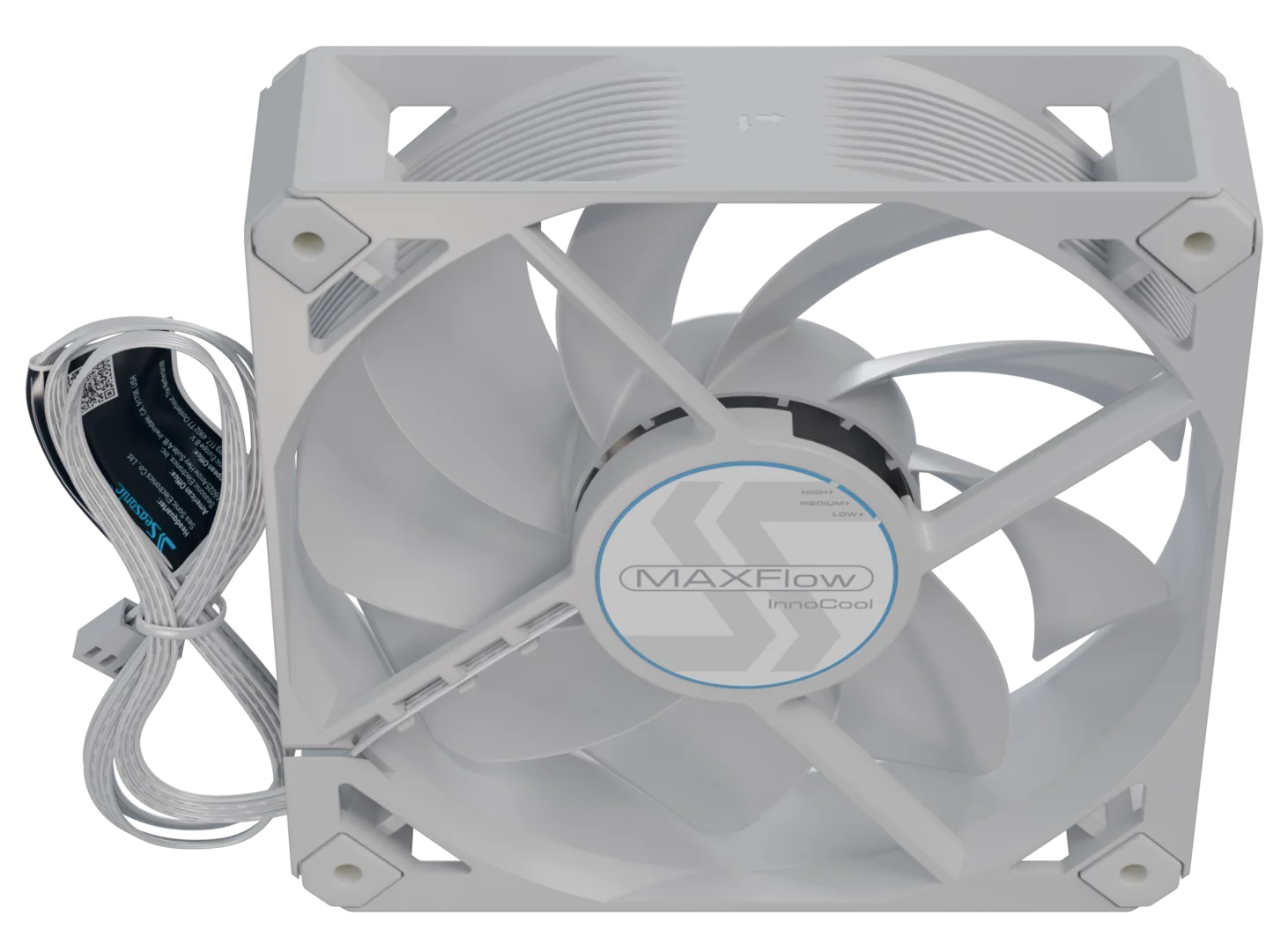

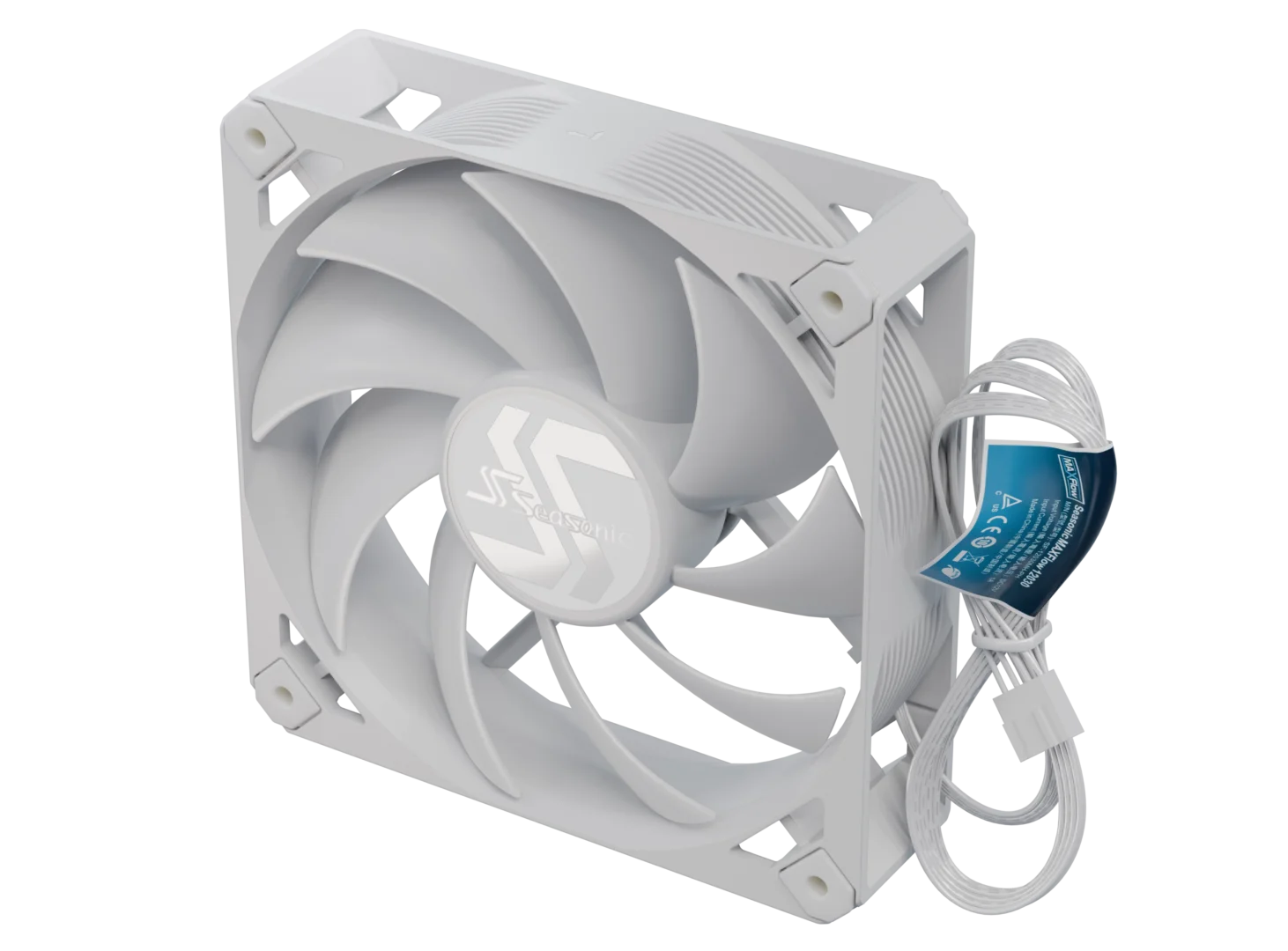

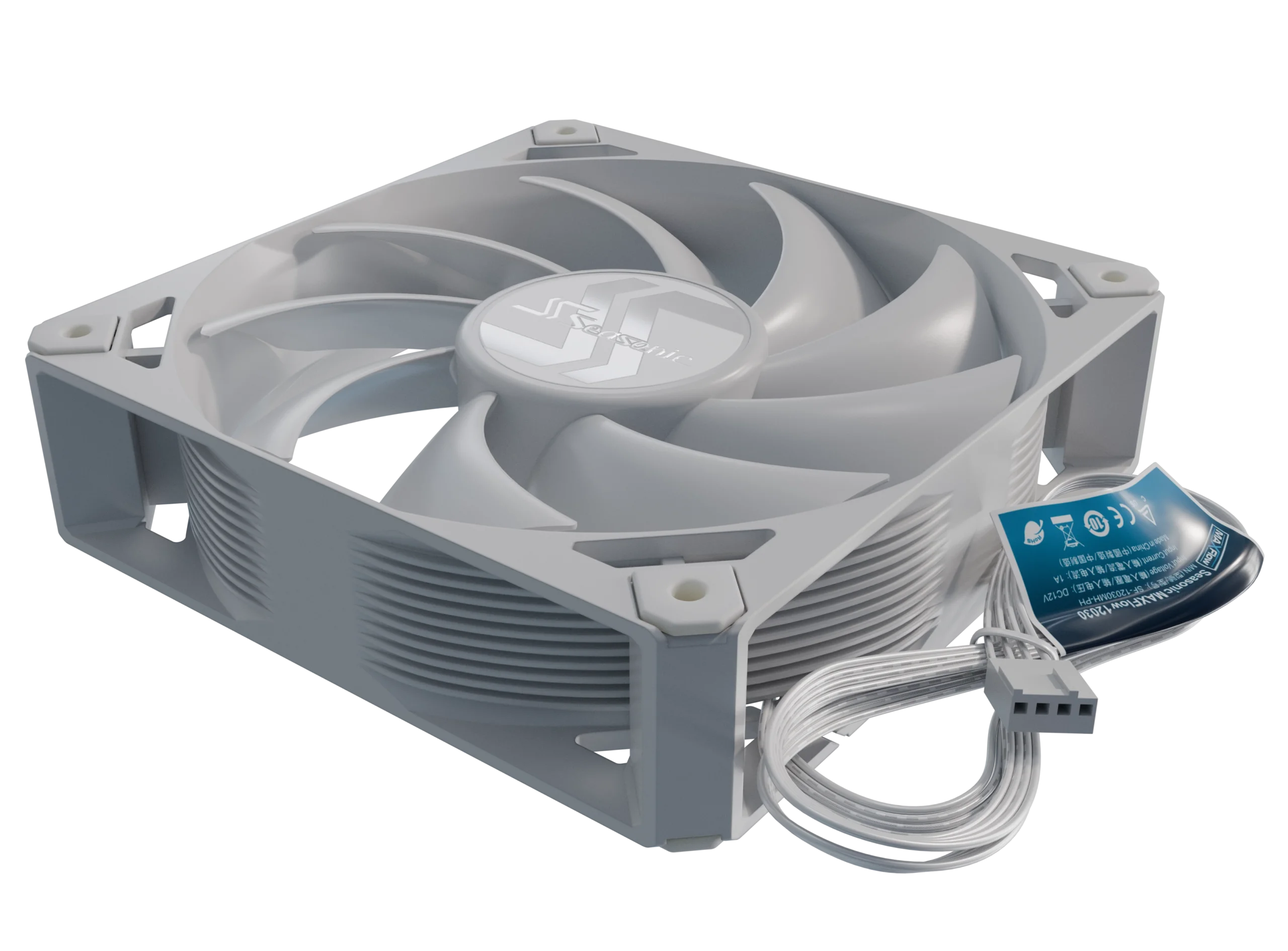

Exterior Appearance

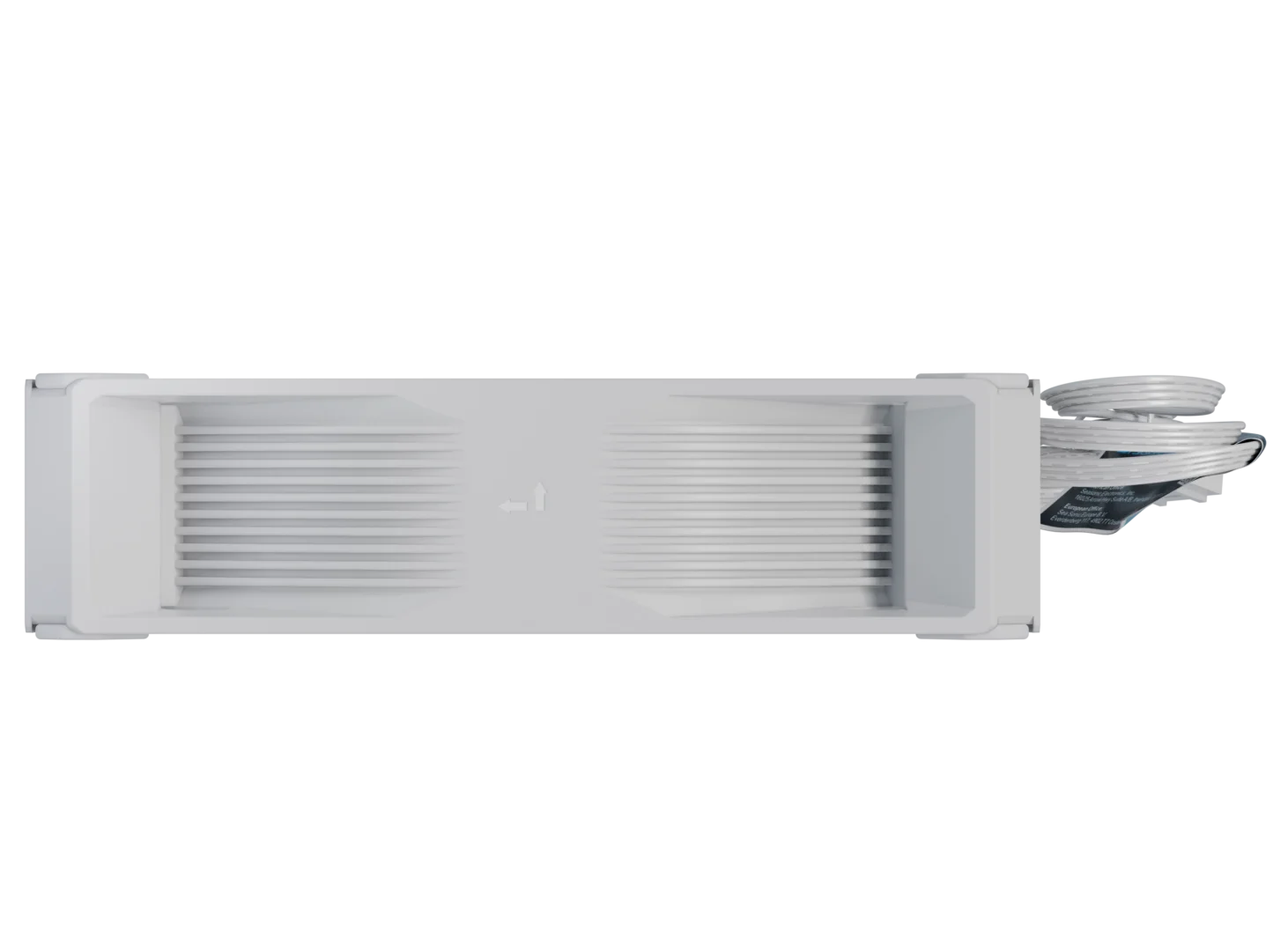

Featuring a reinforced frame design for high-speed applications, noise-dampening pads on all four corners, and a silent frame to reduce spinning noise, MAXFlow White achieves the perfect balance of power, airflow, and noise, ensuring optimal cooling performance with minimal sound.
MAXFlow White fans can reach speeds of up to 3300 RPM. A reverse fan design, combined with arc-shaped blades, promotes high-volume airflow for superior cooling performance.
Quality Construction
Thanks to carefully engineered, precision molding technology, the gap tolerance between the blade and the frame is nearly as tight as that of LCP blades and fan frames, optimizing airflow and efficiency for maximum performance.

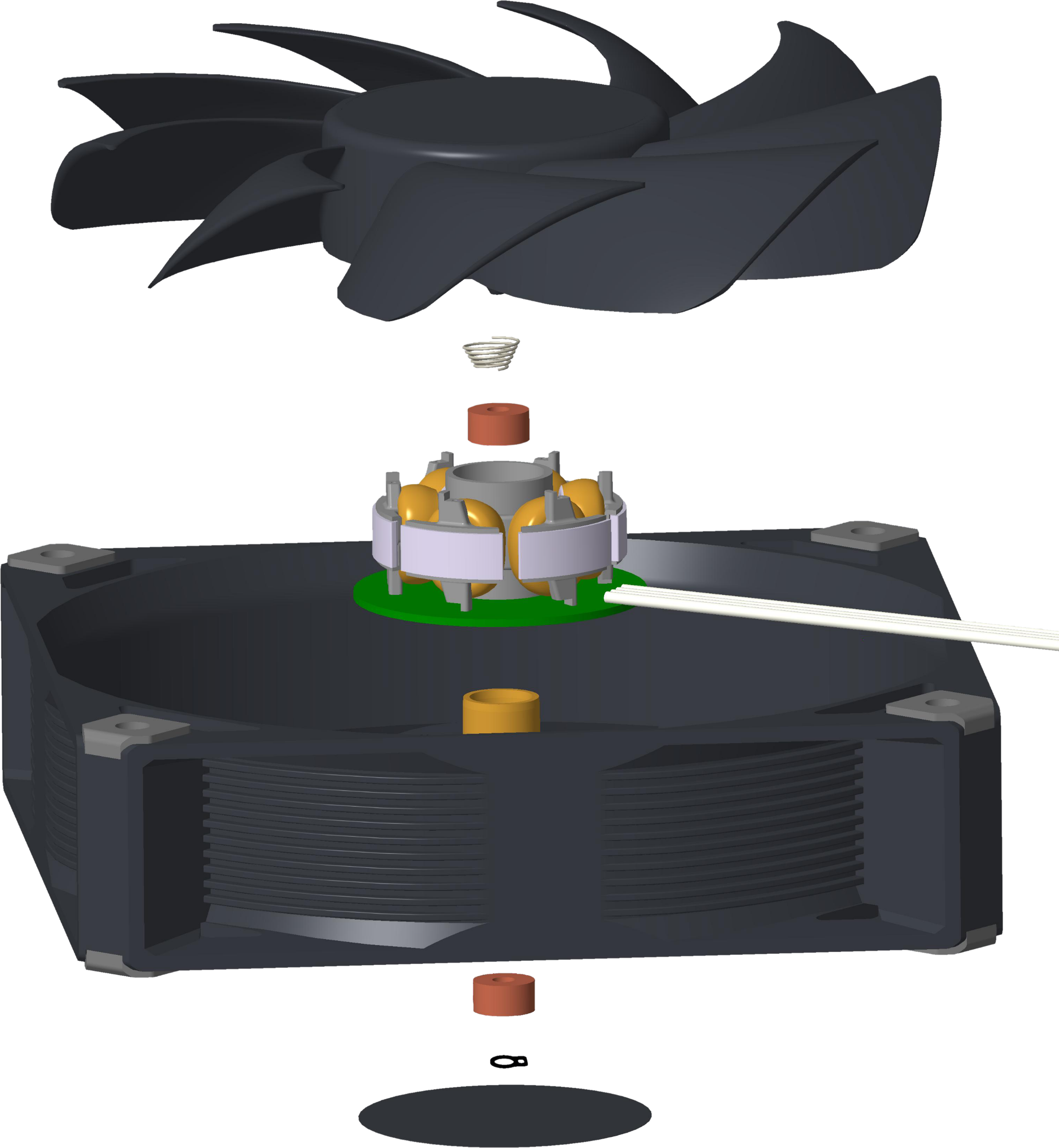

By incorporating dual ball bearings on the shaft and a three-phase motor, the design ensures smooth rotation with a well-balanced blade speed, extending the lifespan to up to 70,000 hours.

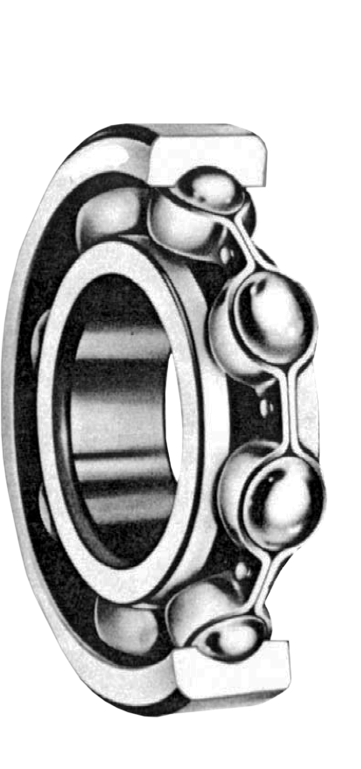

Durable Japanese NMB Ball Bearings
NMB ball bearings are made of durable, corrosion resistant materials under high precision manufacturing processes. These top-quality bearings provide long-term rotation consistency, minimize friction loss, and extend the life cycle of the fan.

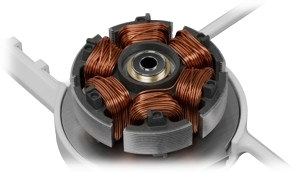

Three-Phase Brushless DC Motor
Brushless DC motors eliminate the wear of the brushes and the noise caused by brush contact. With minimal vibration and electrical noise, brushless DC motors result in longer life and higher efficiency. The Three-phase Brushless DC Motor in the MAXFlow fan ensures stable rotations and helps to decrease power loss.

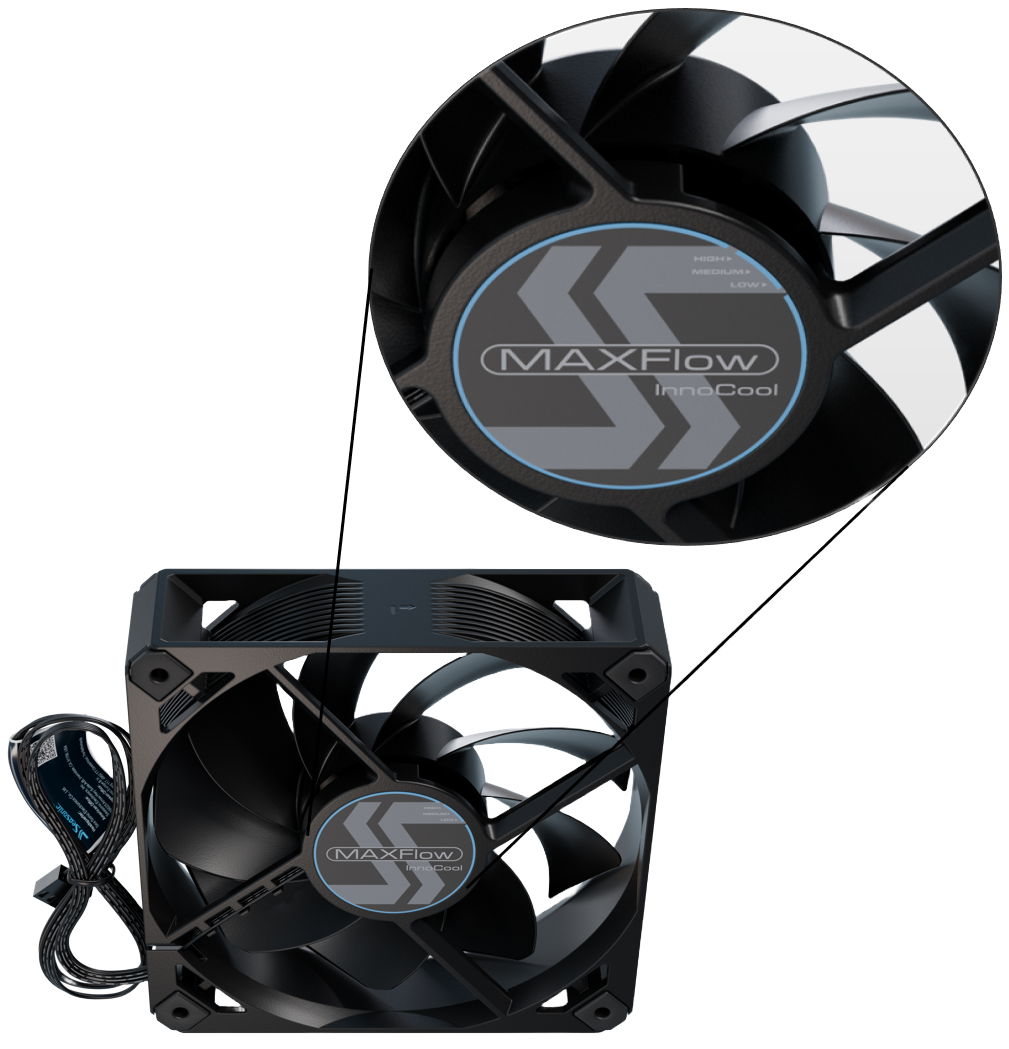

Speed Select Switch
Engineered for versatility, the MAXFlow White Fan features a three-speed selector switch to suit various applications:
- Low: 0–1000 RPM – Ideal for quiet builds and general chassis cooling.
- Medium: 0–2000 RPM – Perfect for radiators or air coolers in mid-range systems.
- High: 0–3300 RPM – Designed for high-performance cooling in overclocked systems, gaming setups, or powerful workstations.

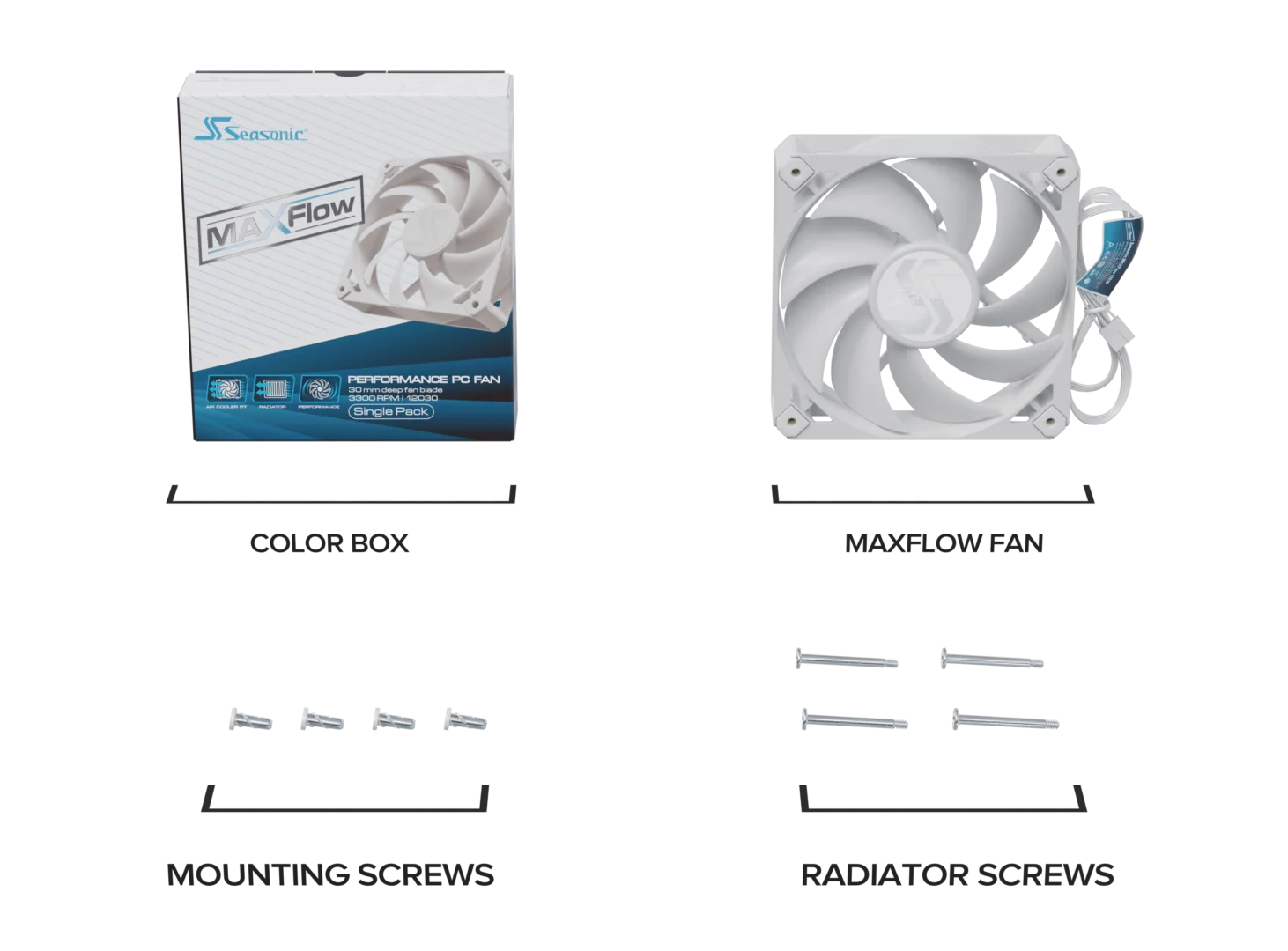

Packaging
- Each fan comes with two types of screws: shorter, standard screws for chassis installation and longer screws for air cooler installation.
- The three-fan kit includes an additional 3-to-1 PWM extension cable for motherboard connection*.
- Instead of printed materials, a QR code is provided to download all related product information.
* Installing Three Fans:
Due to the current limitations of some motherboards, using only the 3-to-1 PWM extension cable to connect three fans may prevent them from running at full speed simultaneously. In this case, it is recommended to connect two fans to the motherboard using the PWM cable, while the third fan can be connected directly to the motherboard with its own cable.
| Model Name | Seasonic MAXFlow 120 White (3-Fan Kit) |
|---|---|
| Part Number | 1YFNMFWRT3A10W 1YFNMFWUS3A10W (SSA Only) |
| Model Number | SF-12030MH-PH |
| Dimensions | 120 mm x 120 mm x 30 mm |
| Nominal Input Voltage | DC 12V |
| Operating Voltage | DC 9.5V~13.8V |
| Safety Current | 1 A |
| Rotational Speed | 3300±10% RPM |
| Acoustical Noise | 46.60 dB (A) (Max) |
| Air Flow | 154.85 CFM (Typ.) |
| Air Pressure | 8.5 mm-H2O (Typ.) |
| MTBF | 70,000 hours |
| Bearing Type | Dual Ball Bearing |
| Fan Weight | 187.70 g |
| Accessories | 12 x standard fan screws 12 x long radiator screws 1 x 3-to-1 PWM extension cable |
| Warranty | 5 years |
| Model Name | Seasonic MAXFlow 120 White(1-Fan Kit) |
|---|---|
| Model Number | SF-12030MH-PH |
| Part Number | 1YFNMFWRT1A10W 1YFNMFWUS1A10W (SSA Only) |
| Dimensions | 120 mm x 120 mm x 30 mm |
| Nominal Input Voltage | DC 12V |
| Operating Voltage | DC 9.5V~13.8V |
| Safety Current | 1 A |
| Rotational Speed | 3300±10% RPM |
| Acoustical Noise | 46.60 dB (A) (Max) |
| Air Flow | 154.85 CFM (Typ.) |
| Air Pressure | 8.5 mm-H2O (Typ.) |
| MTBF | 70,000 hours |
| Bearing Type | Dual Ball Bearing |
| Fan Weight | 187.70 g |
| Accessories | 4 x standard fan screws 4 x long radiator screws |
| Warranty | 5 years |
-
