Its ultra-high efficiency and outstanding performance are the fine results of Seasonic’s continuous commitment to innovation and advancement. Improved low-load efficiency, highly suppressed ripple noise and a generous 12-year manufacturer’s warranty are just some of the characteristics that set these series apart from other power supplies on the market.
80 PLUS® Gold
The PRIME Gold Series achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.
Micro Tolerance Load Regulation
Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.
Seasonics new PRIME Gold Series hits the sweet spot for a great balance of high quality components and high performance operation at a very attractive price point. (Read full review)
As we had expected, the Seasonic PRIME 1000W Gold power supply delivers very high quality power and technically there is very little to fault. (Read full review)
...it gave us outstanding build quality and design, simply AMAZING voltage regulation, excellent DC Output Quality, and excellent Transient Load Test results. (Read full review)
Premium Hybrid Fan control
Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art fan control that enables users to keep the overall fan noise at the lowest possible level.
Fluid Dynamic Fan Bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
How it works
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.

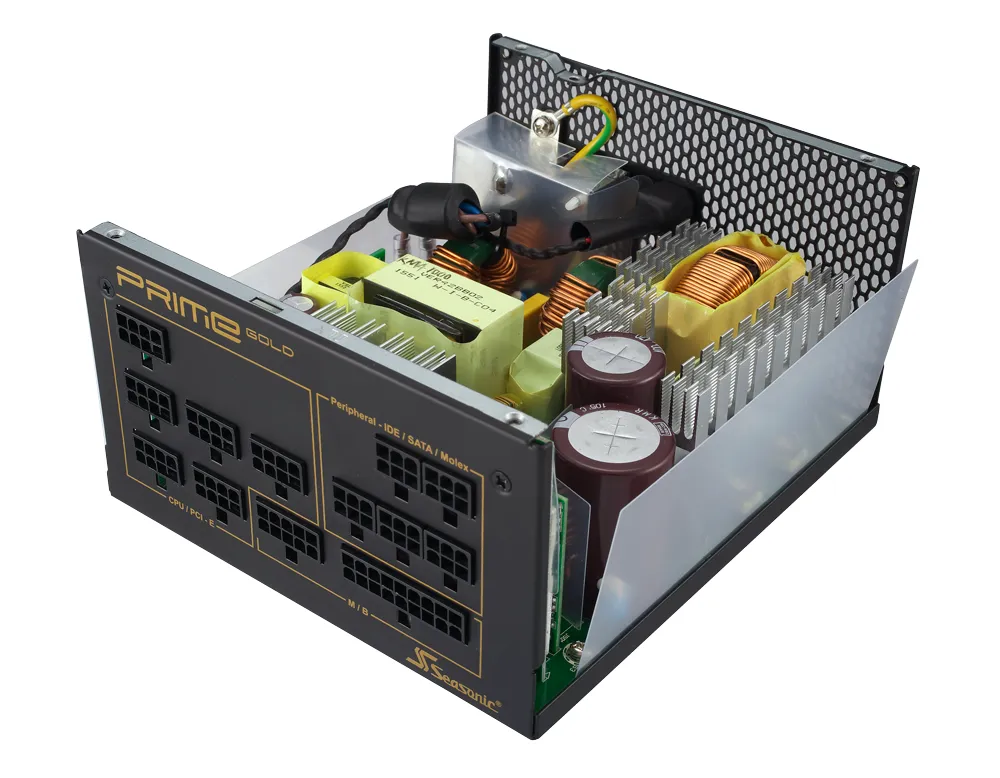

Cable-free Connection Design
Seasonic’s engineers have implemented a new design feature, where instead of cables; the back panel and the PCB (Printed Circuit Board) are connected by a copper plate. This breakthrough solution not only lowers the chance of production errors during manual insertion but it also improves output power quality.
- 80 PLUS® Gold certified
- Micro Tolerance Load Regulation (0.5 %)
- Cable-free Connection Design
- Premium Hybrid Fan Control - Fanless until 40 % load
- Multi-GPU setup
- Gold plated connectors
- 12 years warranty
|Cybenetics Efficiency Level||ETA-A (View report)|
|Cybenetics Noise Level||LAMBDA-S (View report)|
|Form Factor||Intel ATX 12 V|
|Dimensions||170 mm (W) x 150 mm (L) x 86 mm (H)|
|Fan Information||Fan Size||135 mm|
|Fan Control||Premium Hybrid Fan Control|
|Fan Bearing||Fluid Dynamic Bearing|
|Life Expectancy||50,000 hours at 40 °C, 15 % - 65 % RH|
|Cable Information||Modularity||Fully Modular|
|Cable type||Flat black cables|
|Electrical Features||Operating Temperature||0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)|
|MTBF @ 25 °C, excl. fan||150,000 hours|
|AC Input||Full Range|
|Protection||OPP, OVP, UVP, OCP, OTP, SCP|
|Safety and Environmental||Safety and EMC||cTUVus, TUV, CB, CCC, BSMI, EAC, CE|
|Environmental Compliance||Energy Star, RoHS, WEEE, ErP Lot 6, REACH|
|AC Input||Voltage: 100 V - 240 V|
|Current: 13 - 6.5 A|
|Frequency: 50 Hz - 60 Hz|
|DC Output||Rail||+3.3 V||+5 V||+12 V||-12 V||+5 VSB|
|Maximum Power||25 A||25 A||83 A||0.3 A||3 A|
|125 W||996 W||3.6 W||15 W|
|Total continuous power||1000 W|
|Main Power (24/20 pins)||1|
|CPU (8/4 pins)||2|
|PCIe (8/6 pins)||8|
Specifications are subject to change without prior notice.
