SYNCRO PSU
One Clean Solution
SYNCRO PSU

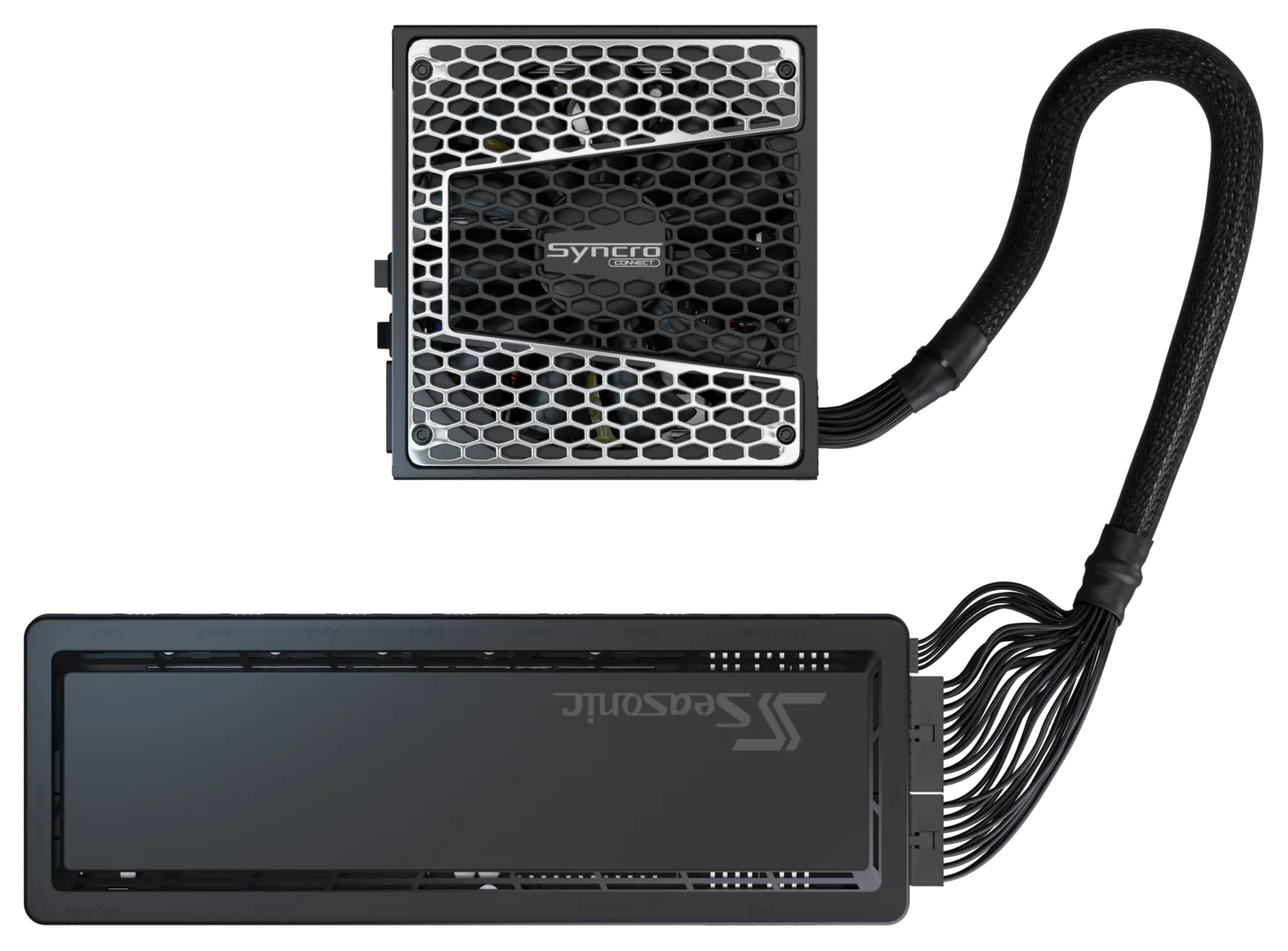

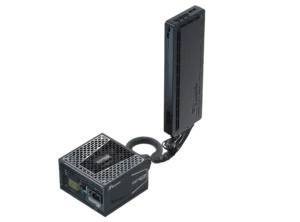

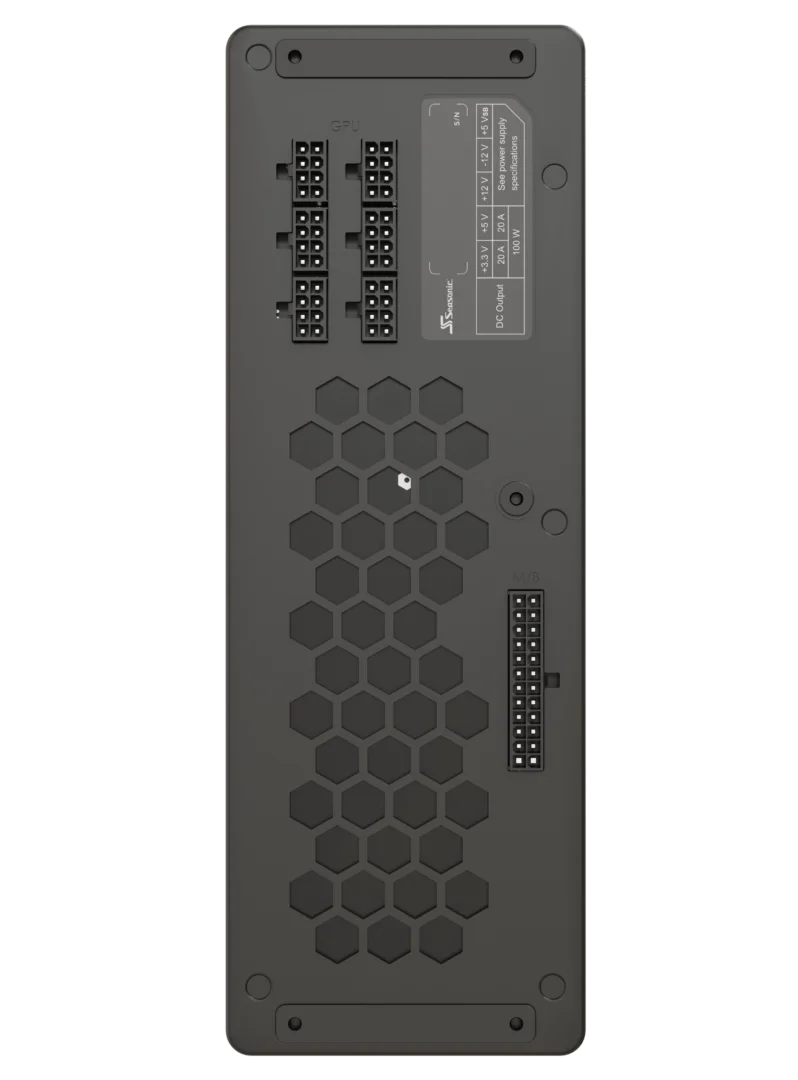

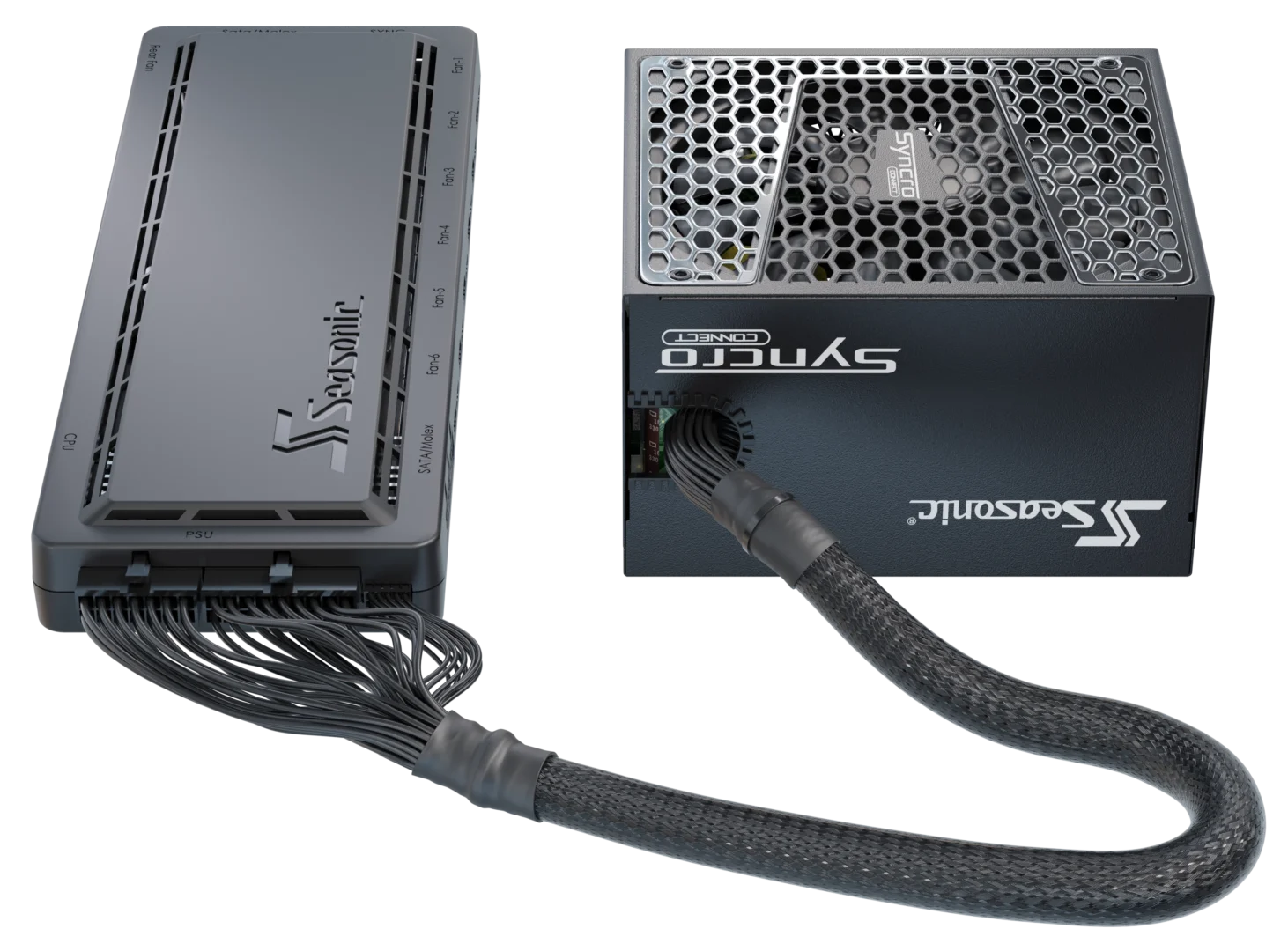

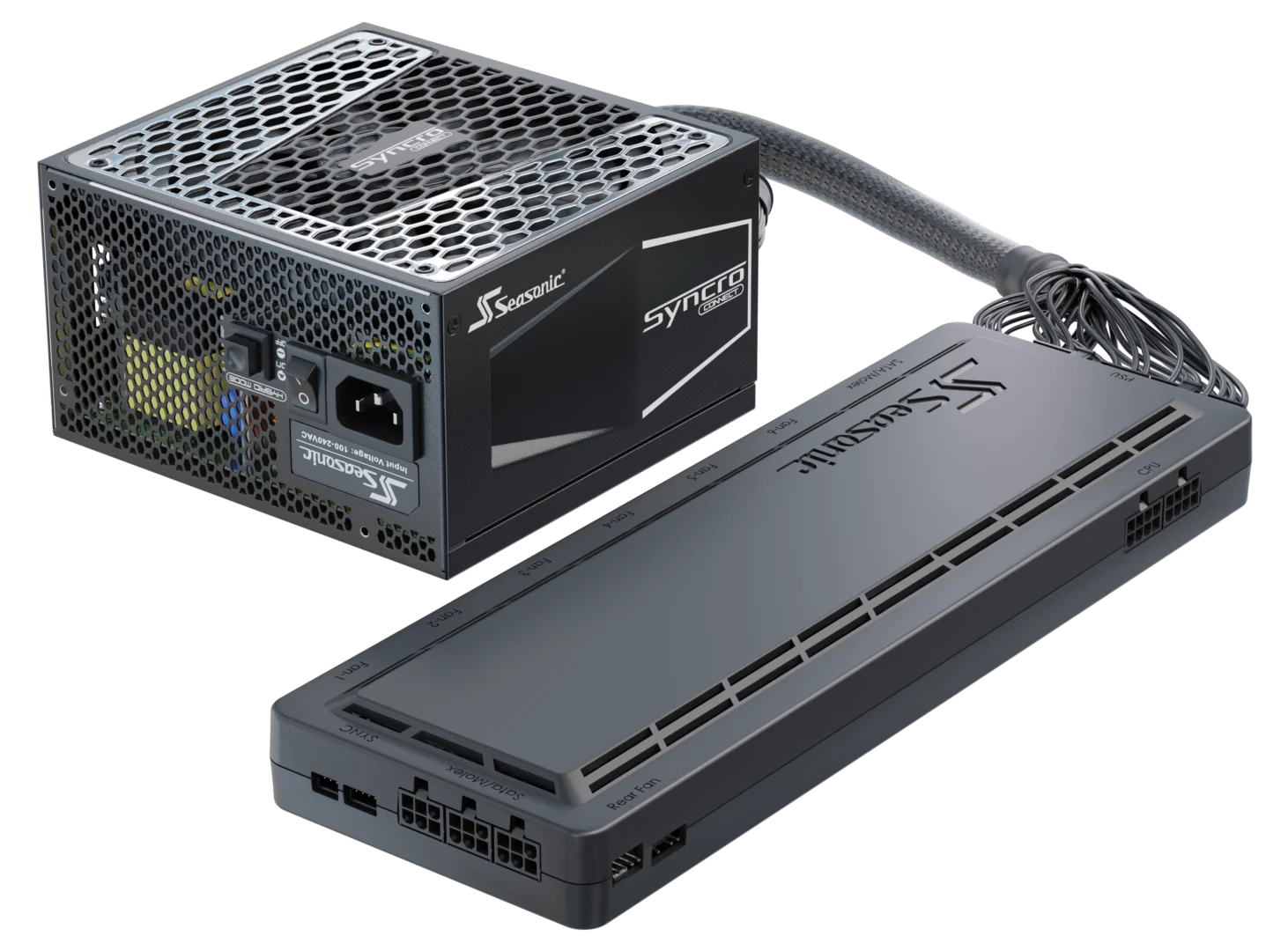

The SYNCRO CONNECT boasts a novel aesthetic and functional upgrade to the usual characteristics of a PC power supply. It is comprised of two linked products, featuring a visually pleasing CONNECT module and a Seasonic SYNCRO power supply. The CONNECT module doesn’t compromise on any of the typically top-level features of high quality Seasonic power supplies, as it naturally comes with fully modular cables for custom installation, as well-known Seasonic energy-efficient S3FC technology for optimized cooling and quiet operation. The design idea is a first step towards a plethora of future possibilities on the way to an entirely reimagined PC interior.
In North America, the SYNCRO power supply plus CONNECT Module set is sold under a separate listing from the SYNCRO Q704 PC chassis.
In the EU and the UK, the SYNCRO Power Supply plus CONNECT Module is sold together with the SYNCRO Q704 case as a bundle.
-
The SYNCRO DPC-850 achieves 80 PLUS® Platinum certification with its 92 % efficiency at 50 % system load.80 PLUS® Platinum Certified
-
Warranty
10 Years
-
Cabling
Fully Modular
-
140 mm (L) x 150 mm (W) x 86 mm (H)
PSU Dimensions
-
300 mm (L) x 105 mm (W) x 33 mm (H)
CONNECT Dimensions
-
80 PLUS® Gold Certified
The SYNCRO DGC-750 and DGC-650 achieve 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load. -
10 Years
Warranty -
Fully Modular
Cabling -
PSU Dimensions
140 mm (L) x 150 mm (W) x 86 mm (H) -
CONNECT Dimensions
300 mm (L) x 105 mm (W) x 33 mm (H)
-
80 PLUS® Gold Certified
The SYNCRO DGC-750 and DGC-650 achieve 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load. -
10 Years
Warranty -
Fully Modular
Cabling -
PSU Dimensions
140 mm (L) x 150 mm (W) x 86 mm (H) -
CONNECT Dimensions
300 mm (L) x 105 mm (W) x 33 mm (H)
80 PLUS® Platinum Certified
The SYNCRO DPC-850 achieves 80 PLUS® Platinum certification with its 92 % efficiency at 50 % system load.
10 Years
Warranty
Fully Modular
Cabling
PSU Dimensions
140 mm (L) x 150 mm (W) x 86 mm (H)
CONNECT Dimensions
300 mm (L) x 105 mm (W) x 33 mm (H)
80 PLUS® Gold Certified
The SYNCRO DGC-750 and DGC-650 achieve 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.
10 Years
Warranty
Fully Modular
Cabling
PSU Dimensions
140 mm (L) x 150 mm (W) x 86 mm (H)
CONNECT Dimensions
300 mm (L) x 105 mm (W) x 33 mm (H)
80 PLUS® Gold Certified
The SYNCRO DGC-750 and DGC-650 achieve 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.
10 Years
Warranty
Fully Modular
Cabling
PSU Dimensions
140 mm (L) x 150 mm (W) x 86 mm (H)
CONNECT Dimensions
300 mm (L) x 105 mm (W) x 33 mm (H)
ONE CLEAN SOLUTION

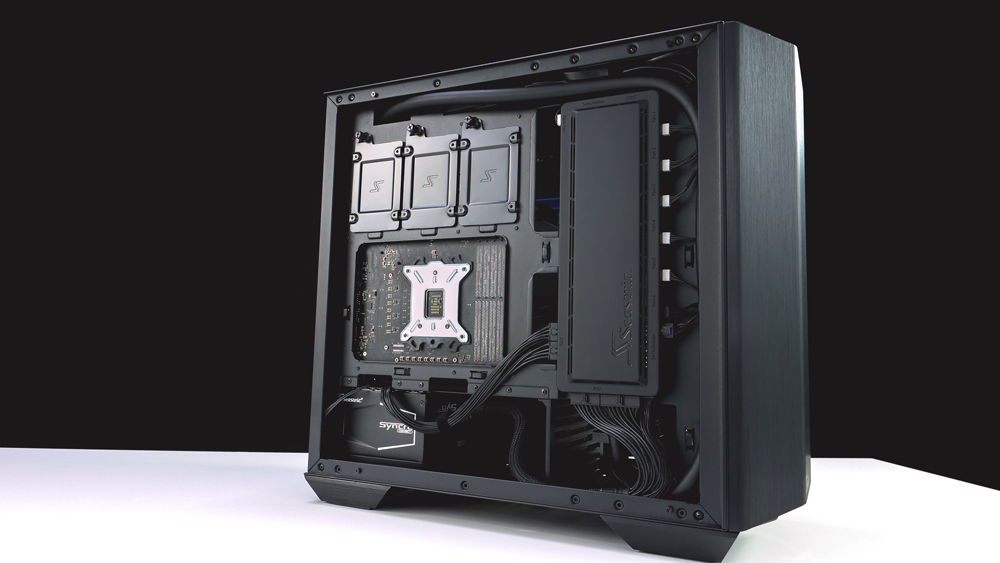

Advances in the design of increasingly powerful PC hardware made heat and cable management inside cases more important. One way to increase setup and airflow efficiency was to redesign the way power is delivered inside the PC. Seasonic’s SYNCRO CONNECT provides a revolutionary way of power supply integration, cable management and airflow enhancement. The SYNCRO’s unique power distribution system brings the backplane closer to the components, resulting in shorter connection cables with less clutter. By freeing up internal space inside the case there is more room for air to circulate around the components to dissipate heat.
SYNCRO CONNECT FAN SETUP GUIDE
Gallery
850 W
750 W
650 W
0 /
0
0 /
0
0 /
0
Specifications
850 W
750 W
650 W
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Platinum | |
| Cybenetics Efficiency Level | TBA | |
| Cybenetics Noise Level | TBA | |
| Form Factor | ATX/EPS | |
| Dimensions | 140 × 150 × 86 mm | |
| Fan Information | Fan Size | 135 mm |
| Fan Control | Premium Hybrid Fan Control | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH | |
| Cable Information | Modularity | Fully Modular |
| Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly) |
| MTBF @ 25 °C, excl. fan | 150,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 10 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | 100 V - 240 V | |||||
| 11 - 5.5 A | ||||||
| 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 20 A | 20 A | 70 A | 0.3 A | 3 A | |
| 100 W | 840 W | 3.6 W | 15 W | |||
| Total continuous power | 850 W | |||||
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Gold | |
| Cybenetics Efficiency Level | TBA | |
| Cybenetics Noise Level | TBA | |
| Form Factor | ATX/EPS | |
| Dimensions | 140 × 150 × 86 mm | |
| Fan Information | Fan Size | 135 mm |
| Fan Control | Premium Hybrid Fan Control | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH | |
| Cable Information | Modularity | Fully Modular |
| Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly) |
| MTBF @ 25 °C, excl. fan | 150,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 10 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | 100 V - 240 V | |||||
| 10 - 5 A | ||||||
| 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 20 A | 20 A | 62 A | 0.3 A | 3 A | |
| 100 W | 744 W | 3.6 W | 15 W | |||
| Total continuous power | 750 W | |||||
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Gold | |
| Cybenetics Efficiency Level | TBA | |
| Cybenetics Noise Level | TBA | |
| Form Factor | ATX/EPS | |
| Dimensions | 140 × 150 × 86 mm | |
| Fan Information | Fan Size | 135 mm |
| Fan Control | Premium Hybrid Fan Control | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH | |
| Cable Information | Modularity | Fully Modular |
| Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly) |
| MTBF @ 25 °C, excl. fan | 150,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 10 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | 100 V - 240 V | |||||
| 10 - 5 A | ||||||
| 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 20 A | 20 A | 54 A | 0.3 A | 3 A | |
| 100 W | 648 W | 3.6 W | 15 W | |||
| Total continuous power | 650 W | |||||
Cables
850 W
750 W
650 W
140 mm
MB (24/20 pins)
1 connector
1 cable
360 mm
CPU (8/4 pins)
1 connector
2 cables
300 mm
PCIe (8/6 pins)
1 connector
2 cables
200 mm
PCIe (8/6 pins)
1 connector
2 cables
545 mm
SATA
3 connectors
1 cable
305 mm
SATA
2 connectors
1 cable
690 mm
Molex
3 connectors
1 cable
750 mm
PWM Sync
1 connector
1 cable
550 mm
PWM Sync
1 connector
1 cable
350 mm
PWM Sync
1 connector
1 cable
750 mm
ARGB Sync
1 connector
1 cable
550 mm
ARGB Sync
1 connector
1 cable
350 mm
ARGB Sync
1 connector
1 cable
140 mm
MB (24/20 pins)
1 connector
1 cable
360 mm
CPU (8/4 pins)
1 connector
2 cables
300 mm
PCIe (8/6 pins)
1 connector
2 cables
200 mm
PCIe (8/6 pins)
1 connector
2 cables
545 mm
SATA
3 connectors
1 cable
305 mm
SATA
2 connectors
1 cable
690 mm
Molex
3 connectors
1 cable
750 mm
PWM Sync
1 connector
1 cable
550 mm
PWM Sync
1 connector
1 cable
350 mm
PWM Sync
1 connector
1 cable
750 mm
ARGB Sync
1 connector
1 cable
550 mm
ARGB Sync
1 connector
1 cable
350 mm
ARGB Sync
1 connector
1 cable
140 mm
MB (24/20 pins)
1 connector
1 cable
360 mm
CPU (8/4 pins)
1 connector
2 cables
300 mm
PCIe (8/6 pins)
1 connector
2 cables
200 mm
PCIe (8/6 pins)
1 connector
2 cables
545 mm
SATA
3 connectors
1 cable
305 mm
SATA
2 connectors
1 cable
690 mm
Molex
3 connectors
1 cable
750 mm
PWM Sync
1 connector
1 cable
550 mm
PWM Sync
1 connector
1 cable
350 mm
PWM Sync
1 connector
1 cable
750 mm
ARGB Sync
1 connector
1 cable
550 mm
ARGB Sync
1 connector
1 cable
350 mm
ARGB Sync
1 connector
1 cable
-
